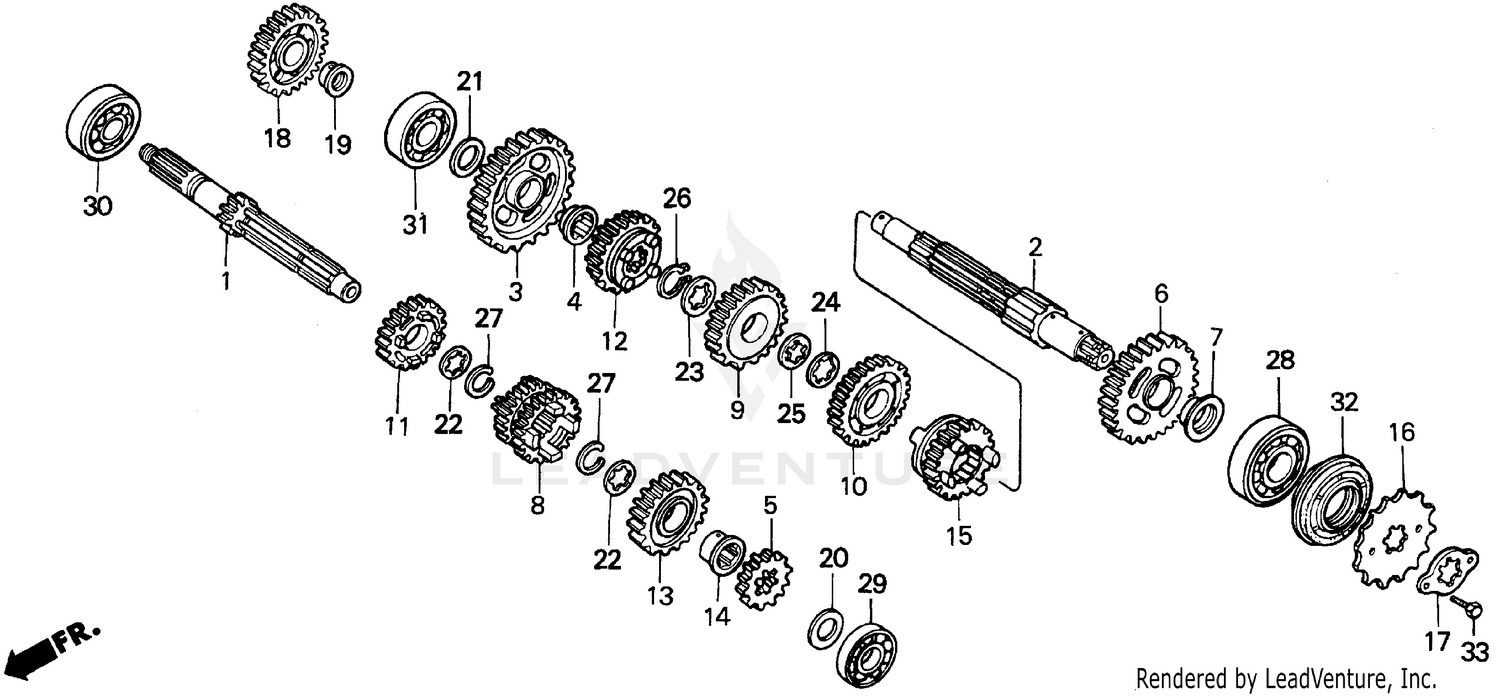

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (13T)
23211-KV6-000
|
$155.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT, TRANSMISSION
23220-KV6-000
|
$147.05 | ||
|
Unavailable |
|||
|
#3
GEAR, COUNTERSHAFT LOW (36T)
23411-KK1-000
|
$156.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH (18MM)
23412-KK0-000
|
$26.59 | ||
|
Unavailable |
|||
|
#5
GEAR, MAINSHAFT SECOND (17T)
23421-KK0-770
|
$50.89 | ||
|
Unavailable |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (33T)
23431-KK1-000
|
$132.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR (22MM)
23432-KK0-000
|
$27.51 | ||
|
Unavailable |
|||
|
#8
GEAR, MAINSHAFT THIRD & FOURTH (23T/20T)
23441-KL4-000
|
$201.92 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, COUNTERSHAFT THIRD (29T)
23451-KL4-000
|
$98.83 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, COUNTERSHAFT FOURTH (26T)
23471-KL4-010
|
$80.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, MAINSHAFT FIFTH (26T)
23481-KL4-000
|
$125.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, COUNTERSHAFT FIFTH (24T)
23491-KL4-000
|
$156.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, MAINSHAFT SIXTH (28T)
23501-KL4-770
|
$96.23 | ||
|
Unavailable |
|||
|
#14
COLLAR, SPLINE (23MM)
23505-KL4-000
|
$20.52 | ||
|
Unavailable |
|||
|
#15
GEAR, COUNTERSHAFT SIXTH (22T)
23511-KV6-000
|
$121.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPROCKET, DRIVE (13T)
23801-KK1-010
|
$46.71 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE A2, FIXING
23811-KR3-600
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, KICK STARTER IDLE (23T)
28221-KK0-010
|
$77.85 | ||
|
Unavailable |
|||
|
#19
BUSH (15MM)
28222-KK0-000
|
$41.78 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, THRUST (15MM)
90451-107-000
|
$1.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER, THRUST (17MM)
90454-KF0-000
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER A, SPLINE (20MM)
90455-107-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, COUNTERSHAFT THIRD SPLINE
90464-360-000
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPLINE (22MM)
90464-444-000
|
$6.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, LOCK (SOURCE: VINTAGE PARTS INC.)
90465-KE1-000
Superseded by 90465-KE1-010
|
$4.24 | ||
|
Unavailable |
|||
|
#25
WASHER, LOCK
90465-KE1-010
|
$4.24 | ||
|
Unavailable |
|||
|
#26
CIRCLIP (OUTER) (22MM)
90601-437-000
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#27
SET-RING (20MM)
90605-200-000
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, BALL (62/22) (KOYO)
91004-KW3-004
|
$38.07 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, BALL (6202) (TOYO)
91005-KK0-003
|
$44.96 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING, BALL (6204) (TOYO)
91006-KK0-003
|
$30.52 | ||
|
Unavailable |
|||
|
#31
BEARING, RADIAL BALL (17X42X12) (NTN CORP.)
91007-KK0-000
|
$33.11 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL (20X36X8) (NOK)
91201-KK1-641
|
$9.05 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, HEX. (6X10)
92101-06010-0A
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
