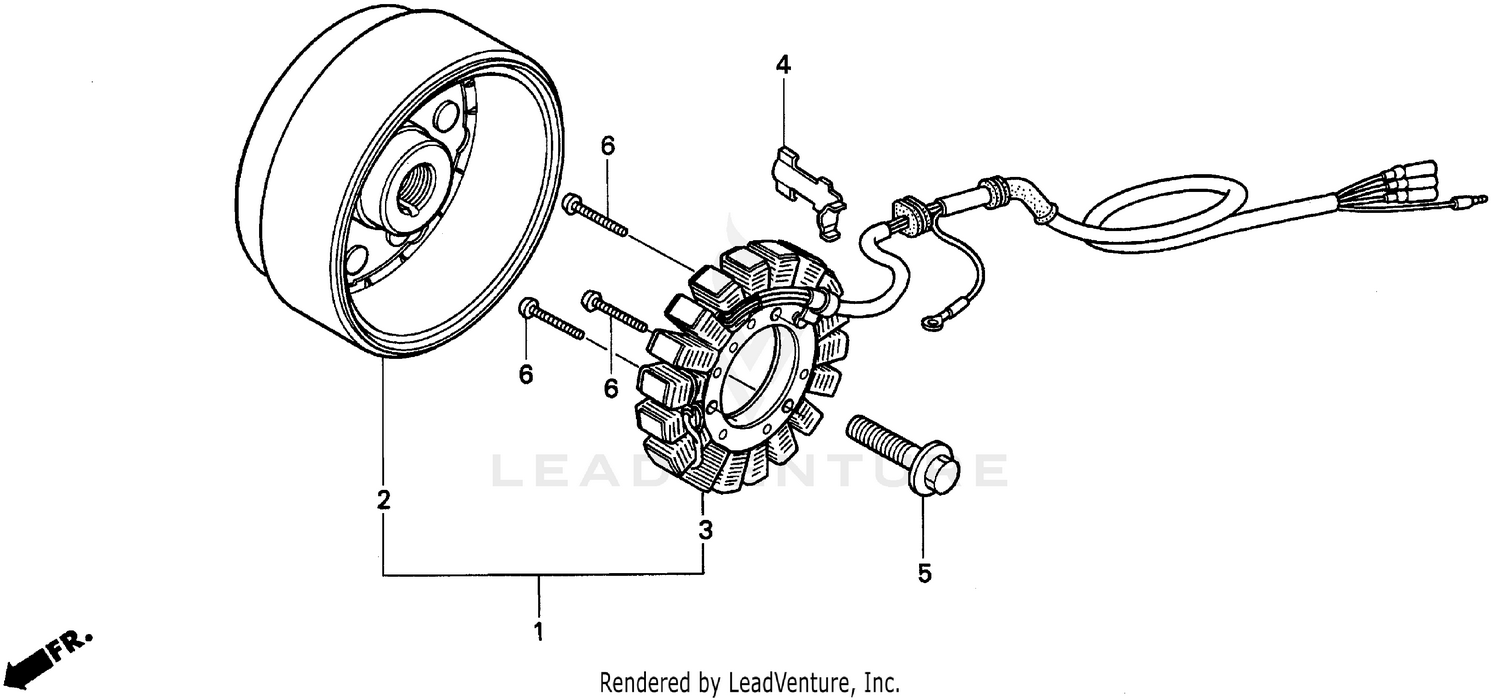

Alternator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ALTERNATOR ASSY., FLYWHEEL TYPE
31100-KV6-671
|
$704.37 | ||
|
Unavailable |
|||
|
#2
FLYWHEEL (DENSO)
31110-KV6-671
|
$475.43 | ||
|
Available to order. Add to View Price |
|||
|
#3
STATOR (DENSO)
31120-KV6-671
|
$345.06 | ||
|
Unavailable |
|||
|
#4
CLAMP, CABLE
32111-KK0-000
|
$5.37 | ||
|
Unavailable |
|||
|
#5
BOLT, FLANGE (12X50)
90023-471-000
|
$15.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, STOPPER TENSIONER SHAFT
90092-KE5-000
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
