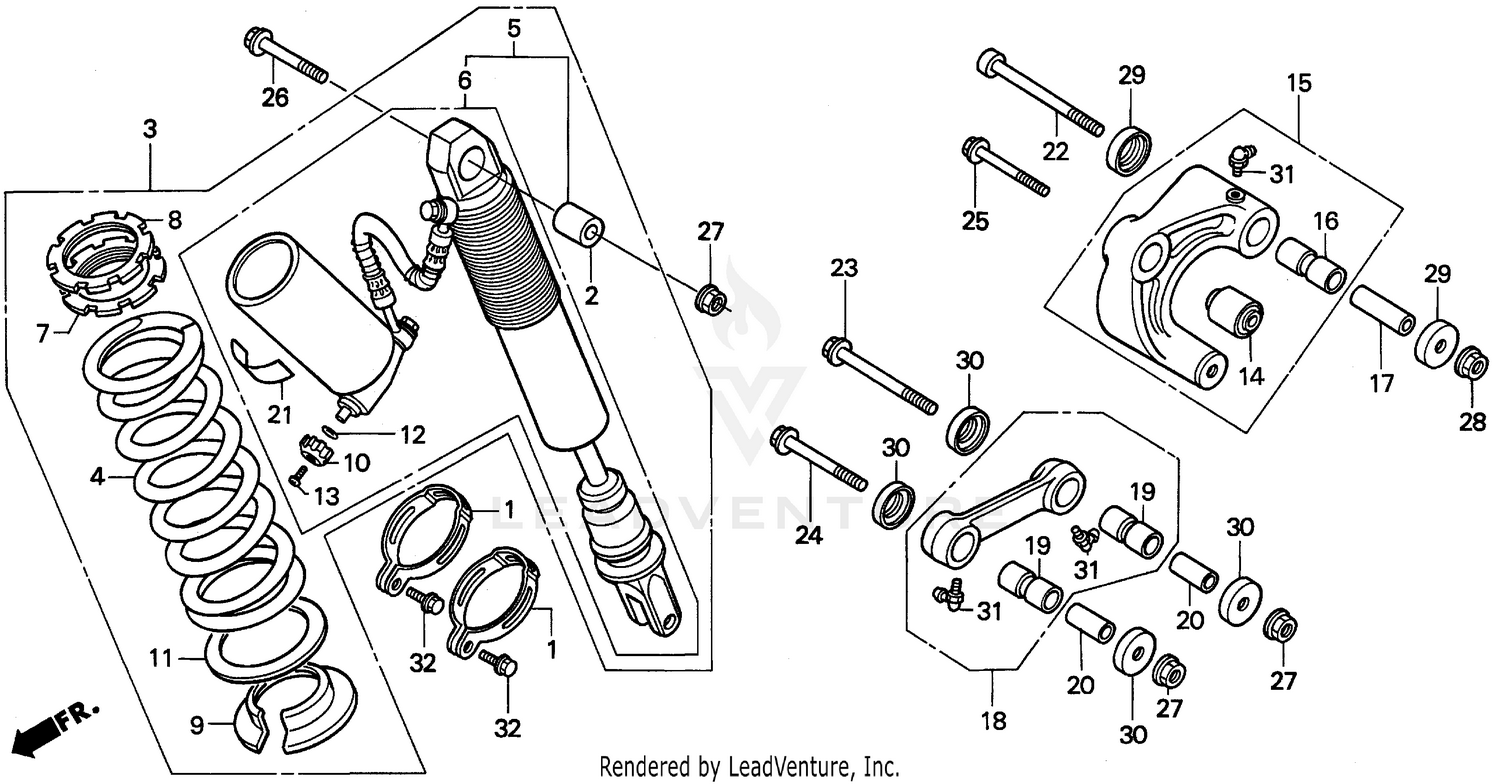

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAND, SUB-TANK
50252-KT1-670
|
$16.65 | ||
|
Unavailable |
|||
|
#2
COLLAR, FR. SHOCK ABSORBER (LOWER)
51486-HC0-004
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHOCK ABSORBER ASSY., RR. (KAYABA)
52400-KV6-671
|
$1,107.15 | ||
|
Unavailable |
|||
|
#4
SPRING, RR. SHOCK ABSORBER (KAYABA)
52401-KV6-671
|
$102.43 | ||
|
Unavailable |
|||
|
#5
DAMPER SET, RR.
52409-KV6-305
|
$689.61 | ||
|
Unavailable |
|||
|
#7
SEAT, SPRING (UPPER) (KAYABA)
52422-KS6-004
|
$27.60 | ||
|
Unavailable |
|||
|
#8
NUT, ADJUSTER (KAYABA)
52423-KS6-004
|
$21.62 | ||
|
Unavailable |
|||
|
#9
SEAT, SPRING (LOWER) (KAYABA)
52424-KS6-701
|
$15.14 | ||
|
Unavailable |
|||
|
#10
DIAL, SUB-TANK
52433-KK0-004
|
$10.40 | ||
|
Unavailable |
|||
|
#11
WASHER, SPRING SEAT (KAYABA)
52445-KA3-831
|
$14.58 | ||
|
Unavailable |
|||
|
#12
O-RING (2.4X10.8)
52447-KA3-731
|
$2.10 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN (3X8)
52448-KS6-004
|
$2.57 | ||
|
Unavailable |
|||
|
#14
BUSH, SHOCK ABSORBER (LOWER)
52451-MA0-000
|
$18.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
ARM ASSY., SHOCK ABSORBER
52460-KV6-000
|
$317.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSH, CUSHION ARM
52462-KF0-003
|
$29.59 | ||
|
Unavailable |
|||
|
#17
COLLAR, CUSHION ARM PIVOT
52463-KF0-000
|
$18.48 | ||
|
Unavailable |
|||
|
#18
ROD ASSY., RUBBER CONNECTING
52470-KR6-000
|
$238.32 | ||
|
Available to order. Add to View Price |
|||
|
#19
BUSH, RUBBER CONNECTING ROD
52472-MA0-013
|
$35.71 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR, CONNECTING ROD PIVOT
52473-MA0-010
Superseded by 52473-MA0-020
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR, CONNECTING ROD PIVOT
52473-MA0-020
|
$20.22 | ||
|
Unavailable |
|||
|
#21
LABEL, RR. DAMPER WARNING
87516-KV6-671
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SOCKET (12X97)
90128-KR6-000
|
$13.04 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (10X77)
90129-KF0-000
|
$18.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (10X69)
90151-KF0-000
Superseded by 90151-KV6-910
|
$13.38 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (10X48)
90153-KA3-730
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (10X43)
90153-MC4-003
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, U (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
NUT, FLANGE (12MM)
90306-KF0-003
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
SEAL, CUSHION ARM PIVOT (ARAI)
91261-KA3-711
Superseded by 91262-KR8-750
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#29
SEAL, CUSHION ARM PIVOT (ARAI)
91261-KA3-712
Superseded by 91262-KR8-750
|
$13.25 | ||
|
Unavailable |
|||
|
#30
SEAL, RUBBER CONNECTING ROD PIVOT (ARAI)
91262-KA3-711
Superseded by 91262-KA3-712
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#30
SEAL, RUBBER CONNECTING ROD PIVOT (ARAI)
91262-KA3-712
|
$14.09 | ||
|
Unavailable |
|||
|
#31
FITTING, GREASE (B.76S)
96201-80000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X28)
96300-06028-00
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X28)
96500-06028-00
Superseded by 96300-06028-00
|
$1.69 | ||
|
Unavailable |
|||
