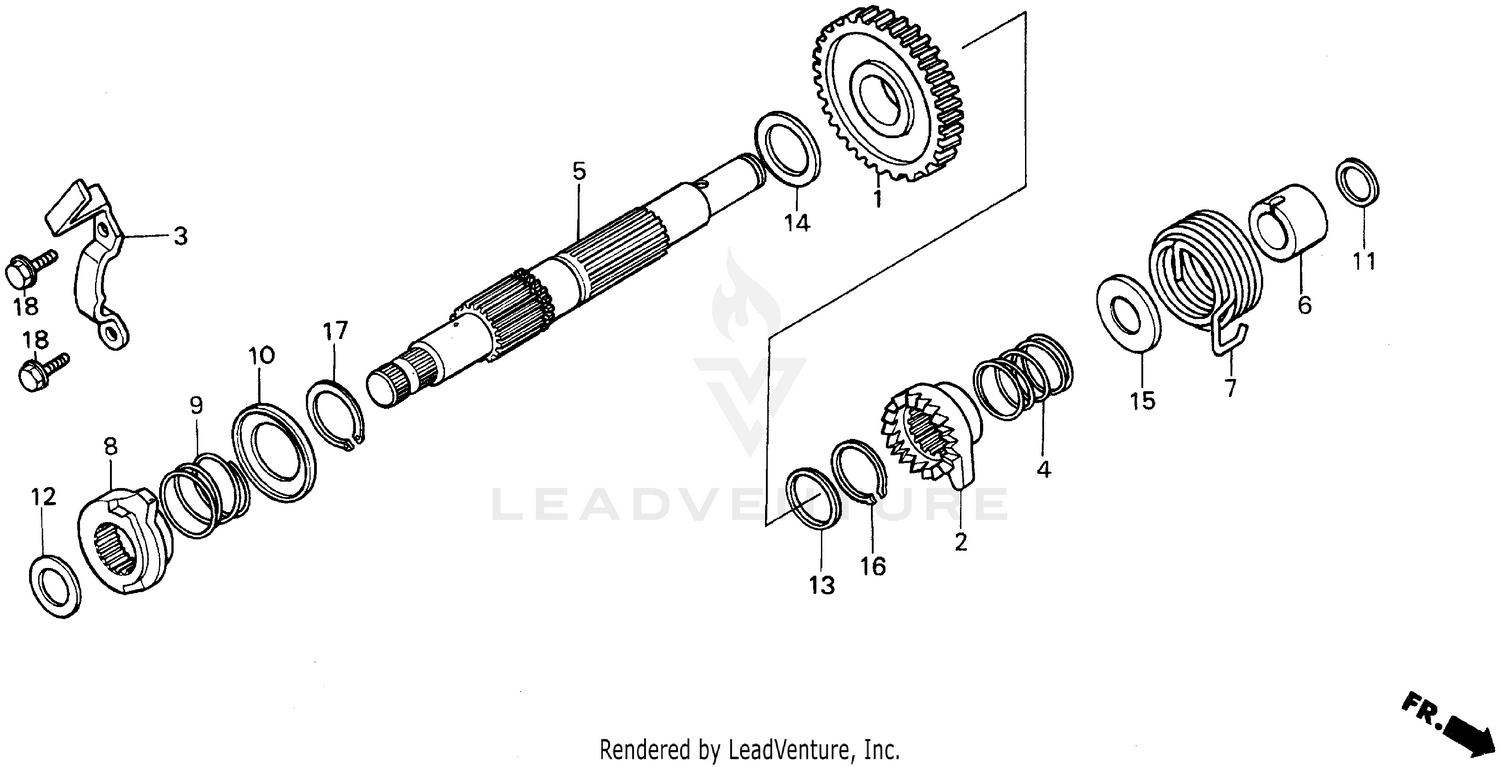

Kick Starter Spindle Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PINION, KICK STARTER (22T)
28211-KK0-010
|
$186.58 | ||
|
Unavailable |
|||
|
#2
RATCHET, KICK STARTER
28213-KK0-000
|
$53.08 | ||
|
Unavailable |
|||
|
#3
PLATE, KICK STOPPER
28215-KK0-000
|
$13.78 | ||
|
Unavailable |
|||
|
#4
SPRING, KICK STARTER RATCHET
28223-KK0-000
|
$5.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPINDLE, KICK STARTER
28250-KK0-010
|
$136.62 | ||
|
Unavailable |
|||
|
#6
COLLAR, KICK STARTER
28255-KK0-000
|
$9.12 | ||
|
Unavailable |
|||
|
#7
SPRING, KICK STARTER
28261-KK0-000
|
$13.60 | ||
|
Unavailable |
|||
|
#8
CAM, KICK SHAFT
28272-KK0-000
|
$57.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, CAM RESET
28283-428-000
|
$3.05 | ||
|
Unavailable |
|||
|
#10
SEAT, CAM RESET SPRING
28284-428-000
|
$3.78 | ||
|
Unavailable |
|||
|
#11
WASHER B, THRUST (14MM)
90428-958-000
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, THRUST (18MM)
90452-701-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, THRUST (22MM)
90453-428-000
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, THRUST (22MM)
90456-323-000
|
$3.71 | ||
|
Unavailable |
|||
|
#15
WASHER, KICK RATCHET SPRING
90501-KK0-000
Superseded by 90501-KF0-000
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP (OUTER) (22MM)
90601-329-000
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP (OUTER) (24MM)
94510-24000
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
