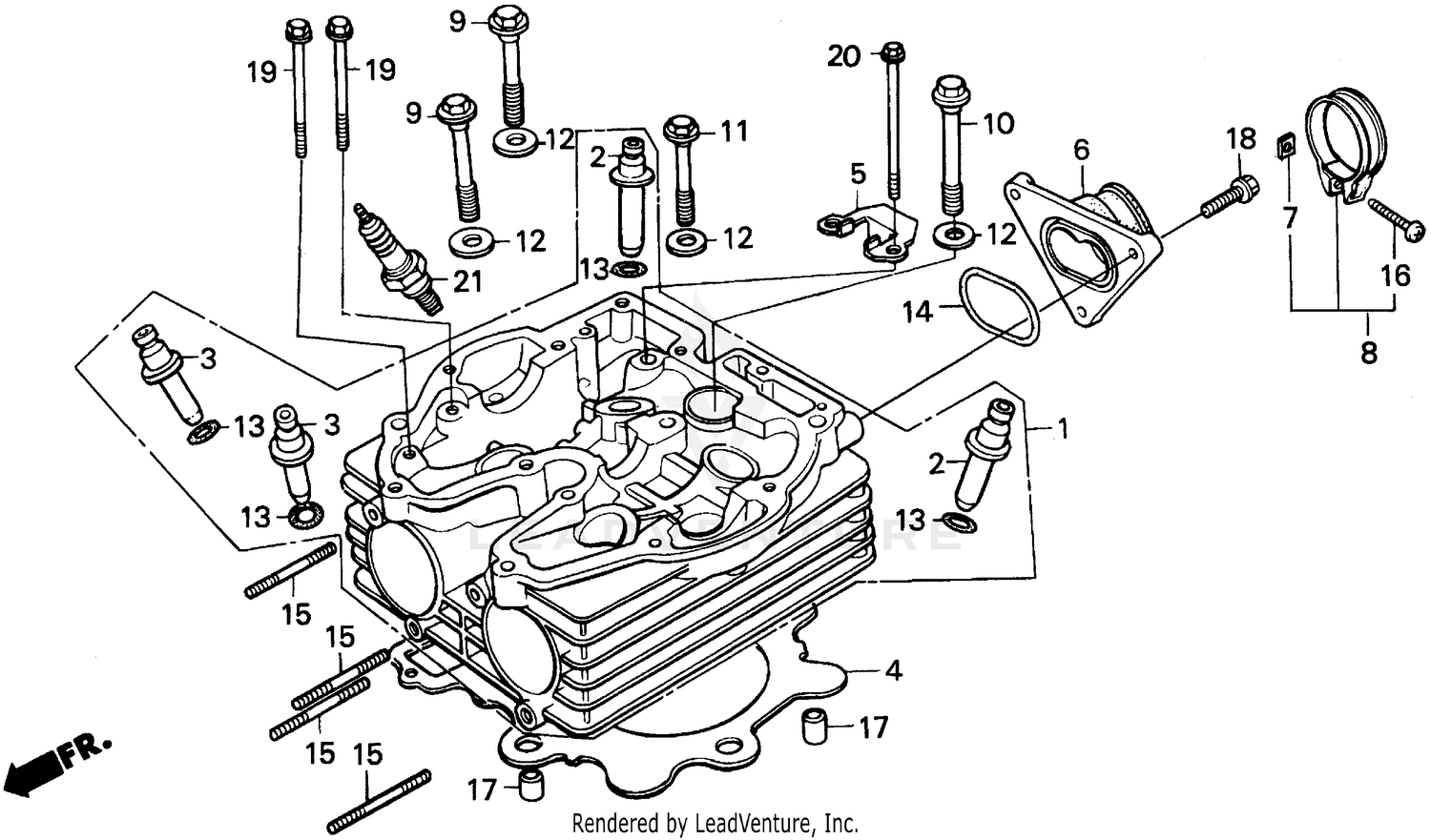

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD
12200-KT1-780
|
$556.83 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE
12231-KK0-305
|
$19.97 | ||
|
Unavailable |
|||
|
#3
GUIDE, EX. VALVE
12241-KK0-305
|
$24.08 | ||
|
Unavailable |
|||
|
#4
GASKET, CYLINDER HEAD
12251-KV6-003
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, TENSIONER SETTING
14515-KK0-010
|
$15.63 | ||
|
Unavailable |
|||
|
#6
INSULATOR, CARBURETOR
16211-KT1-013
|
$56.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, INSULATOR
16223-KS5-000
|
$17.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (10X81)
90081-KK0-000
|
$14.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (10X100)
90081-KR0-000
|
$15.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (10X72)
90082-KK0-000
|
$13.91 | ||
|
Unavailable |
|||
|
#12
WASHER (10MM)
90410-KR0-000
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (10X1.6)
91301-200-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING, CARBURETOR INSULATOR
91302-KR0-003
|
$14.16 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD (6X28)
90038-250-000
Superseded by 92900-06028-0B
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD (6X28)
90051-200-000
Superseded by 92900-06028-0B
|
$1.97 | ||
|
Unavailable |
|||
|
#15
BOLT, STUD (6X28)
92700-06035-0B
Superseded by 92900-06028-0B
|
$1.97 | ||
|
Unavailable |
|||
|
#15
BOLT, STUD (6X28)
92700-06040
Superseded by 92900-06028-0B
|
$1.97 | ||
|
Unavailable |
|||
|
#15
BOLT, STUD (6X28)
92700-06040-0B
Superseded by 92900-06028-0B
|
$1.97 | ||
|
Unavailable |
|||
|
#15
BOLT, STUD (6X28)
92900-06028-0B
|
$1.97 | ||
|
Unavailable |
|||
|
#15
BOLT, STUD (6X28)
92900-06028-08
Superseded by 92900-06028-0B
|
$1.97 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN (5X30)
93500-05030-0G
|
$3.78 | ||
|
Unavailable |
|||
|
#17
PIN A, DOWEL (12X20)
94301-12200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X22)
95701-06022-07
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X80)
96001-06080-00
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X90)
96001-06090-00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPARK PLUG (DPR7Z) (NGK)
98061-57616
|
$3.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SPARK PLUG (X22GPR-U) (DENSO)
98061-57626
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPARK PLUG (DPR8Z) (NGK)
98061-58616
|
$3.92 | ||
|
Unavailable |
|||
|
#21
SPARK PLUG (X24GPR-U) (DENSO)
98061-58626
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPARK PLUG (DPR9Z) (NGK)
98061-59616
|
$3.92 | ||
|
Unavailable |
|||
|
#21
SPARK PLUG (X27GPR-U) (DENSO)
98061-59626
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
