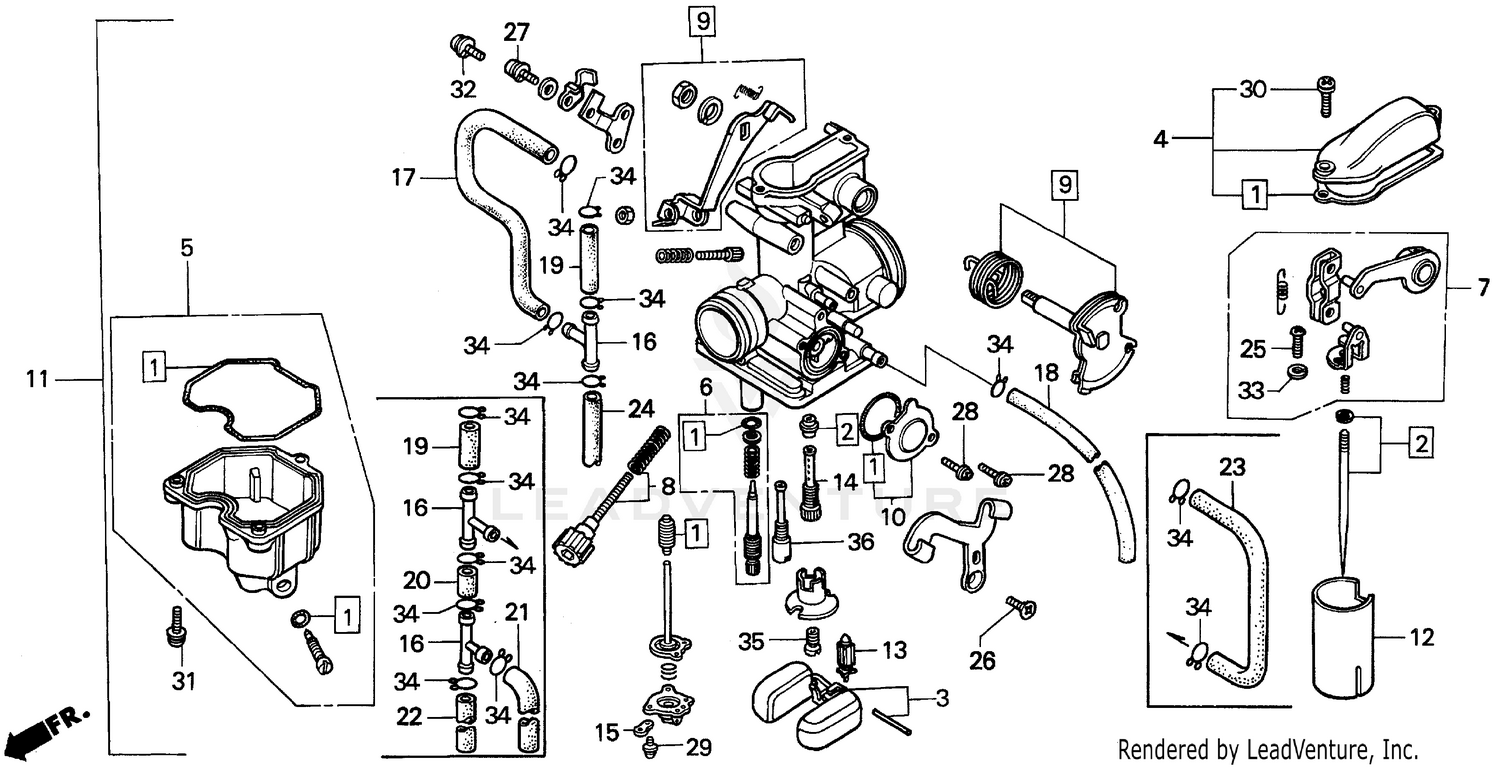

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-KR6-004
Superseded by 16010-KR6-305
|
$30.82 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET SET
16010-KR6-305
|
$30.82 | ||
|
Unavailable |
|||
|
#2
NEEDLE SET, JET (NOT AVAILABLE)
16012-KV6-671
|
$31.46 | ||
|
Unavailable |
|||
|
#3
FLOAT SET
16013-439-921
|
$92.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
TOP SET
16014-KCE-771
|
$27.21 | ||
|
Unavailable |
|||
|
#4
TOP SET
16014-KR6-004
Superseded by 16014-KCE-771
|
$27.21 | ||
|
Unavailable |
|||
|
#5
CHAMBER SET, FLOAT
16015-428-771
|
$177.94 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW SET A
16016-KC2-970
|
$30.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW SET A
16016-383-871
Superseded by 16016-KC2-970
|
$30.71 | ||
|
Unavailable |
|||
|
#6
SCREW SET A
16016-413-751
Superseded by 16016-KC2-970
|
$30.71 | ||
|
Unavailable |
|||
|
#7
ARM SET, LINK
16018-471-014
|
$90.61 | ||
|
Unavailable |
|||
|
#8
SCREW SET B
16028-KN5-671
|
$12.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
LINK SET, THROTTLE
16032-KV6-004
|
$100.03 | ||
|
Unavailable |
|||
|
#10
GASKET B SET
16040-460-004
|
$16.39 | ||
|
Available to order. Add to View Price |
|||
|
#11
CARBURETOR ASSY. (PD79E A)
16100-KV6-671
|
$422.87 | ||
|
Unavailable |
|||
|
#12
VALVE, THROTTLE
16111-KV6-670
|
$44.79 | ||
|
Unavailable |
|||
|
#13
VALVE, FLOAT
16155-413-751
|
$39.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
HOLDER, NEEDLE JET
16165-473-004
|
$35.72 | ||
|
Unavailable |
|||
|
#15
BINDER
16179-428-671
|
$9.18 | ||
|
Unavailable |
|||
|
#16
JOINT (T-TYPE)
16180-195-731
|
$15.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
TUBE, AIR VENT (150MM)
16195-195-731
|
$5.51 | ||
|
Unavailable |
|||
|
#18
TUBE
16198-KN5-671
Superseded by 16198-KN5-405
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#19
TUBE, AIR VENT
16198-MK6-405
Superseded by 16199-428-405
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#19
TUBE, AIR VENT
16199-KB4-791
Superseded by 16199-428-405
|
$3.89 | ||
|
Unavailable |
|||
|
#24
TUBE, FUEL
16199-402-004
Superseded by 16199-KG4-405
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN (3X8)
93500-03008-0H
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, FLAT (5X10)
93600-05010-0H
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, FLAT (5X10)
93600-05010-1H
Superseded by 93600-05010-0H
|
$0.70 | ||
|
Unavailable |
|||
|
#27
SCREW-WASHER (4X8)
93892-04008-08
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SCREW-WASHER (4X8)
93892-04008-18
Superseded by 93892-04008-08
|
$1.20 | ||
|
Unavailable |
|||
|
#28
SCREW-WASHER (4X10)
93892-04010-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW-WASHER (4X10)
93892-04010-10
Superseded by 93892-04010-00
|
$1.05 | ||
|
Unavailable |
|||
|
#29
SCREW-WASHER (4X12)
93892-04012-08
|
$0.67 | ||
|
Unavailable |
|||
|
#29
SCREW-WASHER (4X12)
93892-04012-18
Superseded by 93892-04012-08
|
$0.67 | ||
|
Unavailable |
|||
|
#30
SCREW-WASHER (4X14)
93892-04014-08
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SCREW-WASHER (4X14)
93892-04014-18
Superseded by 93892-04014-08
|
$1.15 | ||
|
Unavailable |
|||
|
#31
SCREW-WASHER (4X16)
93892-04016-08
|
$0.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
SCREW-WASHER (4X16)
93892-04016-18
Superseded by 93892-04016-08
|
$0.77 | ||
|
Unavailable |
|||
|
#32
SCREW-WASHER (5X10)
93892-05010-08
|
$1.20 | ||
|
Unavailable |
|||
|
#32
SCREW-WASHER (5X10)
93892-05010-18
|
$1.20 | ||
|
Unavailable |
|||
|
#33
WASHER, SPRING (3MM)
94111-03800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP, TUBE (B6.5)
95002-02650
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#35
JET, MAIN (#120)
99101-GHB-1200
Superseded by 99101-MBZ-1200
|
$11.05 | ||
|
Available to order. Add to View Price |
|||
|
#35
JET, MAIN (#122)
99101-GHB-1220
Superseded by 99101-HN5-1220
|
$11.07 | ||
|
Available to order. Add to View Price |
|||
|
#35
JET, MAIN (#120)
99101-393-1200
Superseded by 99101-MBZ-1200
|
$11.05 | ||
|
Unavailable |
|||
|
#35
JET, MAIN (#122)
99101-393-1220
Superseded by 99101-HN5-1220
|
$11.07 | ||
|
Unavailable |
|||
|
#36
JET, SLOW (#38)
99103-KV6-0380
|
$9.11 | ||
|
Unavailable |
|||
