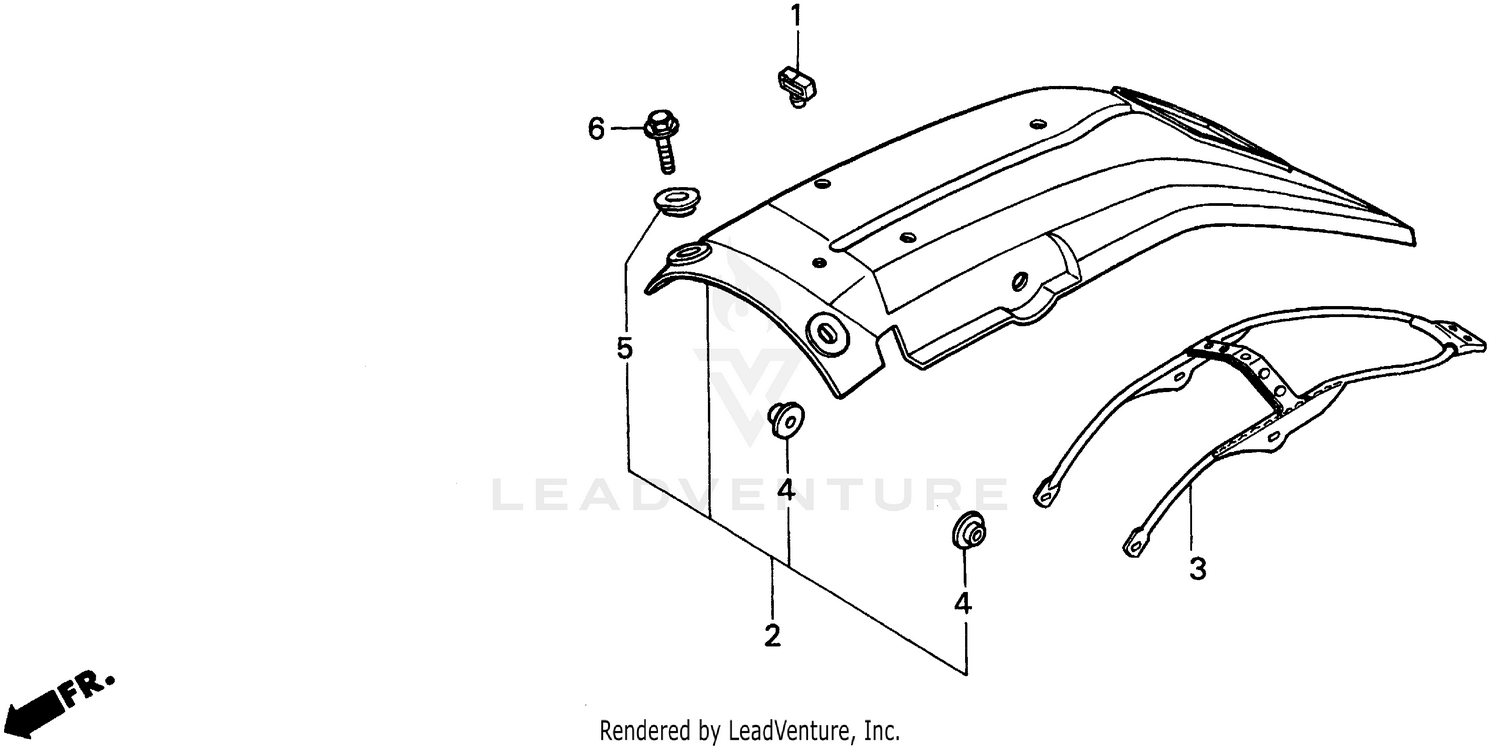

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GROMMET, CABLE
32985-422-000
|
$2.31 | ||
|
Unavailable |
|||
|
#2
FENDER, RR. *NH138* (SHASTA WHITE)
80100-KV6-000ZA
|
$62.76 | ||
|
Unavailable |
|||
|
#3
PIPE, RR. FENDER *NH138* (SHASTA WHITE)
80110-KV6-000ZA
Superseded by 80110-KV6-700ZA
|
$93.97 | ||
|
Unavailable |
|||
|
#3
PIPE, RR. FENDER *NH138* (SHASTA WHITE)
80110-KV6-700ZA
|
$93.97 | ||
|
Unavailable |
|||
|
#4
WASHER (6X20)
90512-300-000
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER (6X9)
90513-323-000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (6X14)
96300-06014-00
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
