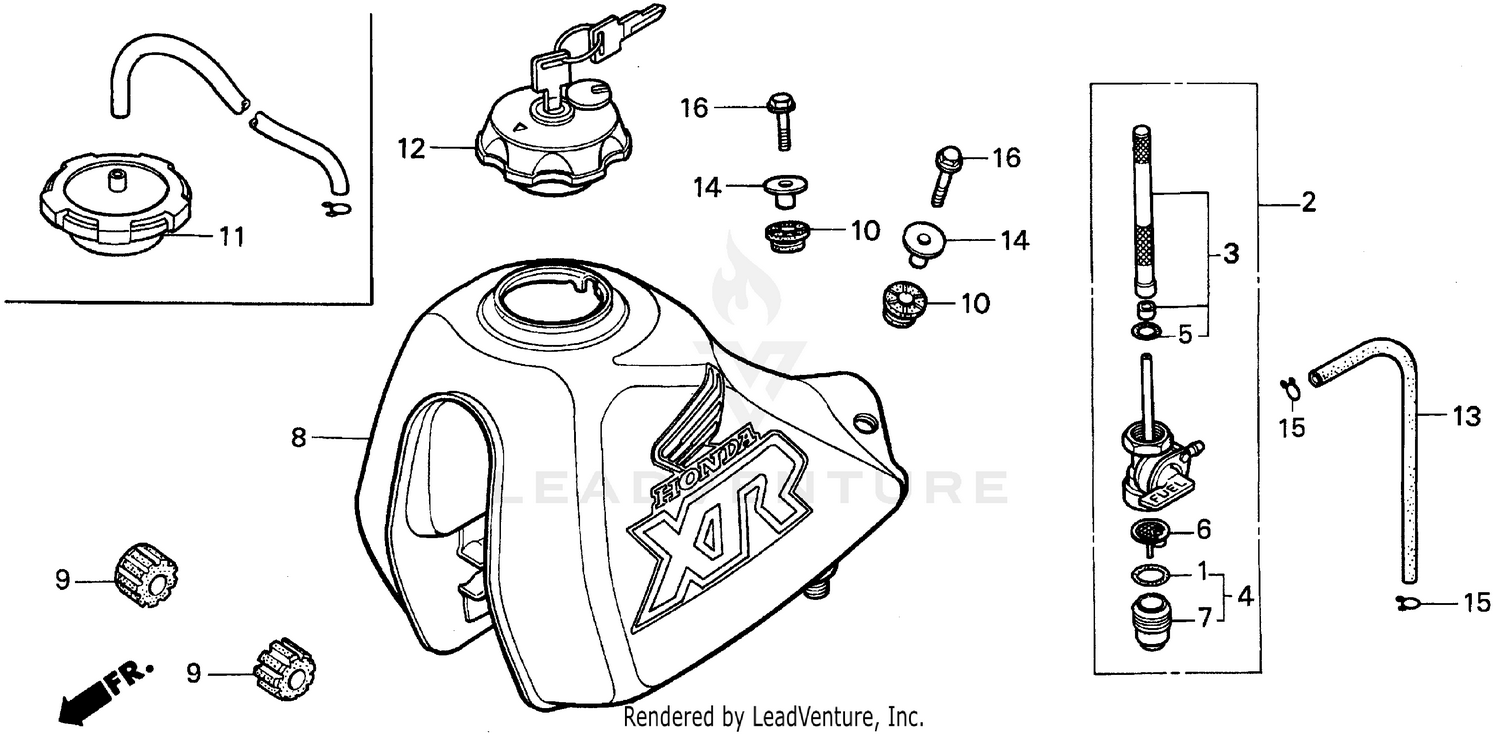

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, FUEL STRAINER CUP
16173-001-004
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
PETCOCK ASSY.
16950-KV6-670
Superseded by 16950-KBR-000
|
$137.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
PETCOCK ASSY.
16950-KBR-000
|
$137.25 | ||
|
Unavailable |
|||
|
#3
SCREEN SET, FUEL STRAINER
16952-MG2-005
Superseded by 16952-KPM-003
|
$23.15 | ||
|
Unavailable |
|||
|
#5
O-RING
16195-657-300
Superseded by 16075-GHB-720
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
16958-MA1-731
Superseded by 16075-GHB-720
|
$3.67 | ||
|
Unavailable |
|||
|
#6
FILTER, CUP
16959-471-831
|
$11.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUP, FUEL STRAINER
16967-GA6-671
|
$28.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
TANK SET, FUEL *NH138* (WL) (SHASTA WHITE)
17520-KV6-670ZA
|
$526.58 | ||
|
Unavailable |
|||
|
#9
RUBBER, FR. FUEL TANK
17611-425-000
|
$10.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, RR. FUEL TANK
17613-176-000
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, FUEL FILLER
17620-KV6-023
Superseded by 17620-KV6-033
|
$79.85 | ||
|
Unavailable |
|||
|
#12
CAP, FUEL FILLER
17620-KV6-033
|
$79.85 | ||
|
Unavailable |
|||
|
#13
TUBE, FUEL
17681-KT1-670
|
$8.33 | ||
|
Unavailable |
|||
|
#14
COLLAR, SEAT SETTING
77207-464-000
|
$9.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP, TUBE (B10)
95002-02100
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
