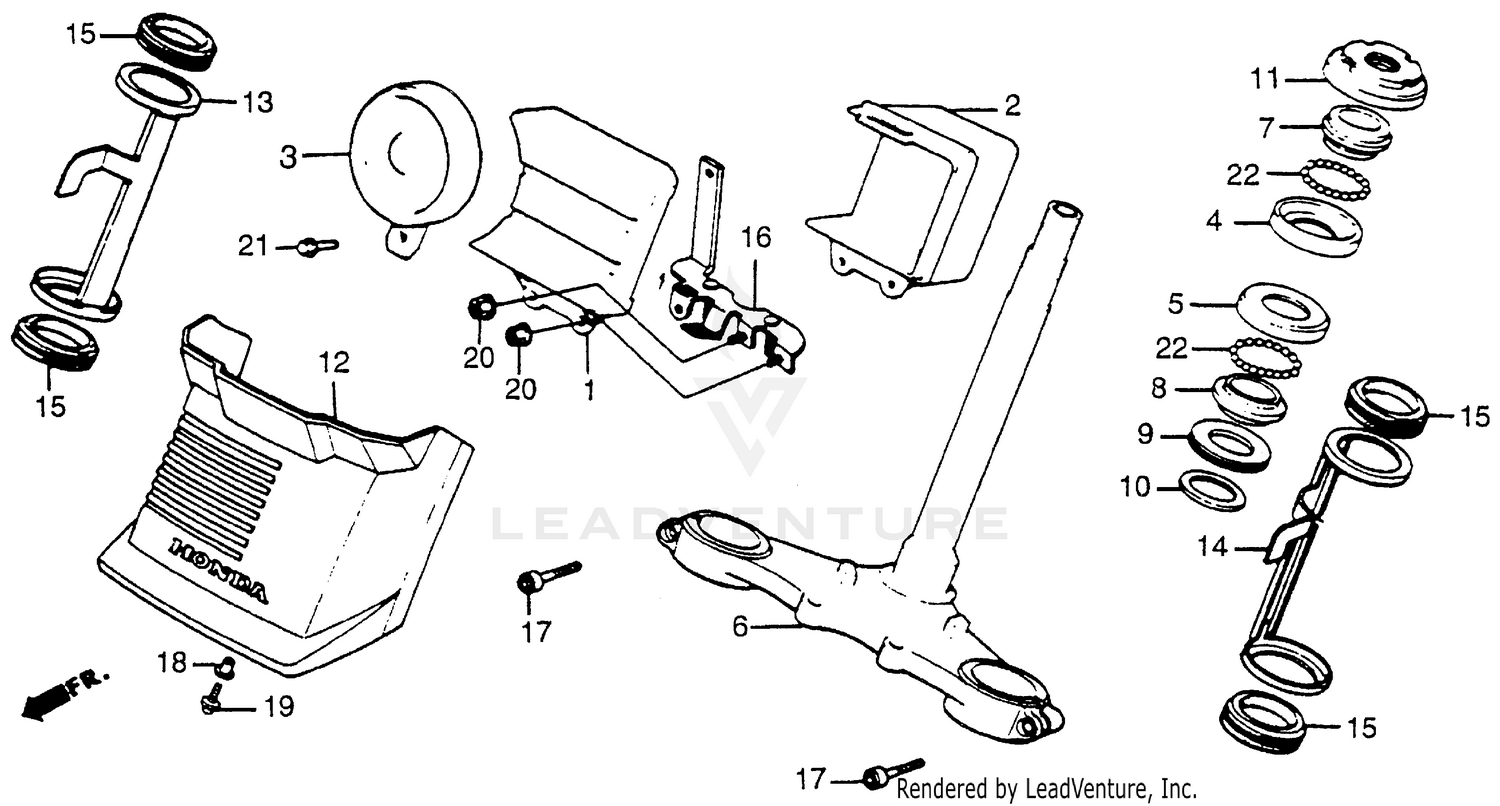

Vt500ft Steering Stem Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOX ASSY., JOINT
32450-MF5-000
|
$61.52 | ||
|
Unavailable |
|||
|
#2
COVER, JOINT BOX
32451-MF8-000
|
$16.32 | ||
|
Unavailable |
|||
|
#3
HORN (HIGH)
38110-KB4-621
Superseded by 38110-KGB-900
|
$41.73 | ||
|
Unavailable |
|||
|
#3
HORN (HIGH)
38110-KGB-611
Superseded by 38110-KGB-900
|
$41.73 | ||
|
Unavailable |
|||
|
#3
HORN (HIGH)
38110-KGB-900
|
$41.73 | ||
|
Unavailable |
|||
|
#3
HORN (HIGH)
38110-MF8-000
Superseded by 38110-KGB-900
|
$41.73 | ||
|
Unavailable |
|||
|
#3
HORN (HIGH)
38110-MG9-951
Superseded by 38110-KGB-900
|
$41.73 | ||
|
Unavailable |
|||
|
#3
HORN (HIGH)
38110-MJ0-681
Superseded by 38110-KGB-900
|
$41.73 | ||
|
Unavailable |
|||
|
#4
RACE, STEERING TOP BALL
50301-268-000
Superseded by 50301-268-010
|
$26.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
RACE, STEERING TOP BALL
50301-268-010
|
$26.02 | ||
|
Unavailable |
|||
|
#5
RACE, STEERING BALL (LOWER)
50302-268-000
Superseded by 50302-268-010
|
$25.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
RACE, STEERING BALL (LOWER)
50302-268-010
|
$25.56 | ||
|
Unavailable |
|||
|
#6
STEM, STEERING
53200-MF8-000
|
$278.13 | ||
|
Unavailable |
|||
|
#7
RACE, STEERING TOP CONE
53211-268-000
Superseded by 53211-268-010
|
$31.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
RACE, STEERING TOP CONE
53211-268-010
|
$31.64 | ||
|
Unavailable |
|||
|
#8
RACE, STEERING CONE (LOWER)
53212-250-000
Superseded by 53212-250-010
|
$25.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
RACE, STEERING CONE (LOWER)
53212-250-010
|
$25.38 | ||
|
Unavailable |
|||
|
#9
DUST SEAL
53214-250-000
Superseded by 53214-K0T-J00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, STEERING HEAD DUST SEAL
53215-250-000
|
$2.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
THREAD, STEERING HEAD TOP
53220-KE8-010
|
$38.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER (LOWER) (NOT AVAILABLE)
61401-MF8-000
|
$71.50 | ||
|
Unavailable |
|||
|
#13
STAY, R. FR. COVER
61402-MF8-000
|
$26.72 | ||
|
Unavailable |
|||
|
#14
STAY, L. FR. COVER
61403-MF8-000
|
$23.65 | ||
|
Unavailable |
|||
|
#15
GROMMET, FR. COVER
61404-MF8-000
|
$6.33 | ||
|
Unavailable |
|||
|
#16
STAY, HORN & JOINT BOX
61405-MF8-000
|
$32.40 | ||
|
Unavailable |
|||
|
#17
BOLT, SOCKET (10X30)
90152-MB0-000
|
$7.79 | ||
|
Unavailable |
|||
|
#18
WASHER, FR. FENDER SETTING
90556-044-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-WASHER (6X12)
93891-06012-18
|
$0.77 | ||
|
Unavailable |
|||
|
#20
NUT, FLANGE (5MM)
94050-05080
|
$0.38 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE (6X12)
95700-06012-00
Superseded by 95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
Unavailable |
|||
|
#22
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
