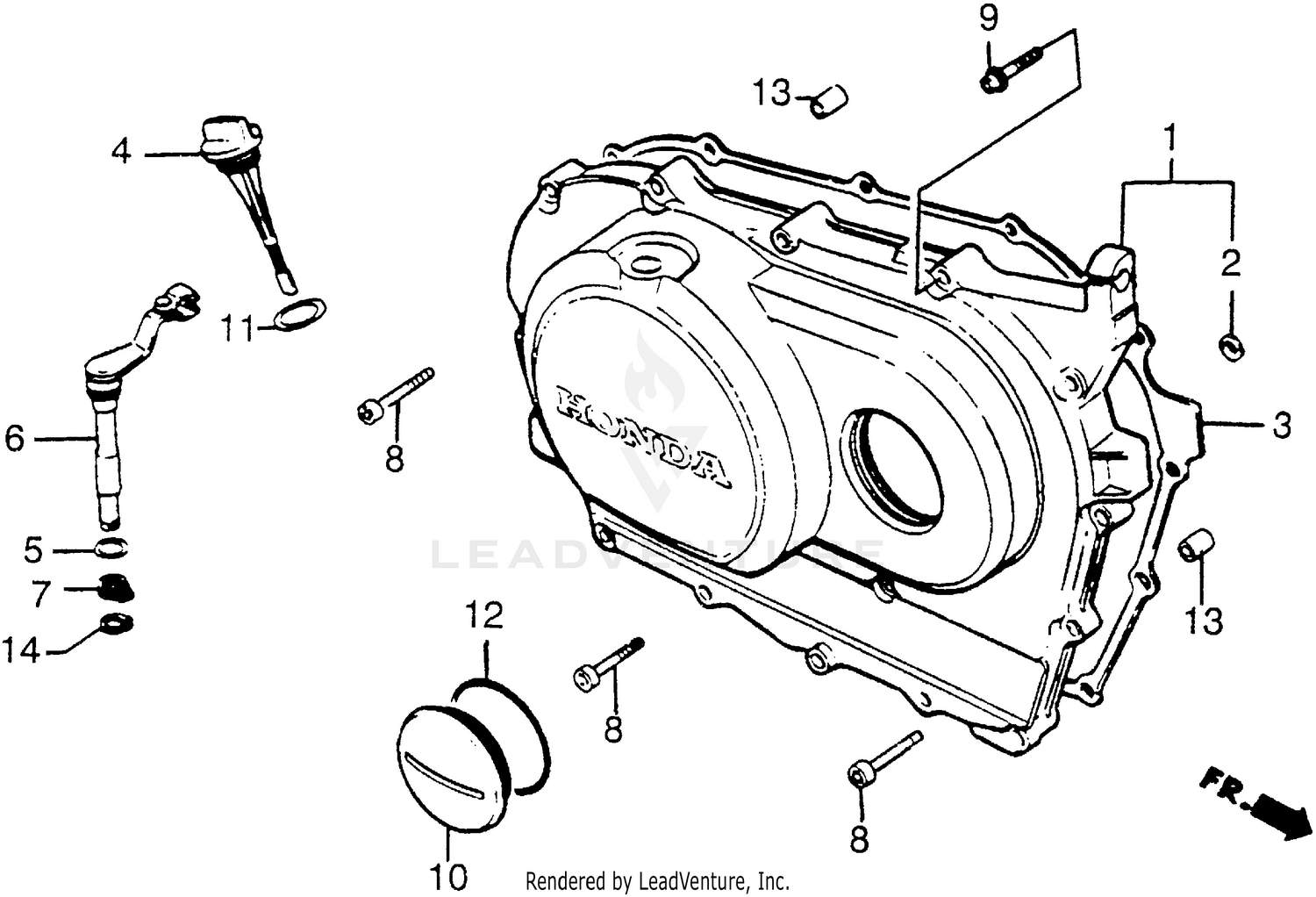

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE
11330-MF8-000
Superseded by 11330-MF9-700
|
$233.45 | ||
|
Unavailable |
|||
|
#1
COVER, R. CRANKCASE
11330-MF9-700
|
$233.45 | ||
|
Unavailable |
|||
|
#2
GASKET, R. COVER BOSS
11393-MF5-300
|
$1.62 | ||
|
Unavailable |
|||
|
#3
GASKET, R. CRANKCASE COVER
11394-MF5-000
Superseded by 11394-MW6-000
|
$12.76 | ||
|
Unavailable |
|||
|
#3
GASKET, R. CRANKCASE COVER
11394-MF5-306
Superseded by 11394-MW6-000
|
$12.76 | ||
|
Unavailable |
|||
|
#3
GASKET, R. CRANKCASE COVER
11394-MW6-000
|
$12.76 | ||
|
Unavailable |
|||
|
#4
DIPSTICK, OIL
15650-MK7-670
|
$10.44 | ||
|
Unavailable |
|||
|
#4
DIPSTICK, OIL
15650-449-000
Superseded by 15650-MK7-670
|
$10.44 | ||
|
Unavailable |
|||
|
#5
O-RING (11.8X2.4)
16997-357-003
Superseded by 91302-ZE9-003
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING (11.8X2.4)
91302-ZE9-000
Superseded by 91302-ZE9-003
|
$3.22 | ||
|
Unavailable |
|||
|
#5
O-RING (11.8X2.4)
91302-ZE9-003
|
$3.22 | ||
|
Unavailable |
|||
|
#5
O-RING (11.8X2.4)
91320-HA5-000
Superseded by 91302-ZE9-003
|
$3.22 | ||
|
Unavailable |
|||
|
#5
O-RING (11.8X2.4)
91320-HA5-003
Superseded by 91302-ZE9-003
|
$3.22 | ||
|
Unavailable |
|||
|
#5
O-RING (11.8X2.4)
91320-MJ6-003
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, SEAL (12.5X2.5)
91306-MF5-003
|
$1.90 | ||
|
Unavailable |
|||
|
#6
LEVER, CLUTCH
22810-MF5-000
|
$56.38 | ||
|
Unavailable |
|||
|
#7
SPRING, CLUTCH LEVER
22815-413-000
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, SOCKET (6MM)
90074-ME9-000
Superseded by 90081-KF9-900
|
$3.17 | ||
|
Unavailable |
|||
|
#8
BOLT, SOCKET (6MM)
90081-KF9-900
|
$3.17 | ||
|
Unavailable |
|||
|
#9
BOLT, SOCKET FLANGE (6X35)
90074-MF5-000
|
$3.78 | ||
|
Unavailable |
|||
|
#10
CAP (45MM)
90087-ME9-000
|
$17.74 | ||
|
Unavailable |
|||
|
#11
O-RING (21.5X3.2)
91301-250-000
Superseded by 91307-425-003
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING (21.5X3.2)
91307-425-003
|
$2.93 | ||
|
Unavailable |
|||
|
#12
O-RING (41.5X2)
91358-MC7-003
|
$3.78 | ||
|
Unavailable |
|||
|
#13
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CIRCLIP (OUTER) (10MM)
94510-10000
|
$1.15 | ||
|
Unavailable |
|||
