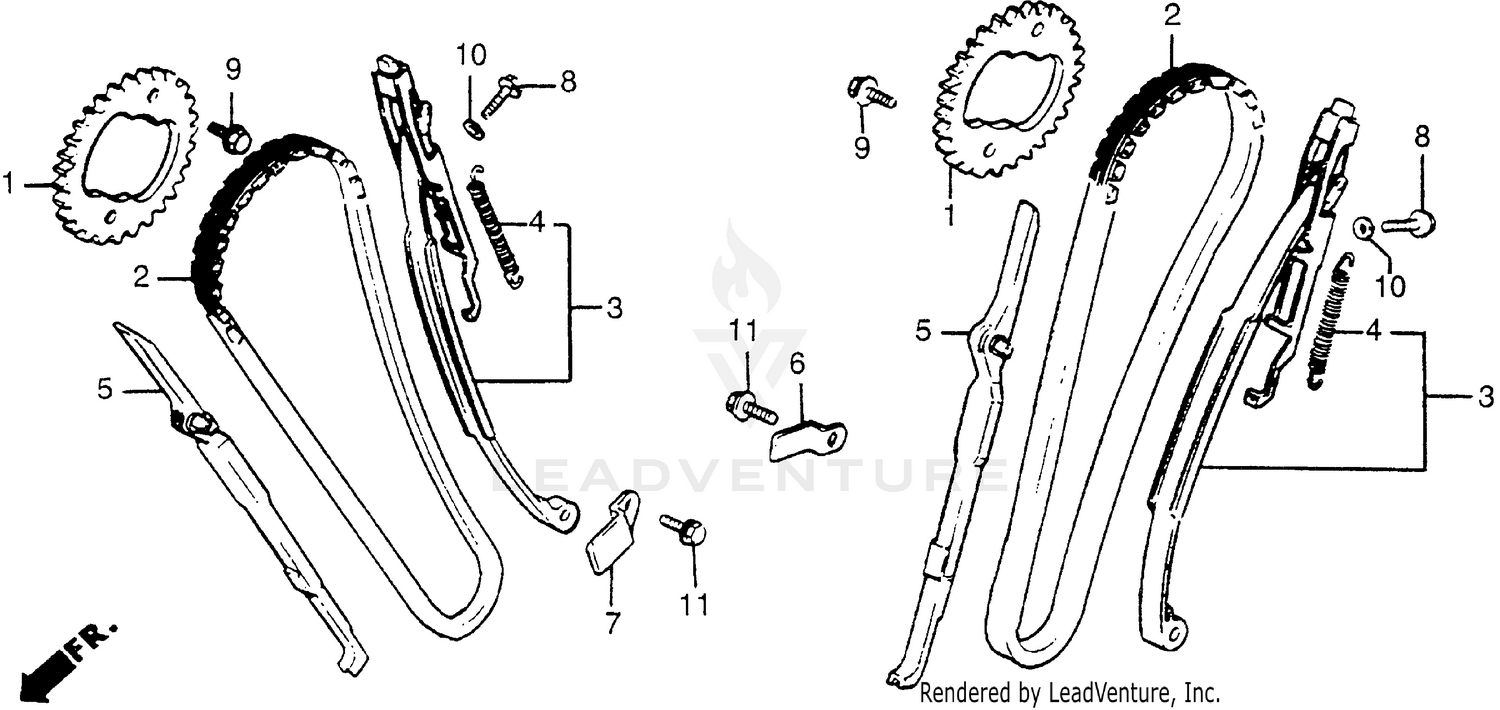

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, CAM
14322-MF5-000
|
$52.40 | ||
|
Unavailable |
|||
|
#2
CHAIN, CAM
14401-MF5-000
Superseded by 14401-MF5-013
|
$164.18 | ||
|
Unavailable |
|||
|
#2
CHAIN, CAM
14401-MF5-003
Superseded by 14401-MF5-013
|
$164.18 | ||
|
Unavailable |
|||
|
#2
CHAIN, CAM
14401-MF5-004
Superseded by 14401-MF5-013
|
$164.18 | ||
|
Unavailable |
|||
|
#2
CHAIN, CAM
14401-MF5-013
|
$164.18 | ||
|
Unavailable |
|||
|
#3
TENSIONER, CAM CHAIN
14510-MF5-772
|
$110.73 | ||
|
Unavailable |
|||
|
#4
SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)
14516-471-000
|
$3.59 | ||
|
Unavailable |
|||
|
#5
GUIDE, CAM CHAIN
14522-MF5-000
|
$48.95 | ||
|
Unavailable |
|||
|
#6
PLATE A, TENSIONER SETTING
14623-MF5-000
|
$5.18 | ||
|
Unavailable |
|||
|
#7
PLATE B, TENSIONER SETTING
14624-MF5-000
|
$7.40 | ||
|
Unavailable |
|||
|
#8
BOLT, SPECIAL (6MM)
90021-MF5-000
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, SPECIAL FLANGE (7X13)
90086-MF5-000
Superseded by 90086-MZ8-H00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, SPECIAL FLANGE (7X13)
90086-MZ8-H00
|
$3.75 | ||
|
Unavailable |
|||
|
#10
WASHER, SEALING (6MM)
90441-706-000
|
$1.46 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X14)
96000-06014-00
Superseded by 96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Unavailable |
|||
