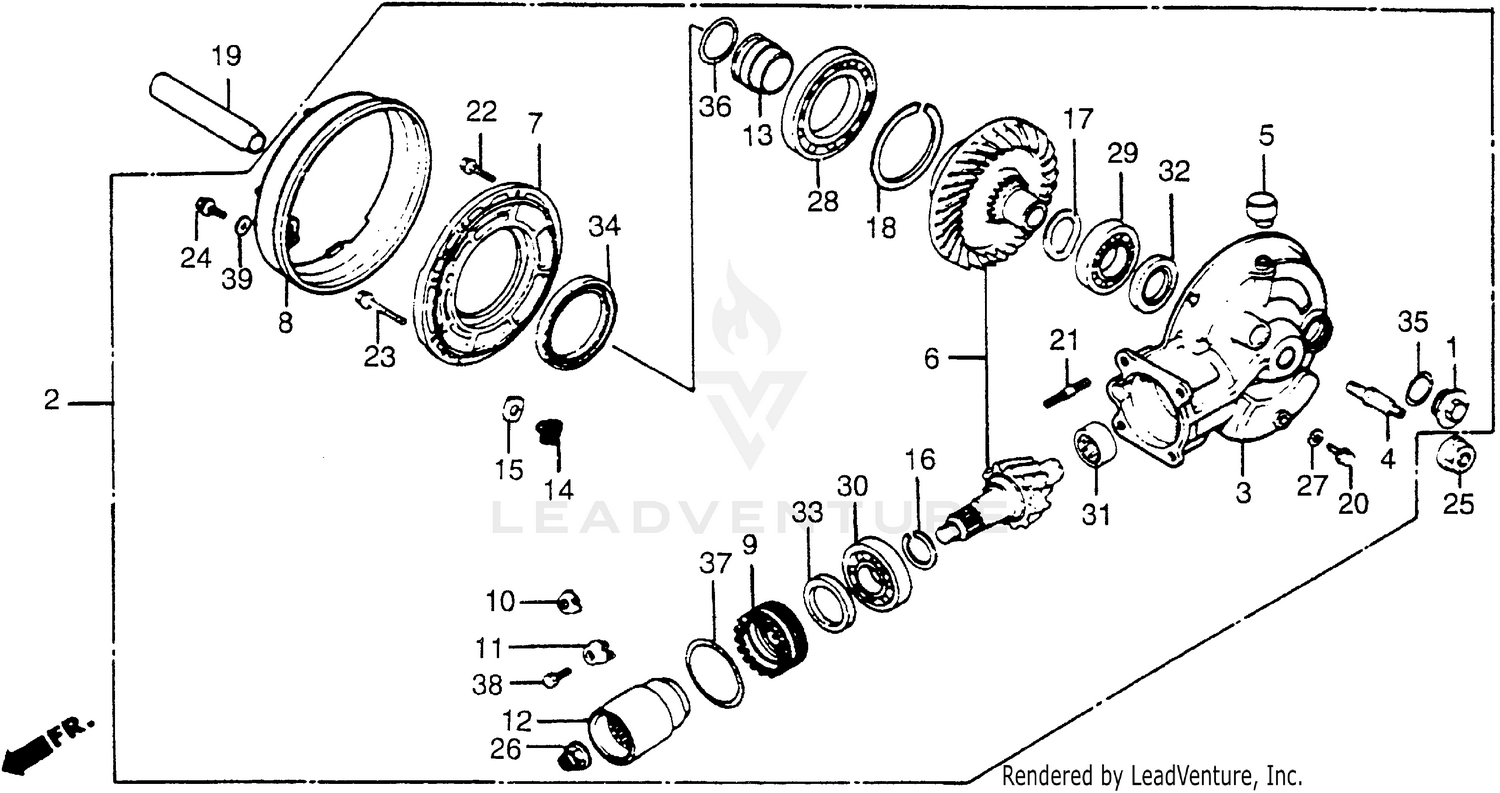

Final Driven Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP, GEAR CASE OIL
41511-ME5-000
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR ASSY., FINAL
41300-MF8-000
|
$2,140.24 | ||
|
Unavailable |
|||
|
#3
CASE, FINAL GEAR
41301-MF8-000
Superseded by 41301-MF8-010
|
$1,119.26 | ||
|
Unavailable |
|||
|
#3
CASE, FINAL GEAR
41301-MF8-010
|
$1,119.26 | ||
|
Unavailable |
|||
|
#4
STAY, RUBBER (LOWER) (NOT AVAILABLE)
41303-ME4-300
|
$12.23 | ||
|
Unavailable |
|||
|
#5
CAP, BREATHER
41306-MB0-010
Superseded by 41306-MB0-020
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, BREATHER
41306-MB0-020
|
$11.20 | ||
|
Unavailable |
|||
|
#5
BREATHER ASSY.
41306-ME5-305
|
$15.33 | ||
|
Unavailable |
|||
|
#6
GEAR SET, FINAL DRIVEN
41310-ME3-305
|
$375.19 | ||
|
Unavailable |
|||
|
#7
COVER, GEAR CASE
41321-ME4-000
|
$224.18 | ||
|
Unavailable |
|||
|
#8
PLATE, DUST GUARD
41324-MF5-000
|
$102.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETAINER, BEARING
41331-MF5-000
Superseded by 41331-MF5-010
|
$106.75 | ||
|
Unavailable |
|||
|
#9
RETAINER, BEARING
41331-MF5-010
|
$106.75 | ||
|
Unavailable |
|||
|
#10
LOCK A, BEARING ADJUSTING (SINGLE TAB)
41332-415-000
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOCK B, BEARING ADJUSTING (DOUBLE TABS)
41333-415-000
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT, PINION (NOT AVAILABLE)
41410-MF5-000
Superseded by 41410-MF5-010
|
$98.49 | ||
|
Unavailable |
|||
|
#12
JOINT, PINION (NOT AVAILABLE)
41410-MF5-010
|
$98.49 | ||
|
Unavailable |
|||
|
#13
HOLDER, O-RING
41433-ME4-000
|
$9.94 | ||
|
Unavailable |
|||
|
#14
PIN, RING GEAR STOPPER
41436-MB0-310
|
$36.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM A, STOPPER PIN (0.10)
41437-MB0-310
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM B, STOPPER PIN (0.15)
41438-MB0-310
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIM A, PINION GEAR (1.32)
41450-ME4-000
|
$6.96 | ||
|
Unavailable |
|||
|
#16
SHIM B, PINION GEAR (1.38)
41451-ME4-000
|
$6.96 | ||
|
Unavailable |
|||
|
#16
SHIM C, PINION GEAR (1.44)
41452-ME4-000
|
$6.71 | ||
|
Unavailable |
|||
|
#16
SHIM D, PINION GEAR (1.50)
41453-ME4-000
|
$6.15 | ||
|
Unavailable |
|||
|
#16
SHIM E, PINION GEAR (1.56)
41454-ME4-000
|
$6.96 | ||
|
Unavailable |
|||
|
#16
SHIM F, PINION GEAR (1.62)
41455-ME4-000
|
$6.96 | ||
|
Unavailable |
|||
|
#16
SHIM G, PINION GEAR (1.68)
41456-ME4-000
|
$6.96 | ||
|
Unavailable |
|||
|
#17
WASHER, SPECIAL (31X40)
41510-ME4-003
|
$9.45 | ||
|
Unavailable |
|||
|
#18
SPACER A, RING GEAR (1.32)
41530-ME4-000
|
$13.13 | ||
|
Unavailable |
|||
|
#18
SPACER B, RING GEAR (1.38)
41531-ME4-000
|
$13.13 | ||
|
Unavailable |
|||
|
#18
SPACER C, RING GEAR (1.44)
41532-ME4-000
|
$13.13 | ||
|
Unavailable |
|||
|
#18
SPACER D, RING GEAR (1.50)
41533-ME4-000
|
$13.97 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER E, RING GEAR (1.56)
41534-ME4-000
|
$13.13 | ||
|
Unavailable |
|||
|
#18
SPACER F, RING GEAR (1.62)
41535-ME4-000
|
$13.13 | ||
|
Unavailable |
|||
|
#18
SPACER G, RING GEAR (1.68)
41536-ME4-000
|
$13.13 | ||
|
Unavailable |
|||
|
#18
SPACER H, RING GEAR (1.74)
41537-ME4-000
|
$13.13 | ||
|
Unavailable |
|||
|
#18
SPACER I, RING GEAR (1.80)
41538-ME4-000
|
$13.13 | ||
|
Unavailable |
|||
|
#19
COLLAR B, RR. DISTANCE
42625-MF5-000
|
$30.57 | ||
|
Unavailable |
|||
|
#20
BOLT, SEALING (8MM)
90109-ME5-000
Superseded by 90109-371-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SEALING (8MM)
90109-371-000
|
$3.09 | ||
|
Unavailable |
|||
|
#21
BOLT, STUD (8X40)
90125-ME4-000
|
$2.59 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (8X27)
90133-MB0-000
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (10X38) (NOT AVAILABLE)
90134-371-000
|
$5.55 | ||
|
Unavailable |
|||
|
#24
BOLT, HEX. (6X16)
90170-MB0-000
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, RR. AXLE U (16MM)
90305-MC0-003
|
$8.74 | ||
|
Unavailable |
|||
|
#26
NUT, HEX. (16MM)
90381-MB0-010
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET (8MM)
90471-580-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BEARING, RADIAL BALL (55X90X11)
91051-ME4-003
|
$95.30 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, RADIAL BALL (30X52X13)
91052-ME4-003
|
$29.00 | ||
|
Unavailable |
|||
|
#30
BEARING, RADIAL BALL (22X56X16)
91061-ME4-003
Superseded by 91061-ME4-004
|
$76.63 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING, RADIAL BALL (22X56X16)
91061-ME4-004
|
$76.63 | ||
|
Unavailable |
|||
|
#31
BEARING, NEEDLE (16X15) (NOT AVAILABLE)
91062-ME4-003
|
$33.80 | ||
|
Unavailable |
|||
|
#32
OIL SEAL (30X45X7)
91261-ME4-003
|
$9.57 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL (30X45X7)
91261-ME4-004
Superseded by 91261-ME4-003
|
$9.57 | ||
|
Unavailable |
|||
|
#33
OIL SEAL (36X46X6) (NOT AVAILABLE)
91262-MF5-000
|
$8.57 | ||
|
Unavailable |
|||
|
#34
OIL SEAL (55X80X7)
91265-ME4-003
|
$12.56 | ||
|
Unavailable |
|||
|
#34
OIL SEAL (55X80X7)
91265-ME4-004
Superseded by 91265-ME4-003
|
$12.56 | ||
|
Unavailable |
|||
|
#35
O-RING (30.8MM)
91302-001-020
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
O-RING (32.5X2.5)
91307-MC8-005
|
$2.87 | ||
|
Unavailable |
|||
|
#36
O-RING (32.5X2.5)
91356-ME4-003
Superseded by 91307-MC8-005
|
$2.87 | ||
|
Unavailable |
|||
|
#36
O-RING (32.5X2.5)
91356-ME4-004
Superseded by 91307-MC8-005
|
$2.87 | ||
|
Unavailable |
|||
|
#37
O-RING (53.5X3.5)
91359-ME4-003
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING (53.5X3.5)
91359-ME4-004
Superseded by 91359-ME4-003
|
$4.35 | ||
|
Unavailable |
|||
|
#38
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#38
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#39
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
