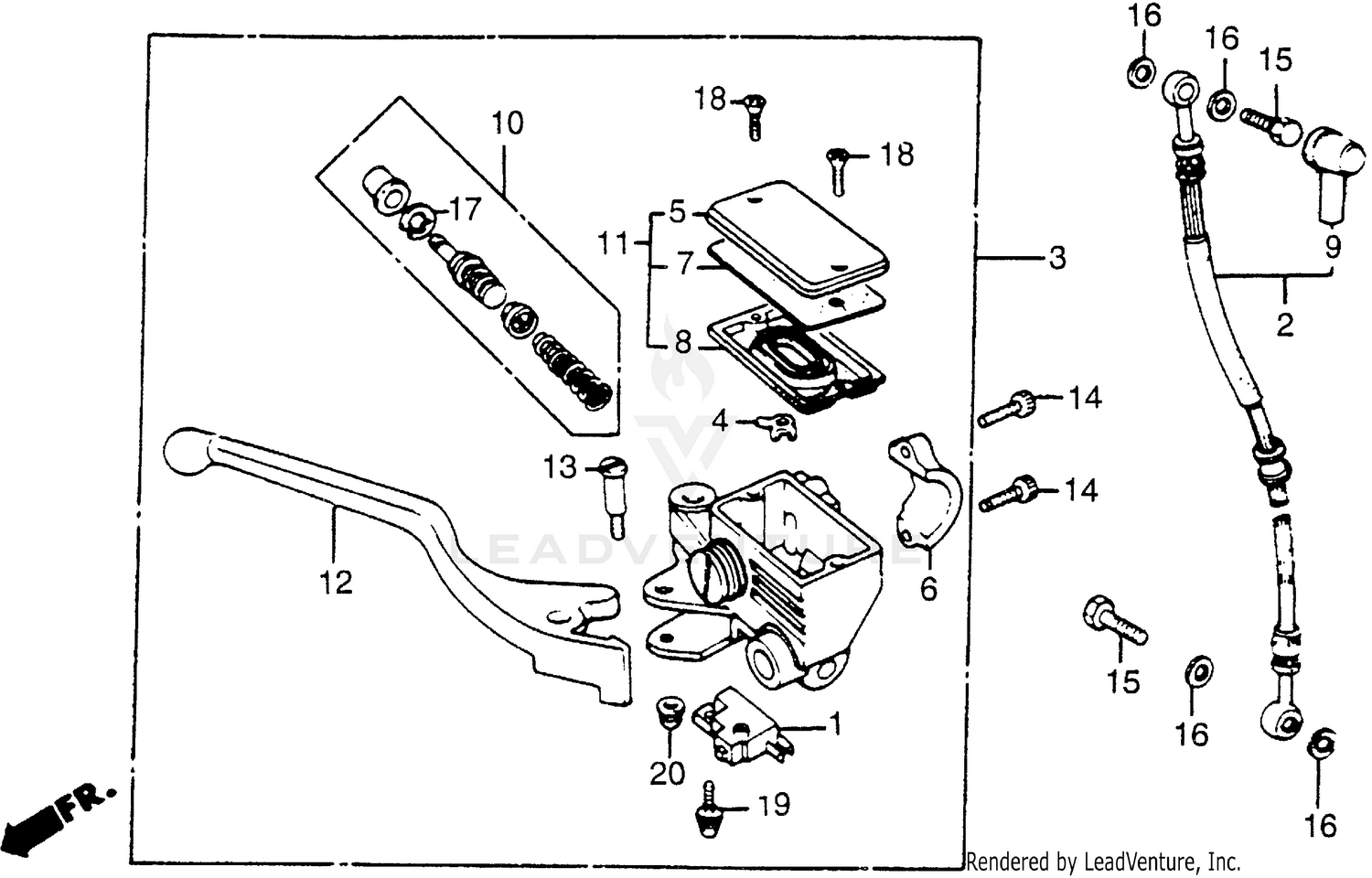

Front Brake Master Cyl. Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MA5-671
|
$29.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, FR. BRAKE
45126-MF8-003
Superseded by 45126-MF8-013
|
$46.91 | ||
|
Unavailable |
|||
|
#3
MASTER CYLINDER ASSY., FR. BRAKE (NA USE ALT:45510-MF5-405)
45500-MF8-772
|
$268.17 | ||
|
Unavailable |
|||
|
#4
PROTECTOR
45512-MA6-006
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP SET, FR. BRAKE MASTER CYLINDER (NOT AVAILABLE)
45513-KE5-006
Superseded by 45540-KE5-305
|
$28.11 | ||
|
Unavailable |
|||
|
#5
CAP SET, FR. BRAKE MASTER CYLINDER (NOT AVAILABLE)
45513-KE5-016
Superseded by 45540-KE5-305
|
$28.11 | ||
|
Unavailable |
|||
|
#5
CAP SET, FR. BRAKE MASTER CYLINDER (NOT AVAILABLE)
45540-KE5-305
|
$28.11 | ||
|
Unavailable |
|||
|
#6
HOLDER, MASTER CYLINDER (NOT AVAILABLE)
45517-MB0-006
|
$17.61 | ||
|
Unavailable |
|||
|
#8
DIAPHRAGM
45520-MA5-671
Superseded by 45520-MA5-672
|
$21.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIAPHRAGM
45520-MA5-672
|
$21.96 | ||
|
Unavailable |
|||
|
#9
BOOT, MASTER CYLINDER
45522-422-000
|
$10.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
MASTER CYLINDER SET
45530-MA4-671
|
$57.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, R. HANDLE
53175-KE8-006
Superseded by 53175-MK7-671
|
$21.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, R. HANDLE
53175-MJ6-006
Superseded by 53175-MK7-671
|
$21.67 | ||
|
Unavailable |
|||
|
#13
BOLT, HANDLE LEVER PIVOT
90114-MA5-671
|
$11.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, SOCKET (6X23)
90117-MB0-000
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, OIL (10X22) (SAGA)
90145-KE8-000
Superseded by 90145-KM3-751
|
$13.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, OIL (10X22) (SAGA)
90145-KM3-750
Superseded by 90145-KM3-751
|
$13.35 | ||
|
Unavailable |
|||
|
#15
BOLT, OIL (10X22)
90145-KM3-751
|
$13.35 | ||
|
Unavailable |
|||
|
#15
BOLT, OIL (10X22)
90145-VM0-000
|
|||
|
Unavailable |
|||
|
#15
BOLT, OIL (10X22) (SAGA)
90145-961-010
Superseded by 90145-KM3-751
|
$13.35 | ||
|
Unavailable |
|||
|
#16
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#19
SCREW-WASHER (4X12)
93893-04012-08
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-WASHER (4X12)
93893-04012-18
Superseded by 93893-04012-08
|
$1.40 | ||
|
Unavailable |
|||
|
#20
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
