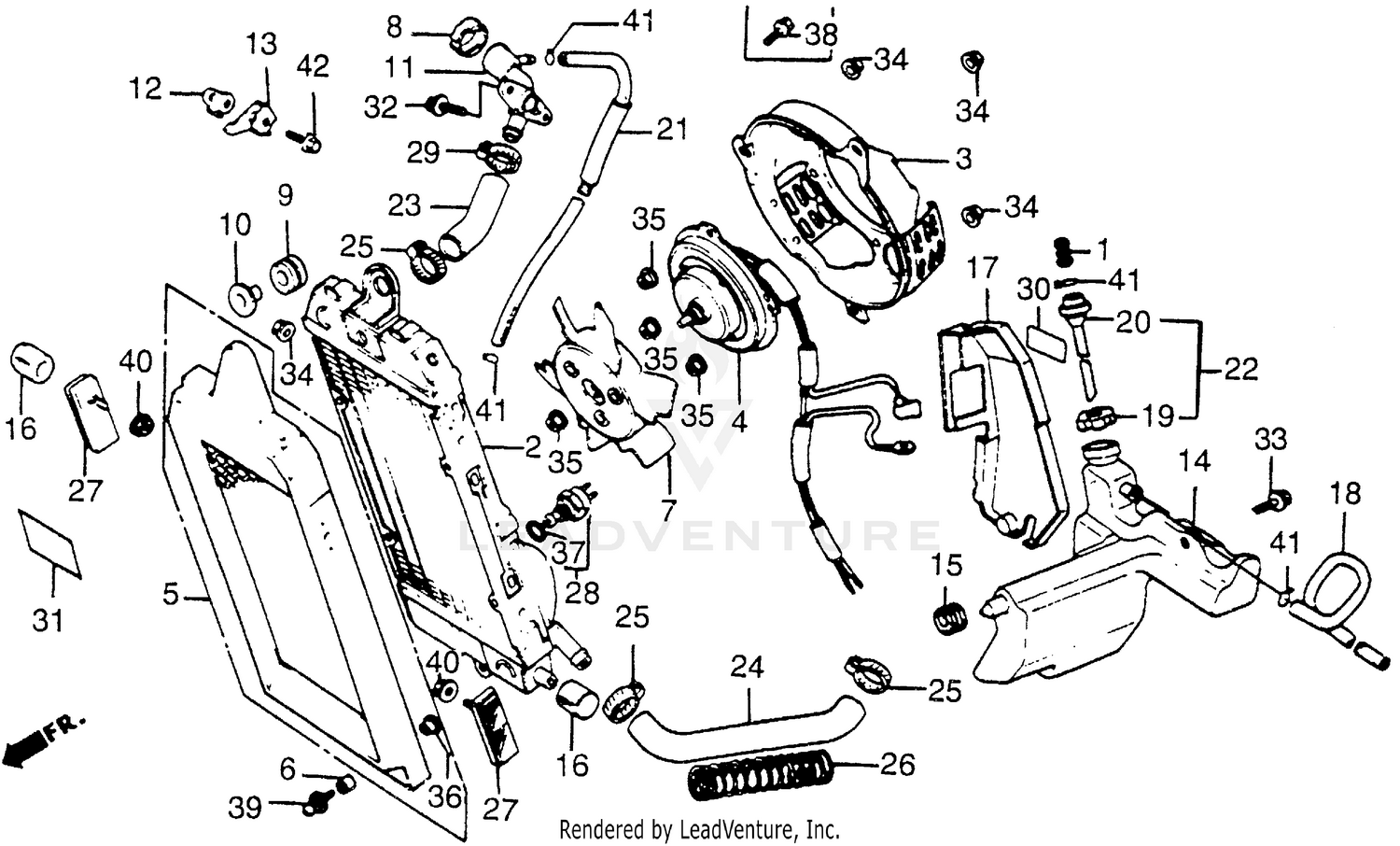

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, BREATHER TUBE
17359-419-670
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
RADIATOR
19010-MF5-003
|
$495.65 | ||
|
Unavailable |
|||
|
#3
SHROUD
19020-MF5-771
|
$54.89 | ||
|
Unavailable |
|||
|
#4
MOTOR ASSY., FAN
19030-MF5-003
Superseded by 19030-MF5-013
|
$244.17 | ||
|
Unavailable |
|||
|
#5
GRILLE, RADIATOR (NOT AVAILABLE)
19032-MF5-750
Superseded by 19032-MF5-880
|
$73.03 | ||
|
Unavailable |
|||
|
#5
GRILLE, RADIATOR (NOT AVAILABLE)
19032-MF5-880
|
$73.03 | ||
|
Unavailable |
|||
|
#5
GRILLE, RADIATOR (NOT AVAILABLE)
19032-MF8-770
Superseded by 19032-MF5-880
|
$73.03 | ||
|
Unavailable |
|||
|
#6
COLLAR, RADIATOR COVER
19033-415-000
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
FAN, COOLING
19040-MF5-003
|
$50.64 | ||
|
Unavailable |
|||
|
#8
CAP, RADIATOR
19045-MB0-702
Superseded by 19045-MZ3-405
|
$39.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, RADIATOR
19045-MF8-000
Superseded by 19045-MZ3-405
|
$39.36 | ||
|
Unavailable |
|||
|
#9
RUBBER, RADIATOR MOUNTING
19051-KA4-000
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, RADIATOR MOUNTING
19052-MB0-000
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
NECK, FILLER
19106-MF5-003
|
$60.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, FILLER NECK
19107-MF5-000
|
$3.71 | ||
|
Unavailable |
|||
|
#13
BRACKET, FILLER NECK
19109-MF8-000
|
$8.04 | ||
|
Unavailable |
|||
|
#14
TANK, RESERVE
19110-MF5-000
Superseded by 19110-MF5-505
|
$32.97 | ||
|
Unavailable |
|||
|
#14
TANK, RESERVE
19110-MF5-505
|
$32.97 | ||
|
Unavailable |
|||
|
#16
MOUNT, RADIATOR (LOWER) (NOT AVAILABLE)
19112-MF5-000
|
$4.05 | ||
|
Unavailable |
|||
|
#17
COVER, WATER TANK (NOT AVAILABLE)
19119-MF5-000
Superseded by 19119-MF5-750
|
$14.93 | ||
|
Unavailable |
|||
|
#17
COVER, WATER TANK (NOT AVAILABLE)
19119-MF5-750
|
$14.93 | ||
|
Unavailable |
|||
|
#18
TUBE, RESERVE TANK (NOT AVAILABLE)
19201-MF5-000
|
$8.16 | ||
|
Unavailable |
|||
|
#19
CAP, RESERVE TANK (NOT AVAILABLE)
19204-MF5-000
|
$9.52 | ||
|
Unavailable |
|||
|
#20
TUBE, LEVEL
19205-MF5-000
Superseded by 19205-MF5-010
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE, LEVEL
19205-MF5-010
|
$9.32 | ||
|
Unavailable |
|||
|
#21
TUBE, RADIATOR RESERVE (NOT AVAILABLE)
19206-MF5-000
|
$10.40 | ||
|
Unavailable |
|||
|
#22
CAP ASSY., RESERVOIR TANK
19210-MF5-000
|
$20.24 | ||
|
Unavailable |
|||
|
#23
HOSE A, WATER (NOT AVAILABLE)
19503-MF5-000
|
$11.40 | ||
|
Unavailable |
|||
|
#24
HOSE B, WATER (NOT AVAILABLE)
19504-MF5-000
|
$19.56 | ||
|
Unavailable |
|||
|
#25
CLAMP, HOSE (22-29MM)
19513-MF5-000
Superseded by 19517-ML7-691
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP, HOSE (22-29MM)
19513-MM4-003
Superseded by 19517-ML7-691
|
$14.09 | ||
|
Unavailable |
|||
|
#25
CLAMP, HOSE (22-29MM)
19517-ML7-691
|
$14.09 | ||
|
Unavailable |
|||
|
#26
WIRE A, GUARD
19515-MF5-000
Superseded by 19515-MF5-010
|
$17.74 | ||
|
Available to order. Add to View Price |
|||
|
#26
WIRE A, GUARD
19515-MF5-010
|
$17.74 | ||
|
Unavailable |
|||
|
#27
REFLECTOR, FR. REFLEX
33741-ME9-671
Superseded by 33741-ME9-673
|
$20.87 | ||
|
Available to order. Add to View Price |
|||
|
#27
REFLECTOR, FR. REFLEX
33741-ME9-672
Superseded by 33741-ME9-673
|
$20.87 | ||
|
Unavailable |
|||
|
#27
REFLECTOR, FR. REFLEX
33741-ME9-673
|
$20.87 | ||
|
Unavailable |
|||
|
#28
SWITCH ASSY., THERMO
37760-MC7-003
|
$102.32 | ||
|
Unavailable |
|||
|
#29
CLAMP, WATER HOSE
50228-MB0-000
|
$11.42 | ||
|
Unavailable |
|||
|
#30
LABEL, RESERVE TANK
87507-MB4-670
|
$3.19 | ||
|
Unavailable |
|||
|
#31
MARK, RADIATOR CAUTION (NOT AVAILABLE)
87508-415-670
|
$3.86 | ||
|
Unavailable |
|||
|
#32
BOLT, SOCKET (6X12) (NOT AVAILABLE)
90105-460-000
|
$2.06 | ||
|
Unavailable |
|||
|
#36
WASHER, FR. FENDER SETTING
90556-044-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING (13.5X1.4)
91307-PH7-660
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
O-RING (13.5X1.4)
91307-611-000
Superseded by 91307-PH7-660
|
$3.20 | ||
|
Unavailable |
|||
|
#38
BOLT-WASHER (6X10)
93411-06010-07
Superseded by 93401-06010-07
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT-WASHER (6X10)
93481-06010-07
Superseded by 93401-06010-07
|
$1.65 | ||
|
Unavailable |
|||
|
#38
BOLT-WASHER (6X10)
93491-06010-07
Superseded by 93401-06010-07
|
$1.65 | ||
|
Unavailable |
|||
|
#39
SCREW-WASHER (5X12)
93893-06016-07
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, FLANGE (5MM)
94050-05080
|
$0.38 | ||
|
Unavailable |
|||
|
#41
CLIP, TUBE (B12)
95002-02120
|
$2.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
BOLT, FLANGE (6X25)
95700-06025-08
|
$1.88 | ||
|
Unavailable |
|||
|
#42
BOLT, FLANGE (6X25)
95701-06025-08
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
