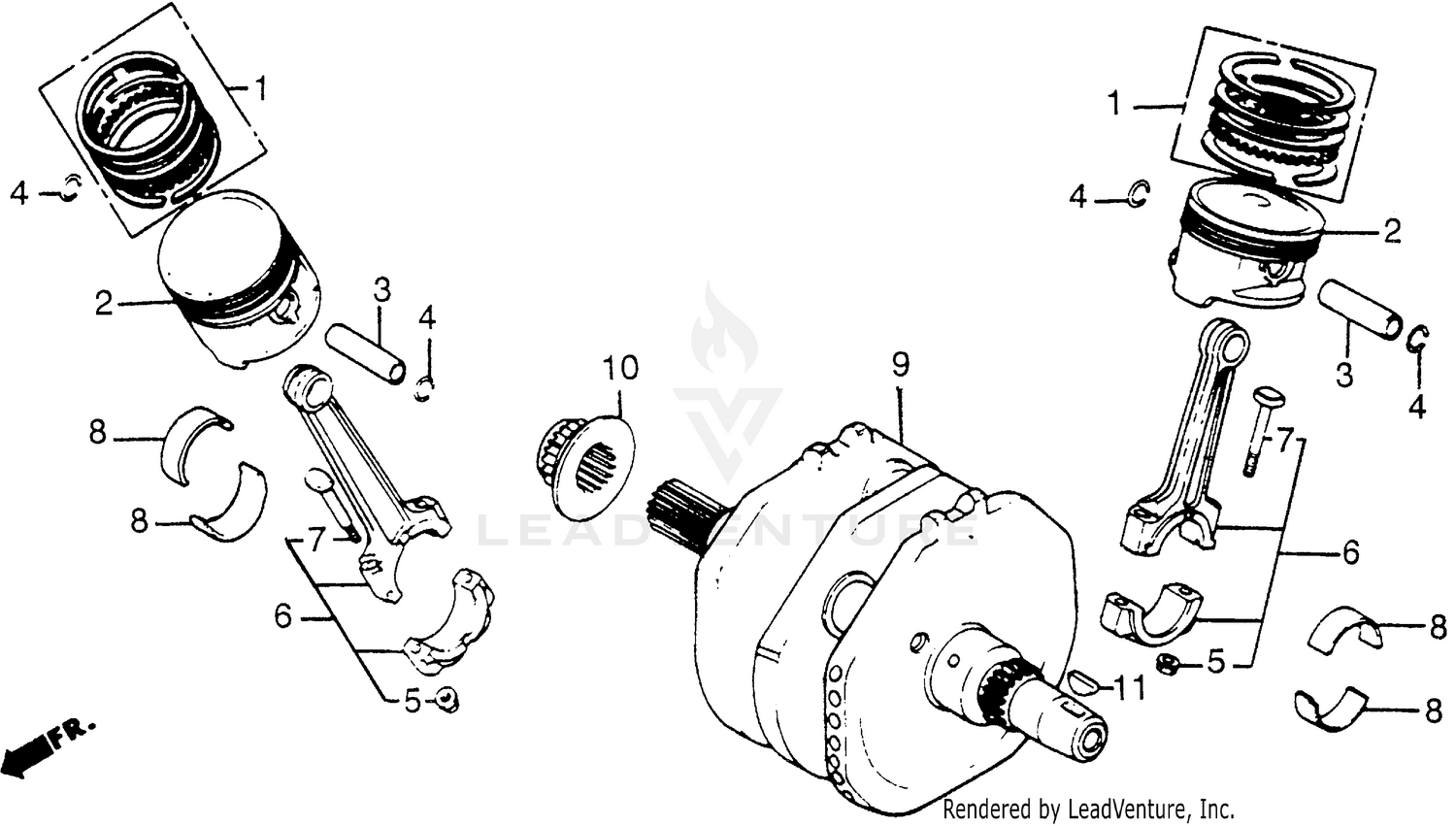

Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING SET, PISTON (STD)
13011-MF5-003
|
$51.53 | ||
|
Unavailable |
|||
|
#1
RING SET, PISTON (STD)
13011-MF5-004
Superseded by 13011-MF5-003
|
$51.53 | ||
|
Unavailable |
|||
|
#1
RING SET, PISTON (OS 0.25)
13021-MF5-003
|
$46.64 | ||
|
Unavailable |
|||
|
#1
RING SET, PISTON (OS 0.25)
13021-MF5-004
Superseded by 13021-MF5-003
|
$46.64 | ||
|
Unavailable |
|||
|
#1
RING SET, PISTON (OS 0.50) (NOT AVAILABLE)
13031-MF5-003
|
$40.11 | ||
|
Unavailable |
|||
|
#1
RING SET, PISTON (OS 0.50) (NOT AVAILABLE)
13031-MF5-004
Superseded by 13031-MF5-003
|
$40.11 | ||
|
Unavailable |
|||
|
#2
PISTON (STD) (NOT AVAILABLE)
13101-MF5-000
|
$76.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON (OS 0.25) (NOT AVAILABLE)
13102-MF5-000
|
$81.75 | ||
|
Unavailable |
|||
|
#2
PISTON (OS 0.50) (NOT AVAILABLE)
13103-MF5-000
|
$81.75 | ||
|
Unavailable |
|||
|
#3
PIN, PISTON
13111-MB0-000
Superseded by 13111-MT3-000
|
$13.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, PISTON
13111-MT3-000
|
$13.40 | ||
|
Unavailable |
|||
|
#4
CLIP, PISTON PIN (18MM)
13112-MF5-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, CONNECTING ROD
13205-634-010
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD ASSY., CONNECTING
13210-MF5-000
Superseded by 13210-MF5-405
|
$221.82 | ||
|
Unavailable |
|||
|
#6
ROD ASSY., CONNECTING
13210-MF5-405
|
$221.82 | ||
|
Unavailable |
|||
|
#7
BOLT, CONNECTING ROD (NAGOYA RASHI)
13213-463-003
|
$16.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, CONNECTING ROD (NAGOYA RASHI)
13213-463-004
Superseded by 13213-463-003
|
$16.87 | ||
|
Unavailable |
|||
|
#8
BEARING A, CONNECTING ROD (BLUE)
13216-MF5-003
Superseded by 13216-MF5-004
|
$16.63 | ||
|
Unavailable |
|||
|
#8
BEARING A, CONNECTING ROD (BLUE)
13216-MF5-004
|
$16.63 | ||
|
Unavailable |
|||
|
#8
BEARING B, CONNECTING ROD (BLACK)
13217-MF5-003
|
$22.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING B, CONNECTING ROD (BLACK)
13217-MF5-004
Superseded by 13217-MF5-003
|
$22.95 | ||
|
Unavailable |
|||
|
#8
BEARING C, CONNECTING ROD (BROWN)
13218-MF5-003
|
$21.94 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING C, CONNECTING ROD (BROWN)
13218-MF5-004
Superseded by 13218-MF5-003
|
$21.94 | ||
|
Unavailable |
|||
|
#9
CRANKSHAFT
13300-MF5-770
|
$535.85 | ||
|
Unavailable |
|||
|
#10
SPROCKET, CAM CHAIN DRIVE
14311-MF5-000
|
$74.07 | ||
|
Unavailable |
|||
|
#11
KEY, WOODRUFF (25X14)
90741-413-000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
