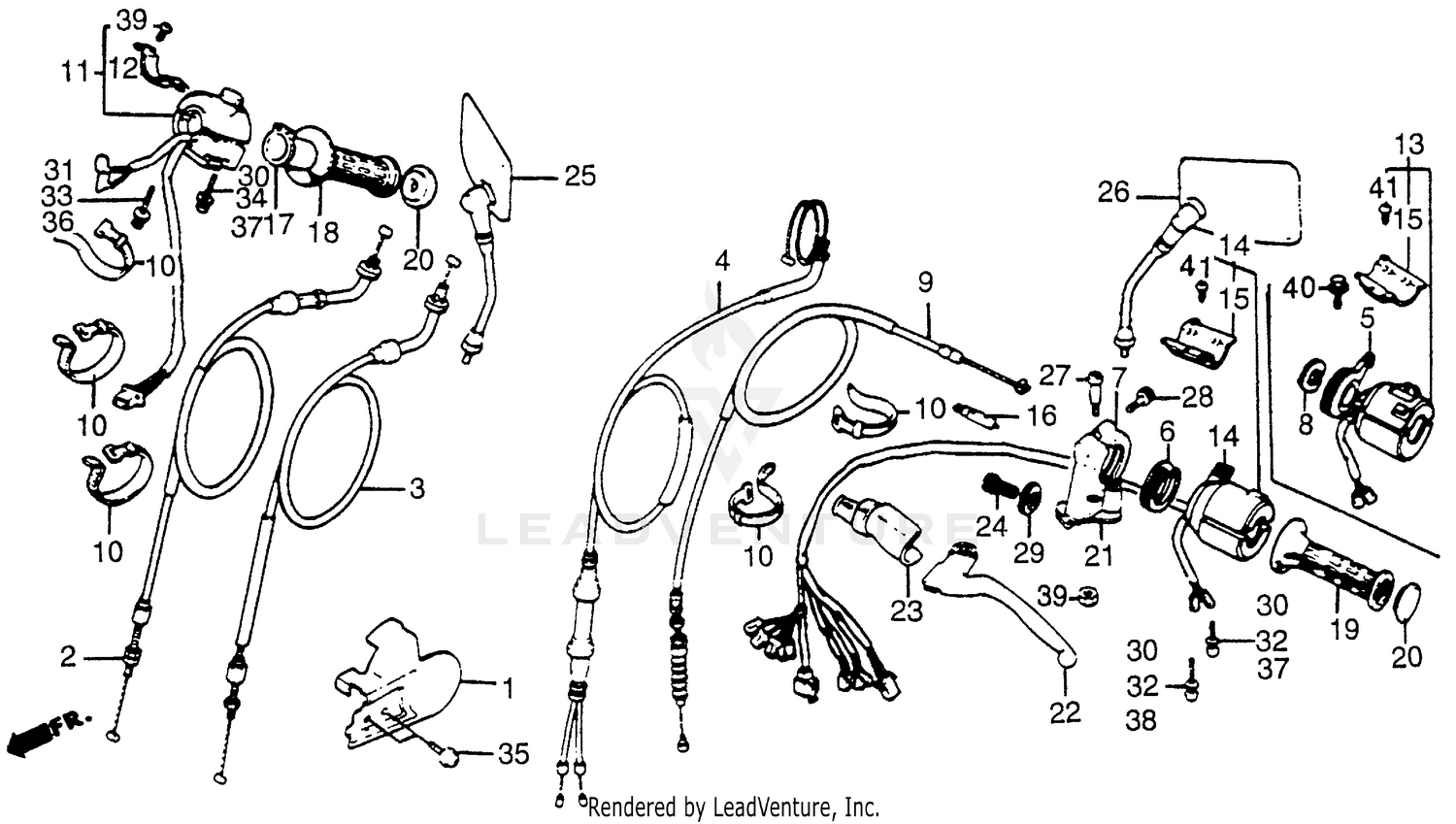

Control Levers + Cables + Switches Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUARD, THROTTLE (NOT AVAILABLE)
16111-MF8-000
|
$13.98 | ||
|
Unavailable |
|||
|
#2
CABLE A, THROTTLE (NOT AVAILABLE)
17910-MF8-000
|
$17.53 | ||
|
Unavailable |
|||
|
#3
CABLE B, THROTTLE (NOT AVAILABLE)
17920-MF8-000
|
$18.36 | ||
|
Unavailable |
|||
|
#4
CABLE, CHOKE (NOT AVAILABLE)
17950-MF8-000
|
$48.69 | ||
|
Unavailable |
|||
|
#5
LEVER, CHOKE
17962-MF8-000
Superseded by 17962-KE7-003
|
$10.25 | ||
|
Unavailable |
|||
|
#8
WASHER, WAVE (22MM) (NOT AVAILABLE)
17964-ME9-000
|
$3.58 | ||
|
Unavailable |
|||
|
#9
CABLE, CLUTCH
22870-MF8-770
Superseded by 22870-MF9-700
|
$19.78 | ||
|
Unavailable |
|||
|
#9
CABLE, CLUTCH
22870-MF9-700
|
$19.78 | ||
|
Unavailable |
|||
|
#10
BAND B1, WIRE
32161-404-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
SWITCH ASSY., STARTER STOP (NOT AVAILABLE)
35130-MF8-770
|
$99.68 | ||
|
Unavailable |
|||
|
#12
PLATE, STOP SWITCH SETTING
35152-KE8-702
Superseded by 35152-KE8-703
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, STOP SWITCH SETTING
35152-KE8-703
|
$8.69 | ||
|
Unavailable |
|||
|
#13
SWITCH ASSY., TURN SIGNAL
35200-MF8-770
|
$118.04 | ||
|
Unavailable |
|||
|
#15
PLATE, TURN SIGNAL SWITCH SETTING
35204-KE8-702
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
SWITCH, FR. LEVER
35330-413-003
|
$26.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE, THROTTLE GRIP
53141-300-010
|
$25.36 | ||
|
Available to order. Add to View Price |
|||
|
#18
GRIP, R. HANDLEBAR
53165-390-780
|
$13.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
GRIP, L. HANDLEBAR
53166-390-780
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP, GRIP RUBBER
53171-MB1-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET, L. HANDLEBAR CONTROL LEVER (NOT AVAILABLE)
53172-MF8-000
|
$56.33 | ||
|
Unavailable |
|||
|
#22
LEVER, L. HANDLEBAR
53178-KV0-670
|
$30.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
LEVER, L. HANDLEBAR
53178-MF8-000
Superseded by 53178-KV0-670
|
$30.33 | ||
|
Unavailable |
|||
|
#23
BOOT, HANDLE LEVER
53180-425-010
|
$22.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, CABLE ADJUSTING
53192-422-000
|
$9.31 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, CABLE ADJUSTING
53192-425-000
Superseded by 53192-422-000
|
$9.31 | ||
|
Unavailable |
|||
|
#25
MIRROR, R. (NOT AVAILABLE)
88110-MF9-000
|
$37.51 | ||
|
Unavailable |
|||
|
#26
MIRROR, L. (NOT AVAILABLE)
88120-MF9-000
|
$42.55 | ||
|
Unavailable |
|||
|
#27
BOLT, L. HANDLEBAR LEVER PIVOT
90113-438-000
|
$9.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, SOCKET (6X23)
90117-MB0-000
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, FIXING
90321-422-000
|
$9.27 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW-WASHER (5X20)
93891-05020-07
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW-WASHER (5X25)
93891-05025-07
|
$0.98 | ||
|
Unavailable |
|||
|
#35
SCREW-WASHER (4X6)
93892-04006-07
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#40
BOLT, FLANGE (6X25)
95700-06025-07
Superseded by 95701-06025-07
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
BOLT, FLANGE (6X25)
95701-06025-07
|
$1.88 | ||
|
Unavailable |
|||
|
#41
SCREW, TAPPING (3X8)
93901-32120
|
$0.87 | ||
|
Unavailable |
|||
