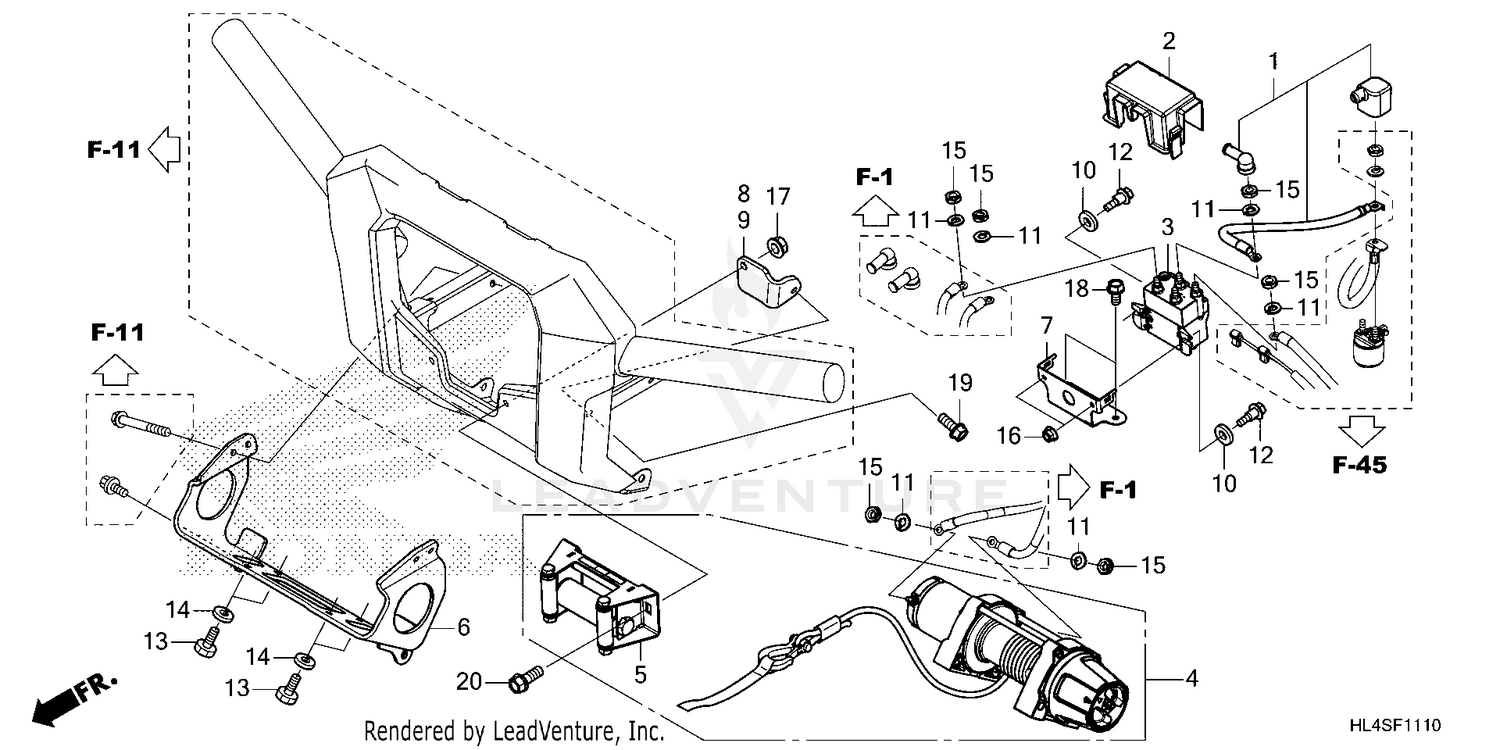

Winch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE, WINCH BATTERY
32206-HL4-AQ0
|
$22.16 | ||
|
Unavailable |
|||
|
#2
WINCH MOUNT
35886-HL4-A00
Superseded by 08L72-HL4-AK1
|
$409.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
CNTRCTR,WINCH KIT
35970-HL4-AQ0
Superseded by 08L94-HL1-200R2
|
$106.82 | ||
|
Unavailable |
|||
|
#4
WINCH KIT
38970-HL4-AQ1
Superseded by 08L71-HL3-A43
|
$534.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
WINCH KIT
68970-HL4-AQ0
Superseded by 08L71-HL3-A43
|
$534.95 | ||
|
Unavailable |
|||
|
#6
WINCH MOUNT
88910-HL4-A01
Superseded by 08L72-HL4-AK1
|
$409.95 | ||
|
Unavailable |
|||
|
#7
WINCH MOUNT
88920-HL4-F00
Superseded by 08L72-HL4-AK1
|
$409.95 | ||
|
Unavailable |
|||
|
#8
BRACKET COMP R
88940-HL4-AQ0
|
$11.58 | ||
|
Unavailable |
|||
|
#9
BRACKET COMP L
88945-HL4-AQ0
|
$11.58 | ||
|
Unavailable |
|||
|
#10
WINCH MOUNT
88977-HL3-A40
Superseded by 08L72-HL4-AK1
|
$409.95 | ||
|
Unavailable |
|||
|
#11
WASHER, SPRING (6MM) (Honda Code 1310549)
90052-ZA0-800
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
WINCH MOUNT
90113-HL3-A40
Superseded by 08L72-HL4-AK1
|
$409.95 | ||
|
Unavailable |
|||
|
#13
WINCH MOUNT
90143-HL4-A01
Superseded by 08L72-HL4-AK1
|
$409.95 | ||
|
Unavailable |
|||
|
#14
WINCH MOUNT
90505-HL4-A01
Superseded by 08L72-HL4-AK1
|
$409.95 | ||
|
Unavailable |
|||
|
#15
NUT, HEX. (6MM)
94002-06390-0S
|
$1.06 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE (5MM)
94050-05080
|
$0.38 | ||
|
Unavailable |
|||
|
#17
NUT, FLANGE (10MM)
90303-428-900
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, FLANGE (10MM)
94050-10070
Superseded by 90303-428-900
|
$4.20 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X20)
95701-08020-08
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (10X25)
95701-10025-07
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
