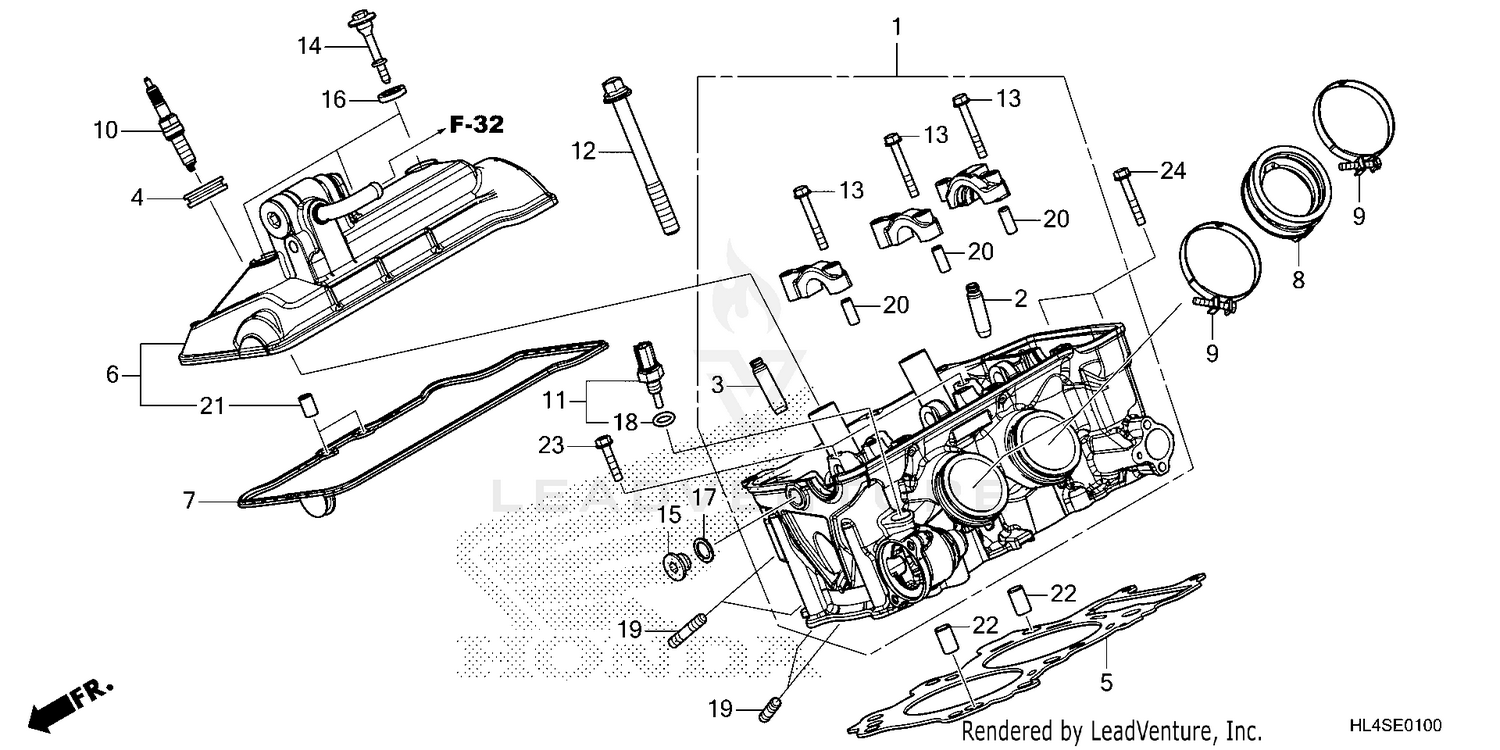

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY.
12010-HL4-AJ0
|
$1,987.70 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-HL4-305
|
$19.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, EX. VALVE (OVER SIZE)
12205-HL4-305
|
$19.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, PLUG TUBE
12229-HL4-000
|
$10.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CYLINDER HEAD
12251-HL6-A01
|
$55.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
COVER, CYLINDER HEAD
12300-HL4-AJ0
|
$410.78 | ||
|
Unavailable |
|||
|
#7
GASKET, HEAD COVER
12391-HL4-000
|
$31.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
INSULATOR, THROTTLE BODY
16211-HL4-000
|
$21.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, INSULATOR
16218-HL4-000
|
$10.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
S/PLG (LMAR7M-9S)
31909-HL4-AJ1
|
$22.13 | ||
|
Unavailable |
|||
|
#11
SENSOR ASSY., WATER TEMPERATURE
37870-KZR-601
|
$10.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-WASHER (12X118)
90007-HL4-003
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X45.5)
90017-MA6-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEAD COVER
90017-MAL-600
|
$16.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HYDRAULIC LASH ADJUSTER STOPPER
90032-MG9-000
|
$11.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
RUBBER, MOUNTING (Honda Code 3699139)
90543-MV9-670
|
$6.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, SEALING (14MM)
90544-KF0-000
|
$4.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
O-RING (9.5X1.9)
91307-KZR-600
|
$1.65 | ||
|
Unavailable |
|||
|
#18
O-RING (9.5X1.9) (PANASONIC)
91307-PLC-004
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT 2, STUD (8X28)
92900-08028-0E
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, DOWEL (8X20) (Honda Code 1417369)
94301-08200
|
$2.35 | ||
|
Unavailable |
|||
|
#21
PIN, DOWEL (10X16) (Honda Code 0058206)
94301-10160
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
PIN A, DOWEL (14X20)
94301-14200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X30)
95701-06030-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)
95701-06040-00
|
$1.97 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
