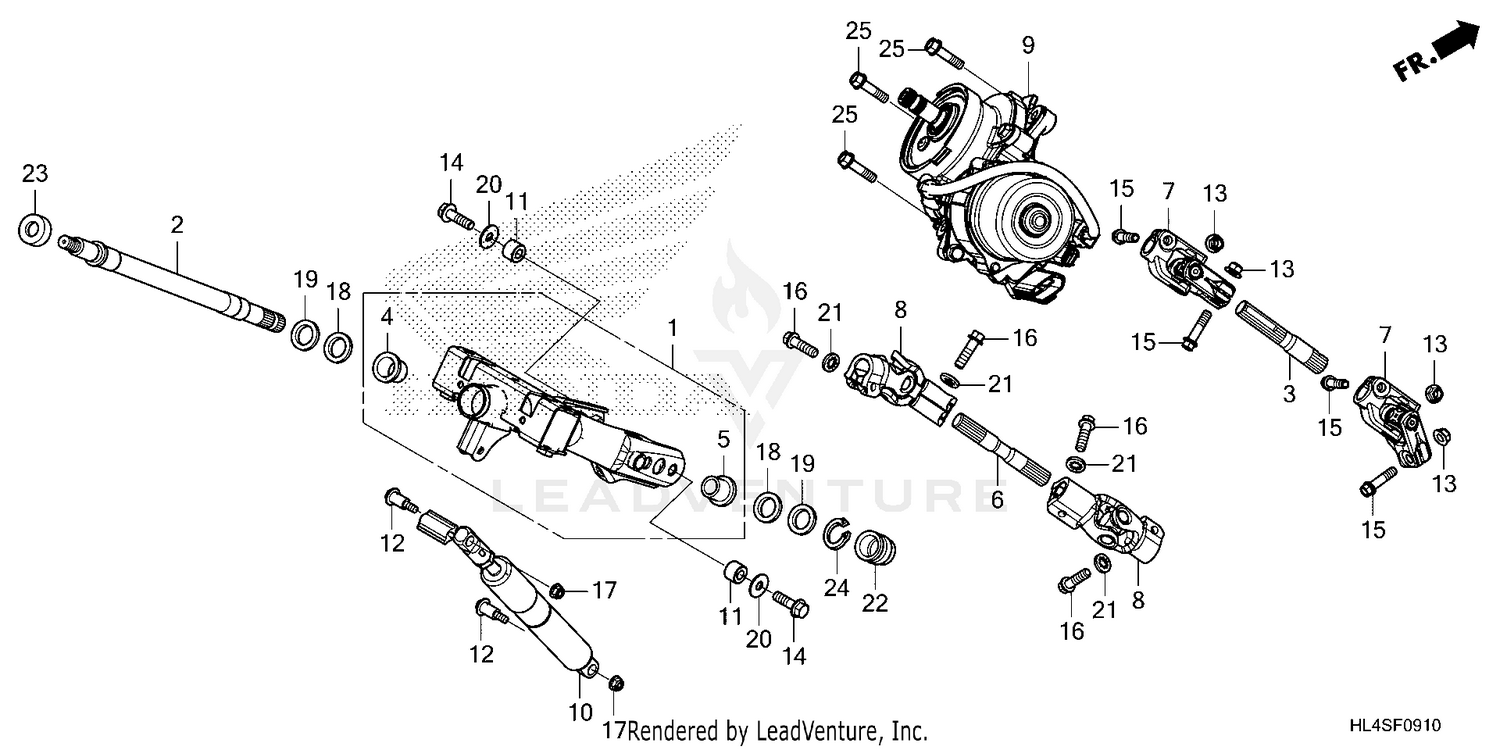

Steering Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLUMN SUB-ASSY., STEERING
53255-HL6-A40
|
$147.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT, STEERING (UPPER)
53314-HL4-A00
|
$54.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, STRG (LOWER)
53315-HL4-AK0
|
$54.71 | ||
|
Unavailable |
|||
|
#4
BUSH, STEERING SHAFT (UPPER)
53316-HL3-A00
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH, STEERING SHAFT (LOWER)
53317-HL3-A00
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, STRG MIDDLE
53318-HL8-A10
|
$133.51 | ||
|
Unavailable |
|||
|
#7
JOINT COMP
53323-HL4-AK1
|
$86.00 | ||
|
Unavailable |
|||
|
#8
JOINT B, STEERING
53323-SW5-003
|
$193.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
UNIT ASSY., EPS
53600-HL4-AK1
|
$959.55 | ||
|
Unavailable |
|||
|
#10
DAMPER ASSY., STEERING
53700-HL6-A02
|
$43.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, STEERING PIVOT
53711-HL4-A00
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SPECIAL (6X28)
90110-HL4-A00
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, SELF-LOCK (8MM)
90115-659-003
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (8X27)
90133-HL4-A00
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STEERING YOKE
90135-HL4-AK0
|
$0.35 | ||
|
Unavailable |
|||
|
#16
BOLT, STEERING YOKE (8X28) (NIPPON SEIKO)
90135-SB0-003
|
$0.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, U (6MM)
90301-MG3-000
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, THRUST (20X1.00)
90454-428-000
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, WAVE (20MM)
90501-HL4-A00
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER A, HANDLE HOLDER SETTING
90505-425-000
Superseded by 90524-030-000
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER A, HANDLE HOLDER SETTING
90524-030-000
|
$1.58 | ||
|
Unavailable |
|||
|
#21
WASHER, TOOTHED LOCK
90511-671-003
|
$0.12 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SEAL, STEERING SHAFT (LOWER)
91257-HL3-A01
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAL, STEERING SHAFT (UPPER)
91262-HL3-A01
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP (OUTER) (20MM)
94510-20000
|
$1.38 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (8X32)
95701-08032-08
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
