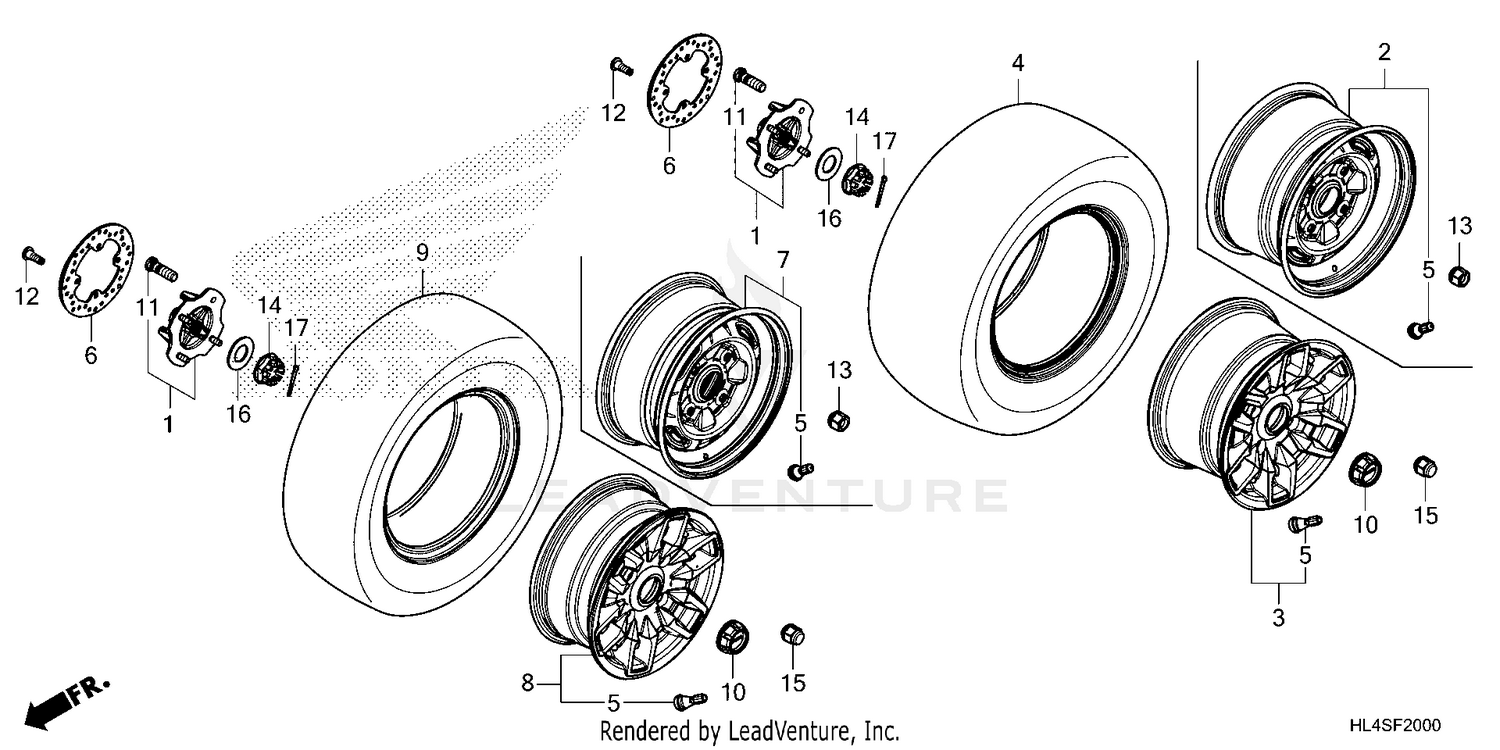

Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB SUB-ASSY., WHEEL
42615-HL4-AK0
|
$338.91 | ||
|
Unavailable |
|||
|
#3
WHEEL SUB-ASSY., RR.
42650-HL4-AQ0
|
$275.13 | ||
|
Unavailable |
|||
|
#4
TIRE (27X11.00R14)
42711-HL4-A91
|
$129.48 | ||
|
Available to order. Add to View Price |
|||
|
#5
VALVE, RIM (TR412)
42753-HL3-A00
|
$6.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
DISK, BRAKE
43251-HL4-A01
|
$25.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
WHEEL SUB-ASSY., FR.
44650-HL4-AQ0
|
$280.31 | ||
|
Unavailable |
|||
|
#9
TIRE (27X9.00R14)
44711-HL4-A91
|
$157.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, WHEEL CENTER
44732-HR6-A60
|
$9.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, WHEEL (ROCKNEL FASTENER)
90113-SA0-006
Superseded by 90113-SM1-005
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, WHEEL (ROCKNEL FASTENER)
90113-SM1-005
|
$3.35 | ||
|
Unavailable |
|||
|
#12
BOLT, DISK (8X24)
90116-HP6-A00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, AXLE (22MM)
90306-HL4-AK0
|
$11.78 | ||
|
Unavailable |
|||
|
#15
NUT, WHEEL
90307-MCA-000
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLAIN (43MM)
90506-HL4-AK0
|
$1.71 | ||
|
Unavailable |
|||
|
#17
PIN, COTTER (4.0X40)
94201-40400
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
