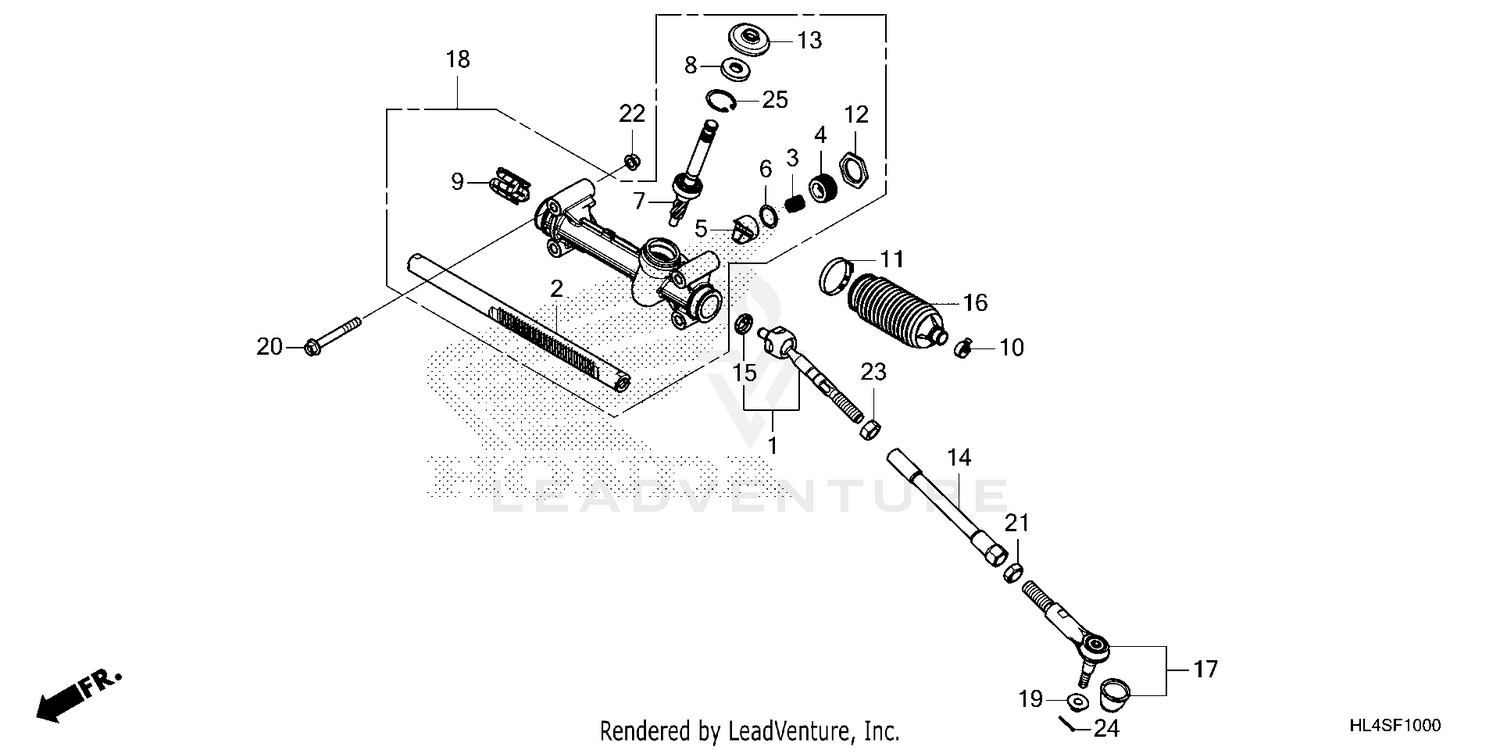

Steering Gear Box@tie Rod Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
END SET, TIE ROD
53010-HL4-AK1
|
$48.04 | ||
|
Unavailable |
|||
|
#2
RACK, STEERING
53402-HL4-A01
|
$117.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, RACK GUIDE PRESSURE
53413-SH3-003
|
$6.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, RACK GUIDE
53414-679-013
|
$32.77 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, STEERING RACK
53416-HL3-A00
|
$14.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, DISK
53418-SC2-003
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
PINION, STEERING
53421-HL4-A01
|
$54.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
DUST SEAL, STEERING PINION (ARAI)
53426-671-003
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, RACK END
53430-SR3-000
|
$22.92 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND A, BELLOWS
53448-HL3-A00
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND B, BELLOWS
53449-HL3-A00
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, LOCK
53458-SE0-003
Superseded by 53458-S01-A51
|
$9.13 | ||
|
Unavailable |
|||
|
#13
COVER, PINION DUST
53502-S3A-J01
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#14
TIE ROD
53521-HL4-AK0
|
$41.56 | ||
|
Unavailable |
|||
|
#15
WASHER, TIE ROD LOCK
53536-SR3-000
|
$7.63 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOOT A, TIE ROD
53537-HL3-A00
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
END COMP, TIE ROD
53540-HL4-AK1
|
$30.95 | ||
|
Unavailable |
|||
|
#18
G/BOX COMP, STRG
53840-HL4-AK1
|
$526.20 | ||
|
Unavailable |
|||
|
#19
NUT, FLANGE (10MM)
90002-T2A-A00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (10X77)
90129-KF0-000
|
$18.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, HEX. (16MM) (LEFT HAND THREAD)
90301-HL6-A00
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, HEX. (14MM)
94001-14280-0S
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, COTTER (2.0X22)
94201-20200
Superseded by 94201-29220
|
$1.08 | ||
|
Unavailable |
|||
|
#24
PIN, COTTER (2.0X22) PIN, COTTER (2.0X25)
94201-20220
|
$1.08 | ||
|
Unavailable |
|||
|
#24
PIN, COTTER (2.0X35)
94201-20250
Superseded by 94201-20350
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, COTTER (2.0X35)
94201-20280
Superseded by 94201-20350
|
$1.08 | ||
|
Unavailable |
|||
|
#24
PIN, COTTER (2.0X35)
94201-20320
Superseded by 94201-20350
|
$1.08 | ||
|
Unavailable |
|||
|
#24
PIN, COTTER (2.0X35) PIN, COTTER (2.0X22)
94201-20350
|
$1.08 | ||
|
Unavailable |
|||
|
#24
PIN, COTTER (2.0X22)
94201-29220
|
$1.08 | ||
|
Unavailable |
|||
|
#25
CIRCLIP (INNER) (35MM)
94520-35000
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
