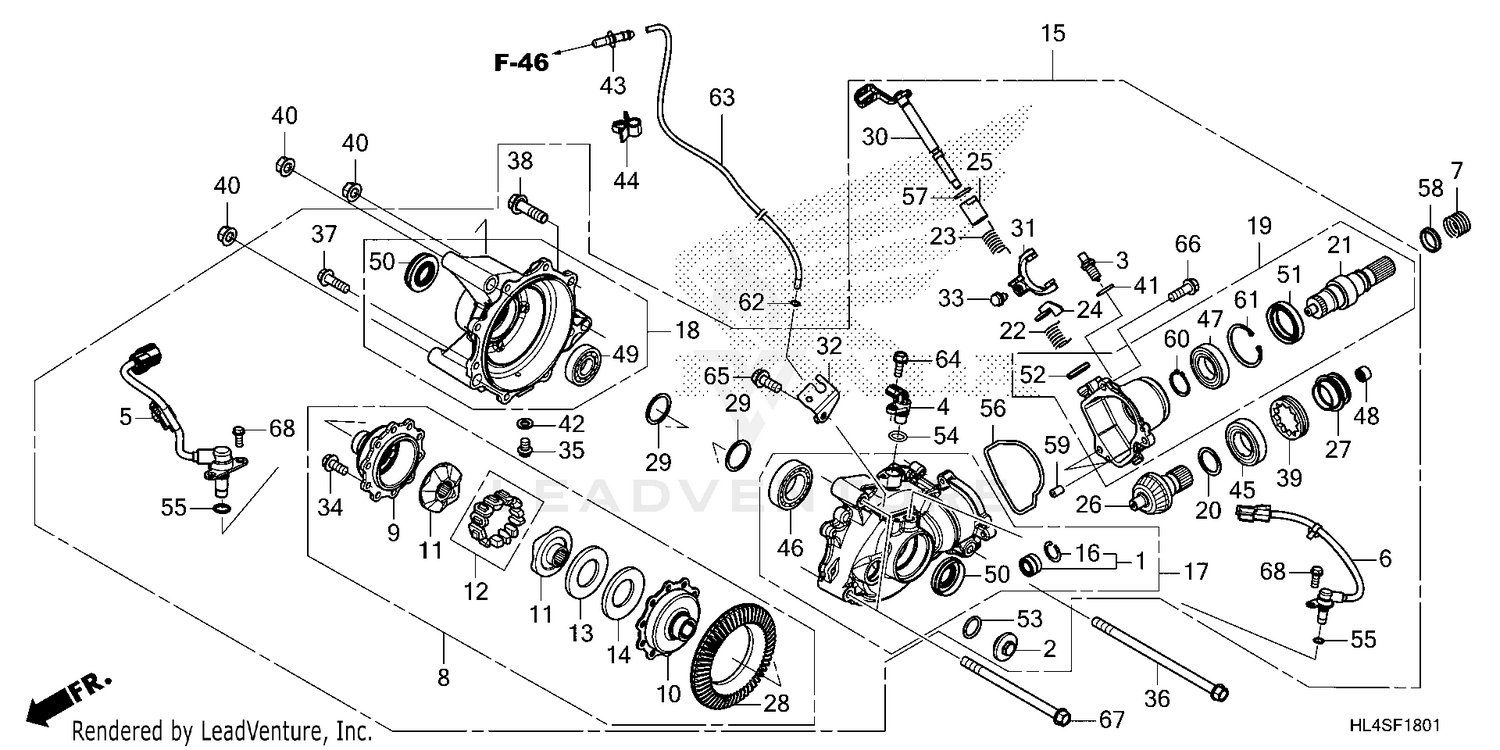

Front Final Gear (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING SET, NEEDLE
06910-HR6-B00
|
$38.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE ADJ.
12361-035-000
Superseded by 12361-300-000
|
$12.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH ASSY., NEUTRAL
35600-HN7-003
|
$23.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
SENSOR ASSY., SPEED (TDK-EPC)
37700-KZR-601
|
$53.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
SENSOR, R. FR. WHEEL SPEED
38520-HL4-F41
|
$215.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
SENSOR, L. FR. WHEEL SPEED
38525-HL4-F41
|
$138.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, FR. PROPELLER SHAFT
40415-HL4-A00
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIFFERENTIAL ASSY., FR.
41200-HL4-F41
|
$464.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
CASE, FR. DIFFERENTIAL
41211-HL6-A01
|
$117.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, FR. DIFFERENTIAL CASE
41212-HL4-A01
|
$47.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAM, FACE (66) (A)
41231-HL4-A01
|
$25.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
FOLLOWER SET, CAM
41240-HL4-A01
|
$54.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM A (1.3)
41251-HL4-A01
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM B (1.4)
41252-HL4-A01
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM C (1.5)
41253-HL4-A01
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM D (1.6)
41254-HL4-A01
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM E (1.7)
41255-HL4-A01
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, DIFFERENTIAL SIDE CONED
41261-HL4-A01
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, FR. FINAL
41400-HL4-AQ3
|
$990.80 | ||
|
Unavailable |
|||
|
#16
RING, STOPPER
41405-HA7-670
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#17
CASE SUB-ASSY., FR.
41411-HL4-AQ2
|
$106.51 | ||
|
Unavailable |
|||
|
#18
COVER SUB-ASSY., FR.
41412-HL6-AF0
|
$144.96 | ||
|
Unavailable |
|||
|
#19
CASE SUB-ASSY., FR. CLUTCH
41413-HL4-A00
|
$105.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM A, PINION GEAR (1.64)
41447-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM B, PINION GEAR (1.70)
41448-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM C, PINION GEAR (1.76)
41449-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM D, PINION GEAR (1.82)
41451-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM E, PINION GEAR (1.88)
41452-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM F, PINION GEAR (1.94)
41453-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM G, PINION GEAR (2.00)
41454-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM H, PINION GEAR (2.06)
41455-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM I, PINION GEAR (2.12)
41456-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM J, PINION GEAR (2.18)
41457-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#21
JOINT, FR. FINAL CLUTCH
41502-HL4-A00
|
$24.24 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, FR. FINAL CLUTCH
41503-HP5-600
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, FR. FINAL CLUTCH LOCK
41504-HP5-600
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#24
STOPPER, FR. FINAL CLUTCH
41505-HP5-600
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR, FR. FINAL CLUTCH
41506-HL1-A00
|
$27.84 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR, FR. PINION (13T)
41521-HL4-A00
|
$251.18 | ||
|
Available to order. Add to View Price |
|||
|
#27
SLEEVE, FR. FINAL CLUTCH
41527-HR0-F00
|
$47.36 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR, FR. RING (44T)
41531-HL4-A00
|
$124.69 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER A, RING GEAR (1.82)
41540-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER B, RING GEAR (1.88)
41541-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER C, RING GEAR (1.94)
41542-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER D, RING GEAR (2.00)
41543-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER E, RING GEAR (2.06)
41544-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER F, RING GEAR (2.12)
41545-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER G, RING GEAR (2.18)
41546-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER H, RING GEAR (2.24)
41547-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER I, RING GEAR (2.30)
41548-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER X, RING GEAR (1.14)
41561-HL4-A00
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER Y, RING GEAR (1.20)
41562-HL4-A00
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER Z, RING GEAR (1.76)
41563-HL4-A00
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER J, RING GEAR (1.80)
41564-HL4-A00
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER K, RING GEAR (1.86)
41565-HL4-A00
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER L, RING GEAR (1.92)
41566-HL4-A00
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER M, RING GEAR (1.98)
41567-HL4-A00
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER N, RING GEAR (2.04)
41568-HL4-A00
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#30
SHAFT, FR. FINAL CLUTCH
41540-HL4-A00
|
$58.25 | ||
|
Available to order. Add to View Price |
|||
|
#31
FORK, FR. FINAL CLUTCH
41550-HL4-A00
|
$85.82 | ||
|
Available to order. Add to View Price |
|||
|
#32
STAY, CLUTCH CABLE
41712-HL4-F40
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, SPECIAL (6MM)
90102-HL4-A00
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (10X23)
90104-HL4-A00
|
$30.08 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, SEALING (8MM)
90109-371-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (10X192)
90121-HL4-A00
|
$0.91 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (8X27)
90133-HP5-600
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE (10X35)
90134-HP5-600
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, LOCK (64MM)
90242-MB0-000
|
$39.40 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, NEUTRAL SWITCH
90443-KR0-000
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER (8MM)
90471-580-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
JOINT, BREATHER TUBE
90652-HF7-003
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#44
CLIP, WIRE HARNESS (6MM) (WHITE)
90654-SA4-003
|
$0.23 | ||
|
Available to order. Add to View Price |
|||
|
#45
BEARING, RADIAL BALL (6206)
91051-HL4-A01
|
$10.78 | ||
|
Available to order. Add to View Price |
|||
|
#46
BEARING (35X68X16)
91052-HL6-AF1
|
$17.53 | ||
|
Unavailable |
|||
|
#47
BEARING, RADIAL BALL (32X58X13)
91055-HP5-601
|
$16.85 | ||
|
Available to order. Add to View Price |
|||
|
#48
BEARING, NEEDLE (12X18X12)
91056-HP5-601
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#49
BEARING (35X60X14)
91062-HL6-AF1
|
$13.55 | ||
|
Unavailable |
|||
|
#50
OIL SEAL,53X70X7
91254-HL4-F43
|
$8.62 | ||
|
Available to order. Add to View Price |
|||
|
#51
OIL SEAL (42X58X12)
91254-HR3-A21
|
$9.33 | ||
|
Available to order. Add to View Price |
|||
|
#52
DUST SEAL (22X28X5)
91254-KS7-831
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
O-RING (30.8MM) (Honda Code 0001065)
91302-001-020
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#54
O-RING (14.8X2.4) (ARAI)
91303-KF0-003
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#55
O-RING (1.5X9.5)
91306-MG3-000
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#55
O-RING (1.5X9.5)
91306-105-690
Superseded by 91306-MG3-000
|
$2.43 | ||
|
Unavailable |
|||
|
#56
GASKET, FR. FINAL CLUTCH COVER
91351-HL4-A00
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#57
O-RING (8.5X1.5) (L. SIDE ONLY)
91352-GAZ-930
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#58
O-RING, SPECIAL
91362-HL4-A01
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#59
PIN A, DOWEL (6X10) (YAMADA)
94301-06100
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
CIRCLIP (OUTER) (32MM)
94510-32000
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#61
CIRCLIP (INNER) (58MM)
94520-58000
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#62
CLIP, TUBE (C6.5)
95002-35000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#63
BULK HOSE, VACUUM (3.5X1000) (3.5X860) (BULK HOSE: 95005-35001-30M)
95005-35001-30M
|
$10.45 | ||
|
Available to order. Add to View Price |
|||
|
#64
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#65
BOLT, FLANGE (8X20)
95701-08020-08
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#66
BOLT, FLANGE (8X25)
95701-08025-08
|
$0.77 | ||
|
Unavailable |
|||
|
#67
BOLT, FLANGE (10X150)
95801-10150-08
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#68
BOLT, FLANGE (6X14)
96001-06014-08
|
$0.98 | ||
|
Unavailable |
|||
