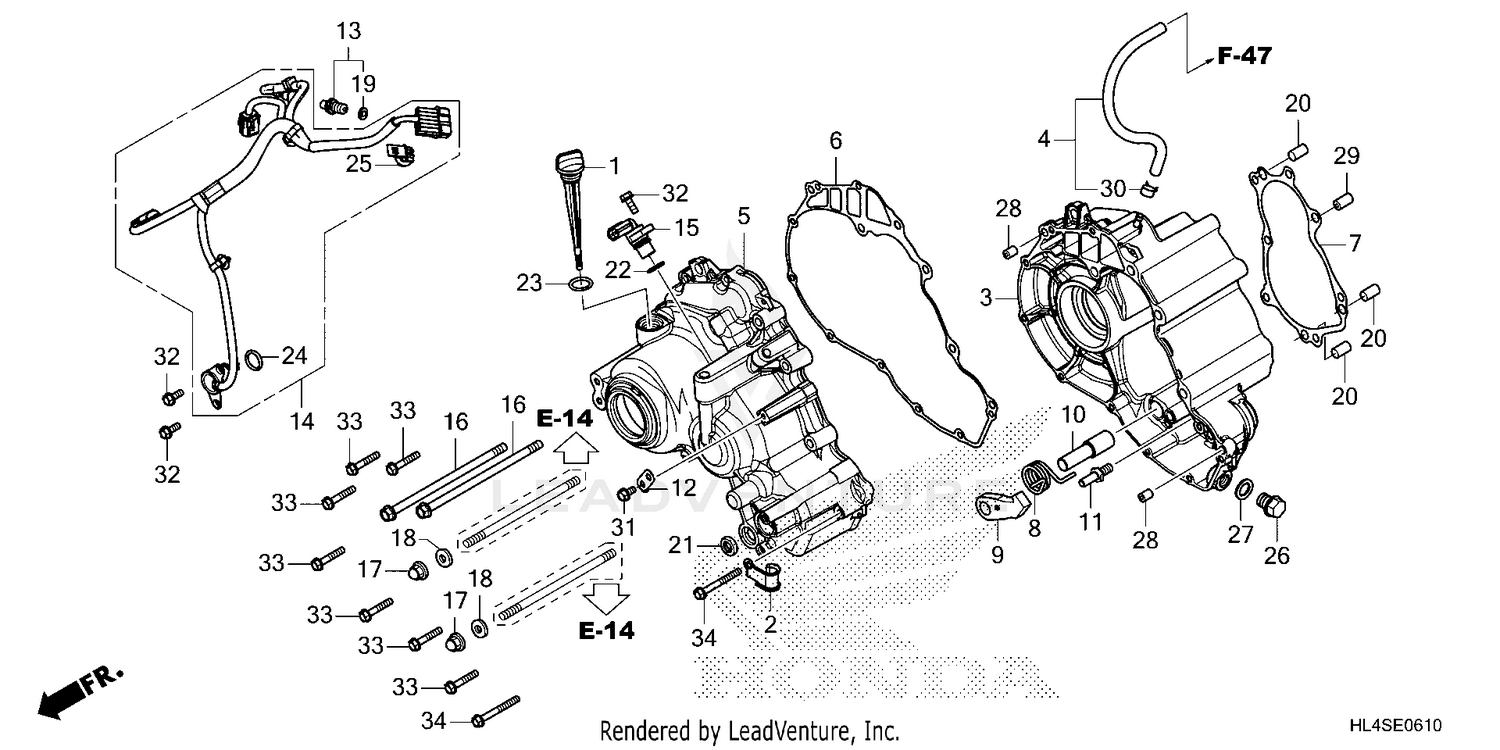

Sub-transmission Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DIPSTICK, OIL
15650-HL4-000
|
$17.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP, DRAIN HOSE
19530-HL4-000
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
CASE, SUB-TRANSMISSION
21100-HL6-A00
|
$352.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE ASSY., BREATHER
21111-HL4-010
|
$16.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER COMP
21200-HL6-A02
|
$282.48 | ||
|
Unavailable |
|||
|
#5
COVER, SUB-TRANS
21200-HL6-A01
|
$282.48 | ||
|
Unavailable |
|||
|
#6
GASKET, SUB-TRANSMISSION COVER
21205-HL4-003
|
$22.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, SUB-TRANSMISSION CASE
21206-HL6-A01
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, PARKING PAWL
24552-HL4-000
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
PAWL, P BRK
24561-HL4-BA0
|
$28.84 | ||
|
Unavailable |
|||
|
#9
PAWL, PARKING BRAKE
24561-PL4-020
|
$30.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT, PARKING
24562-HL4-000
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, GEARSHIFT RETURN SPRING (NOT AVAILABLE)
24652-HL4-000
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, HARNESS CLIP
32156-HL4-000
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
SWITCH SET, NEUTRAL
35600-HL4-305
|
$24.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
SW, SUBDRUM POSITION
35759-HL8-A01
|
$139.93 | ||
|
Unavailable |
|||
|
#15
SENSOR ASSY., SPEED (TDK-EPC)
37700-KZR-601
|
$53.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (8X165)
90017-HL4-000
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, HEX. CAP (8MM)
90307-MJE-D00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SEALING (8MM)
90441-286-000
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, OIL BOLT (10.2X15X1.4)
90545-MC0-000
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, DOWEL (10X16) (Honda Code 3906971)
90701-MV9-670
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (12X20X5) (ARAI)
91205-KF0-003
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (14.8X2.4) (ARAI)
91303-KF0-003
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (18X3) (ARAI)
91307-KF0-003
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING (17.0X2.5) (ARAI)
91333-KE5-003
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING (17.0X2.5) (ARAI)
91333-567-010
Superseded by 91333-KE5-003
|
$2.55 | ||
|
Unavailable |
|||
|
#25
CLIP, CONNECTOR (DARK BLUE)
91535-STK-003
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, DRAIN PLUG (14MM)
92800-14000
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, DRAIN PLUG (14MM)
94109-14000
|
$0.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
PIN, DOWEL (10X16) (Honda Code 0058206)
94301-10160
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
CLAMP, TUBE (D10)
95002-41000-08
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X55)
95701-06055-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
