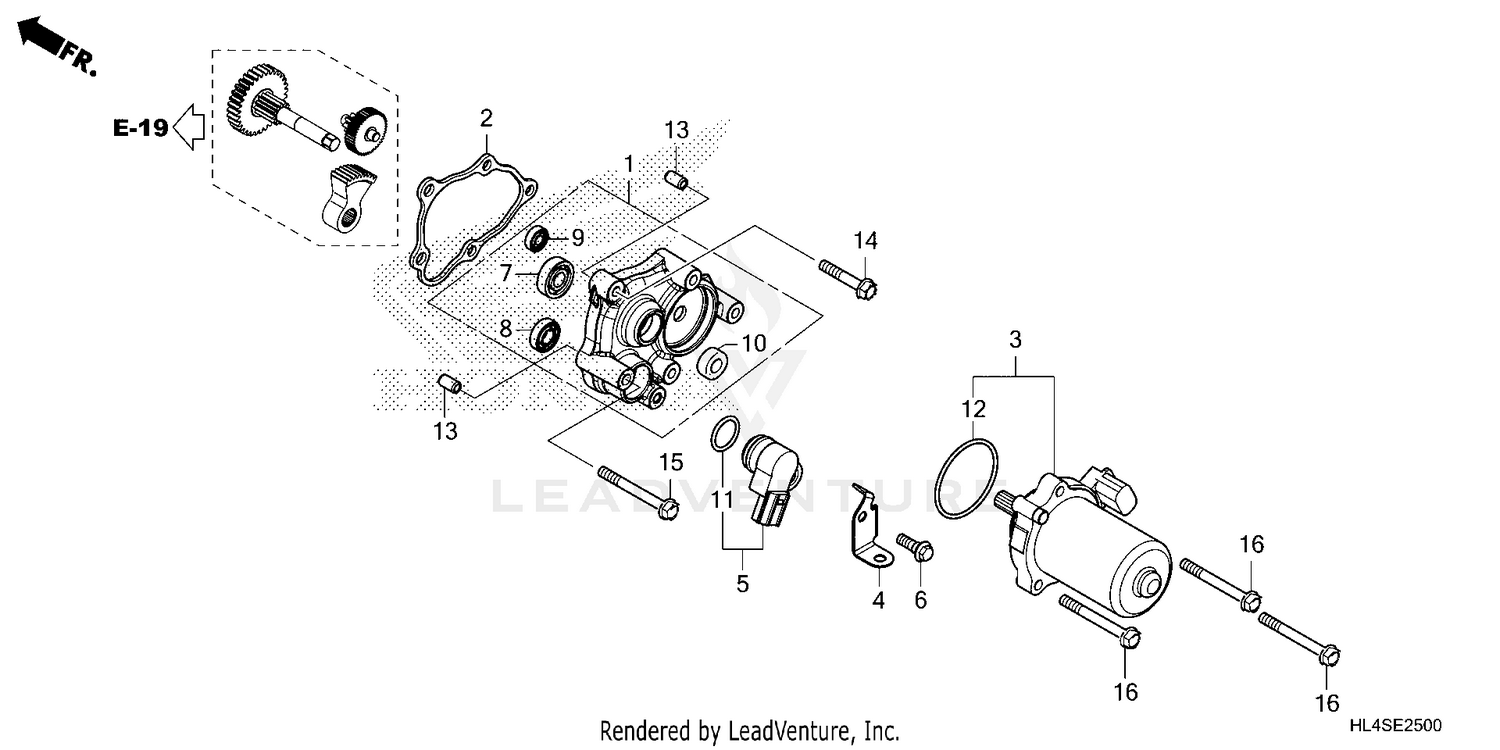

Control Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, REDUCTION GEAR
11335-HL4-000
|
$84.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, REDUCTION COVER
11398-HL4-003
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
MOTOR ASSY., CONTROL
31300-HP5-602
|
$311.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, HARNESS CLIP (B)
32162-HL4-000
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
SENSOR ASSY. (40DEG)
38810-HL8-A01
|
$199.16 | ||
|
Unavailable |
|||
|
#6
BOLT, KNOCK (6MM)
90011-MGE-D00
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, RADIAL BALL (609ZZ)
91001-HL4-003
|
$14.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, RADIAL BALL (699ZZ)
91025-MGS-D21
|
$12.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, RADIAL BALL (696ZZ)
91027-MGS-D21
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL (9X18X7) (ARAI)
91201-HN8-003
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING (16.5X2.5)
91310-MGE-D01
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING, CONTROL MOTOR
91351-HM8-A51
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X55)
95701-06055-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X55)
95701-06055-00
|
$2.27 | ||
|
Unavailable |
|||
