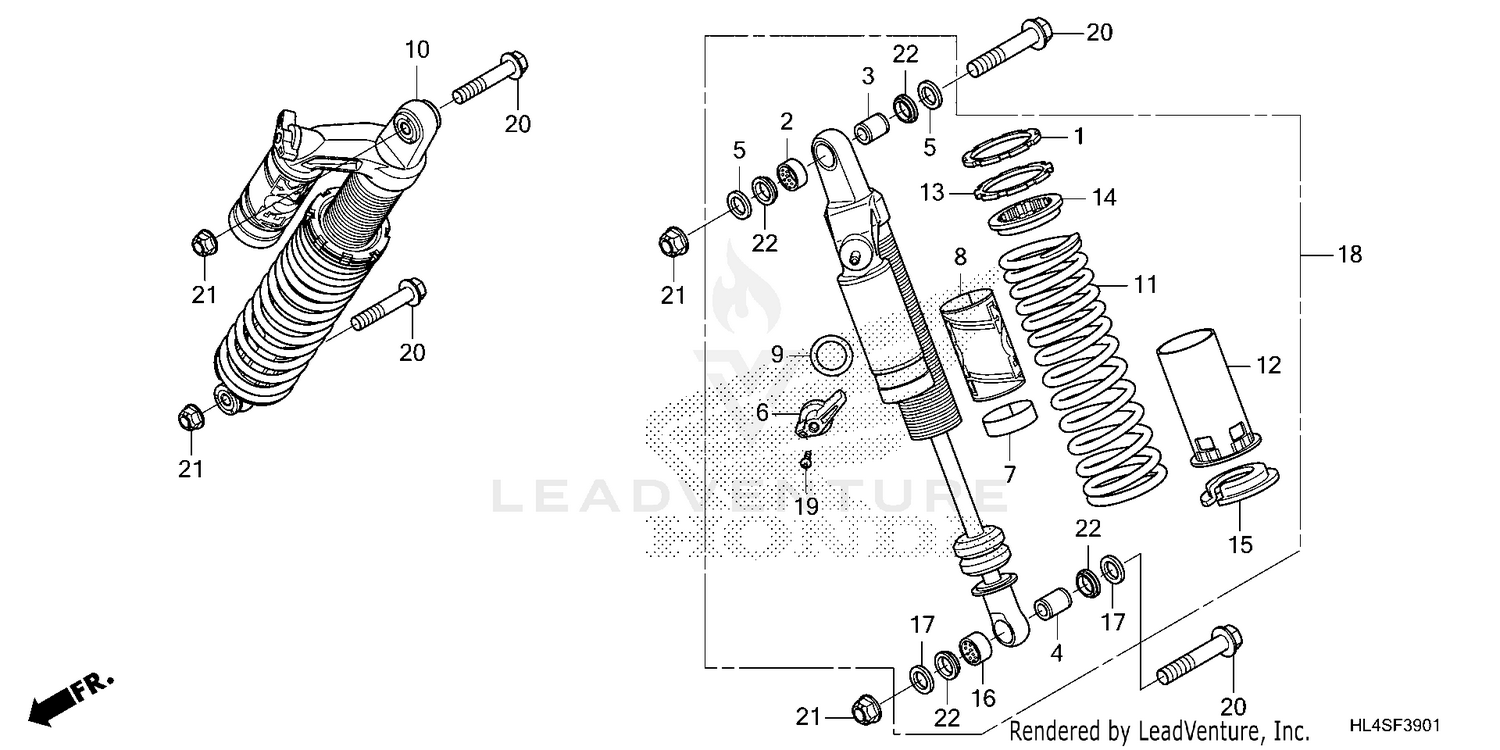

Rear Shock Absorber (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING, BACK-UP PRELOAD
51403-HL4-F41
|
$16.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSHING, EYELET
51421-HL4-F41
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
SLEEVE, EYELET
51422-HL4-F41
|
$14.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
SLEEVE, EYELET
51423-HL4-F41
|
$15.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER, EYELET
51424-HL4-F41
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
KNOB, DAMPING ADJUST
51426-HL4-F41
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
DECAL, BAND (TYPE1)
51427-HL6-A01ZA
|
$17.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
DECAL, RESERVOIR (TYPE1)
51428-HL6-A01ZA
|
$10.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
DECAL, BASE VALVE
51429-HL4-F41
|
$11.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION ASSY., R. RR. (TYPE1)
52400-HL4-AH1ZA
|
$699.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, RR. SHOCK ABSORBER
52401-HL4-AH1
|
$222.37 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUARD, SHAFT
52402-HL4-F41
|
$38.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING, PRELOAD
52404-HL4-F41
|
$11.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
ADAPTER, SPRING
52405-HL4-F41
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
RETAINER, SPRING (LOWER)
52408-HL4-F41
|
$76.69 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSHING, EYELET
52421-HL4-F41
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER, EYELET
52422-HL4-F41
|
$5.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
CUSHION ASSY., L. RR. (TYPE1)
52500-HL4-AH1ZA
|
$684.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, TORX
90110-HL4-F41
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (12X60) (NOT AVAILABLE USE REPLACEMENT 90173-SM4-000) (NA USE ALT:90173-SM4-000)
90163-S73-000
|
$0.64 | ||
|
Unavailable |
|||
|
#21
NUT, SELF-LOCK (12MM) (CLINCH) (SATO RASHI)
90215-SB0-003
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL
91353-HL4-F41
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
