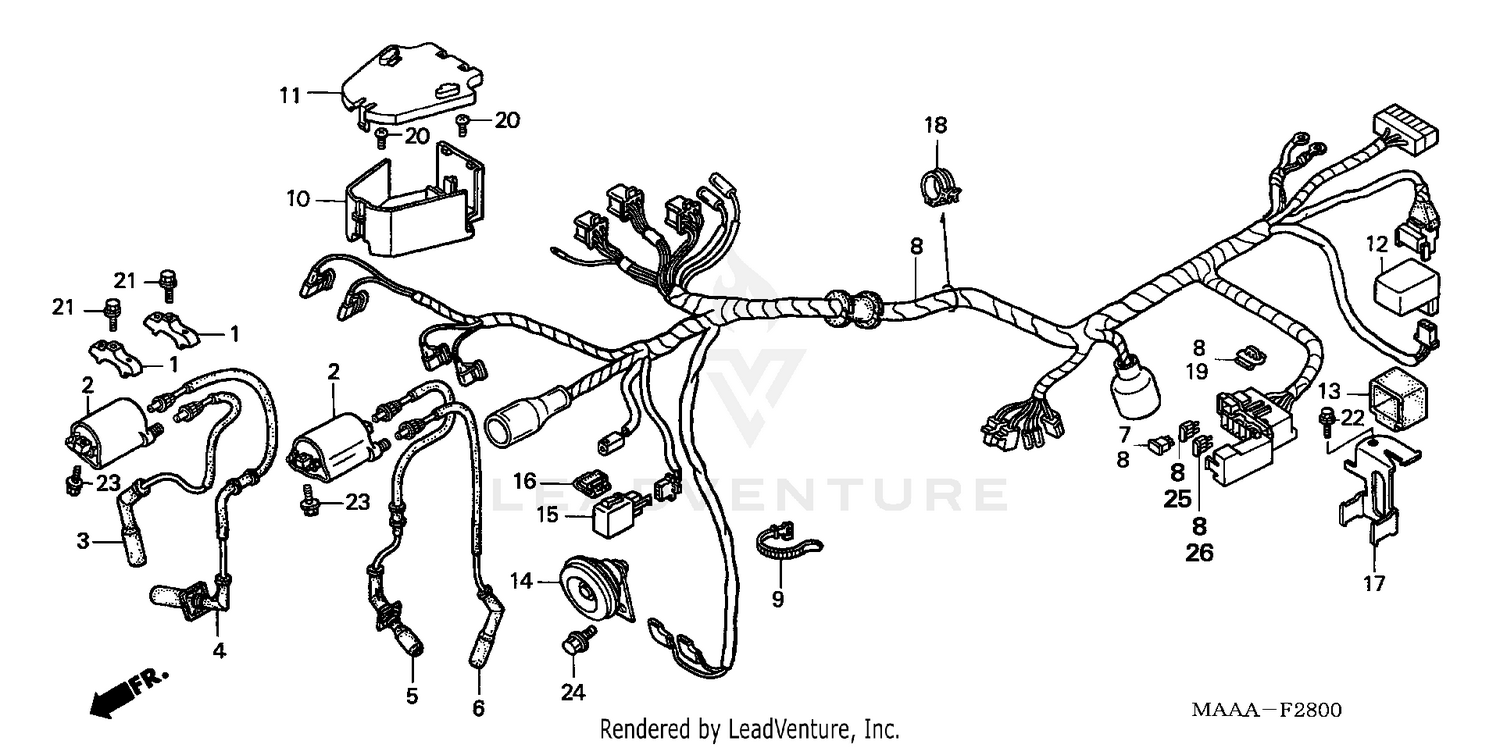

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, IGNITION COIL
30505-MM8-000
|
$14.47 | ||
|
Unavailable |
|||
|
#2
COIL, IGNITION
30510-MCC-003
|
$108.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP ASSY. 1, IGNITION
30751-MAH-003
|
$73.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP ASSY. 2, IGNITION
30752-MAH-003
|
$84.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP ASSY. 3, IGNITION
30753-MM8-770
|
$75.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP ASSY. 4, IGNITION
30754-MAH-003
|
$79.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
WIRE HARNESS
32100-MAA-B20
|
$118.08 | ||
|
Unavailable |
|||
|
#9
BAND B1, CABLE
32161-404-610
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOX, FR. CONNECTOR
32510-MM8-000
|
$33.03 | ||
|
Unavailable |
|||
|
#11
COVER, FR. CONNECTOR BOX
32511-MM8-000
|
$17.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
RELAY, FUEL CUT (SHINDENGEN)
36100-MN4-008
|
$115.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
SUSPENSION, FUEL CUT RELAY
36101-MB1-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
HORN (LOW)
38120-MAH-003
|
$92.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
RELAY, TURN SIGNAL (TATEISHI)
38301-MF5-771
|
$98.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
SUSPENSION, TURN SIGNAL RELAY
38306-MF5-770
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAY, STARTER MAGNETIC SWITCH
50330-MAH-000
|
$19.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, CABLE (30MM)
90690-GHB-681
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, CONNECTOR (ORANGE)
91580-SM4-003
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (5X12)
93500-05012
Superseded by 93500-05012-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (5X12)
93500-05012-0A
|
$0.95 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN (5X12)
93500-05012-00
Superseded by 93500-05012-0A
|
$0.95 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN (5X12)
93500-05012-1A
Superseded by 93500-05012-0A
|
$0.95 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X20)
95701-06020-08
|
$0.40 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (8X12)
95701-08012-07
|
$1.88 | ||
|
Unavailable |
|||
|
#25
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#26
FUSE, MINI (20A)
98200-42000
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
