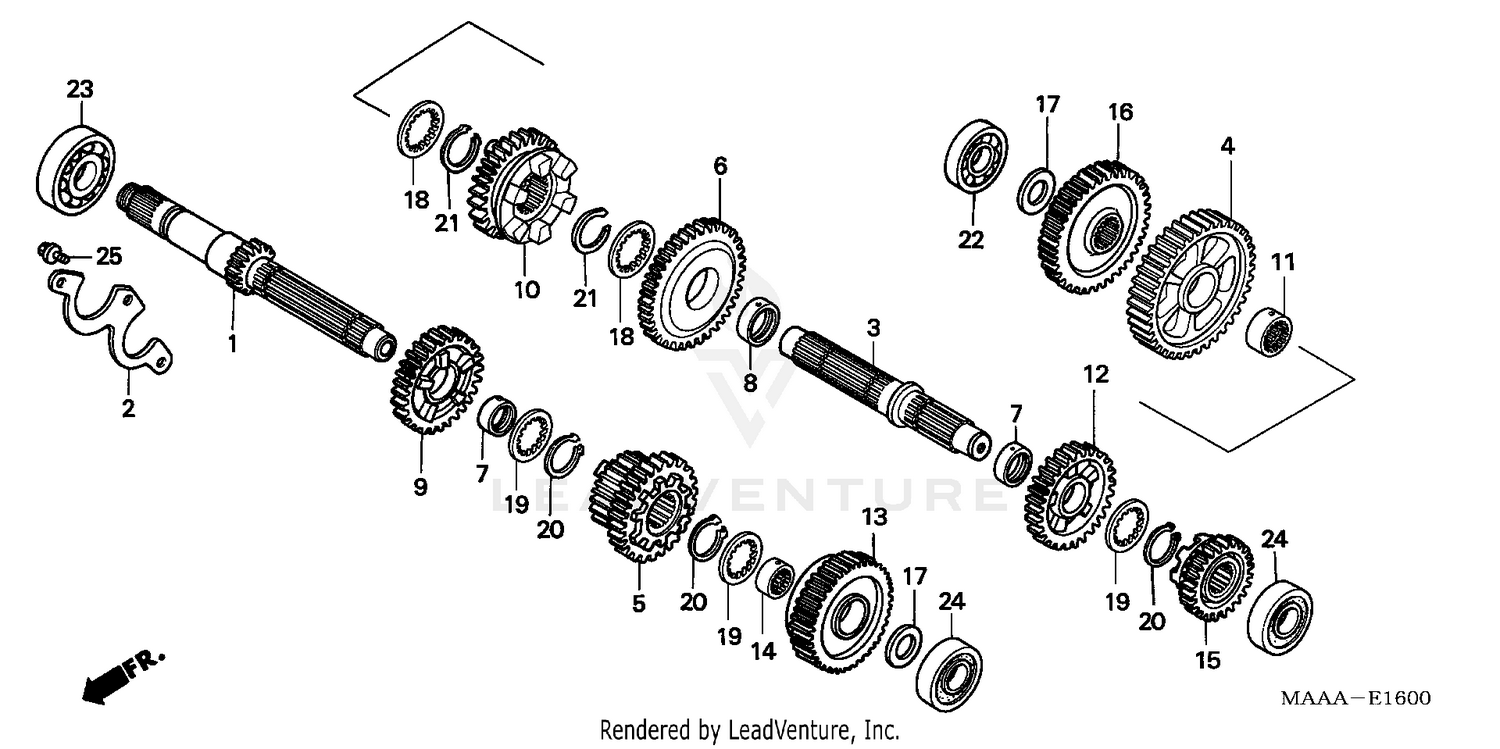

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (16T)
23211-MCK-A00
|
$171.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, BEARING
23212-MK7-670
|
$15.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
COUNTERSHAFT
23220-MCK-A00
|
$160.63 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, COUNTERSHAFT FIRST (38T)
23421-MCK-A00
|
$108.99 | ||
|
Unavailable |
|||
|
#5
GEAR, MAINSHAFT SECOND & FOURTH (23T/36T)
23431-MCK-A00
|
$132.58 | ||
|
Unavailable |
|||
|
#6
GEAR, COUNTERSHAFT SECOND
23441-MBH-000
|
$117.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR (28MM)
23442-ML7-000
|
$31.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR (30X11.2)
23442-MS2-610
|
$27.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, MAINSHAFT THIRD (27T)
23451-MAA-610
|
$182.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, COUNTERSHAFT THIRD (28T)
23461-MCK-A00
|
$118.56 | ||
|
Unavailable |
|||
|
#11
COLLAR, SPLINE (30X11)
23462-MAT-000
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, COUNTERSHAFT FOURTH (32T)
23481-MAA-610
|
$157.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, MAINSHAFT FIFTH (30T)
23491-MCK-A00
|
$116.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, SPLINE (28X17)
23492-MCK-A00
|
$13.43 | ||
|
Unavailable |
|||
|
#15
GEAR, COUNTERSHAFT FIFTH (23T)
23501-MCK-A00
|
$119.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, FINAL DRIVE (36T)
23725-MCK-G00
|
$111.31 | ||
|
Unavailable |
|||
|
#17
WASHER (20X37X2)
90404-KK0-000
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPLINE (30X36X1.5)
90452-MAT-000
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPLINE (28X34X1.5)
90452-MR7-000
|
$7.24 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP (OUTER) (28MM)
90601-422-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP (30MM)
90604-MG8-000
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (20X52X15) (TOYO)
91003-MG8-003
|
$45.78 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (305/28) (TOYO)
91004-MG8-003
|
$38.51 | ||
|
Unavailable |
|||
|
#24
BEARING, SEALED BALL (20X52X15) (TOYO)
91005-MG8-003
|
$33.69 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
