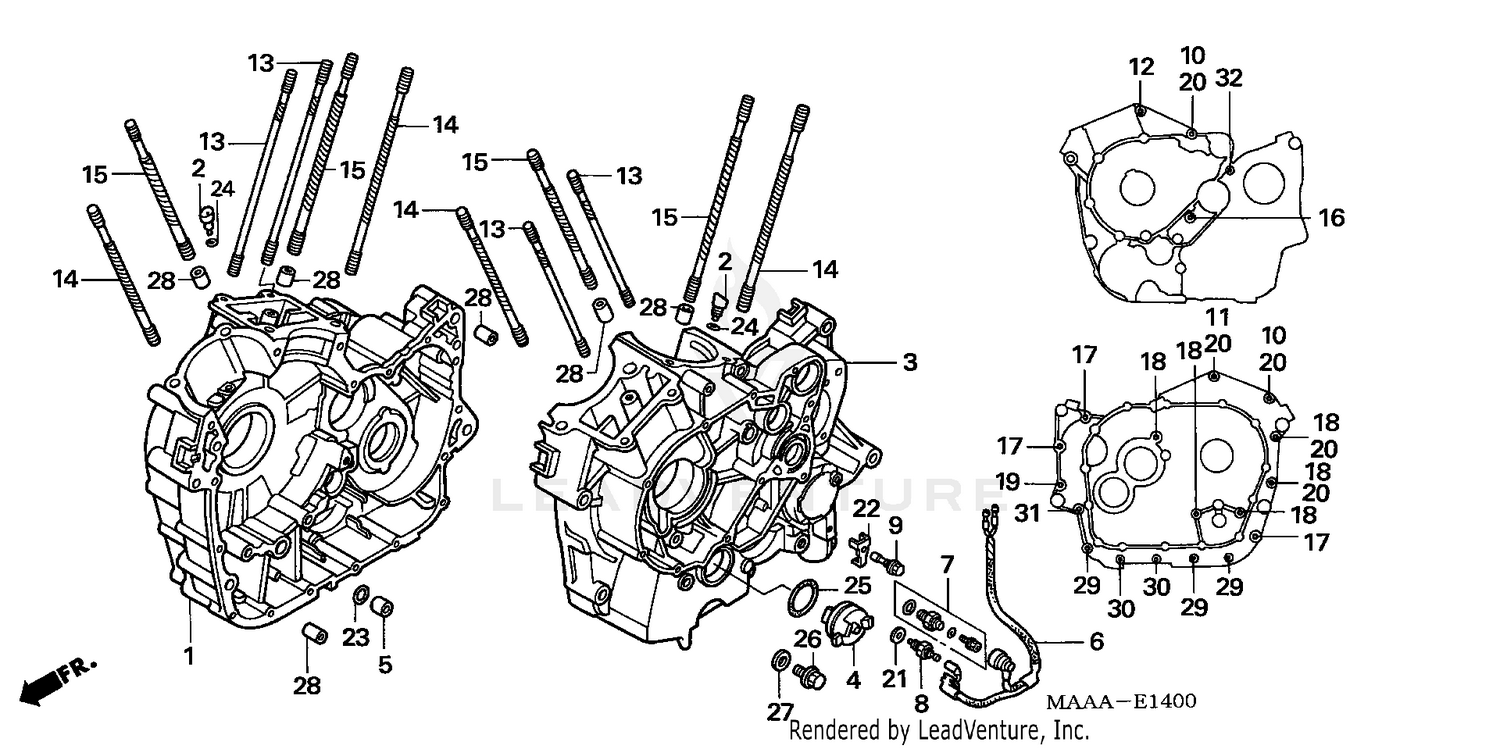

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R.
11100-MAA-A00
|
$1,010.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
JET, OIL
11140-MAA-A00
|
$13.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANKCASE, L.
11200-MAA-A30
|
$942.41 | ||
|
Unavailable |
|||
|
#4
PLUG, L. CRANKCASE
11211-MK7-770
|
$35.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, O-RING
15155-300-000
|
$4.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SUB-HARNESS A
32101-MCK-A00
|
$28.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY., OIL PRESSURE (DENSO)
35500-MJ4-024
|
$51.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWITCH ASSY., NEUTRAL (TOYO)
35600-KE8-003
|
$22.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, ORIFICE (1.6MM)
90002-MG8-000
|
$20.56 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (8X125)
90005-MCK-U50
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (8X136)
90006-MCK-U50
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SPECIAL (6X12)
90007-MCK-U50
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, STUD (8X259)
90011-MAH-000
|
$13.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, STUD (10X269)
90012-MBC-003
|
$20.38 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD (10X25)
90013-MBC-003
|
$21.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, UBS (8X110)
90030-MS9-750
|
$12.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (8X45)
90052-MM8-680
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (8X80)
90053-MM8-680
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X100)
90054-MM8-680
|
$5.31 | ||
|
Unavailable |
|||
|
#20
WASHER, SEALING (8MM)
90441-MG8-000
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, NEUTRAL
90443-MJ6-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, SEALING (6MM)
90444-MG8-000
|
$5.43 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (14.8X2.4) (ARAI)
91303-KF0-003
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (14.8X2.4) (NOK)
91356-MA6-005
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING (5X1.7) (ARAI)
91305-MG7-003
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING (35.3X2.4) (NOK)
91351-MG7-004
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, DRAIN PLUG (14MM)
92800-14000
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, DRAIN PLUG (14MM)
94109-14000
|
$0.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
PIN, DOWEL (14X20)
94301-14200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X50)
95701-06050-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X90)
95701-06090-00
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (10X105)
95701-10105-00
|
$3.96 | ||
|
Unavailable |
|||
|
#32
BOLT, FLANGE (6X100)
96001-06100-00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
