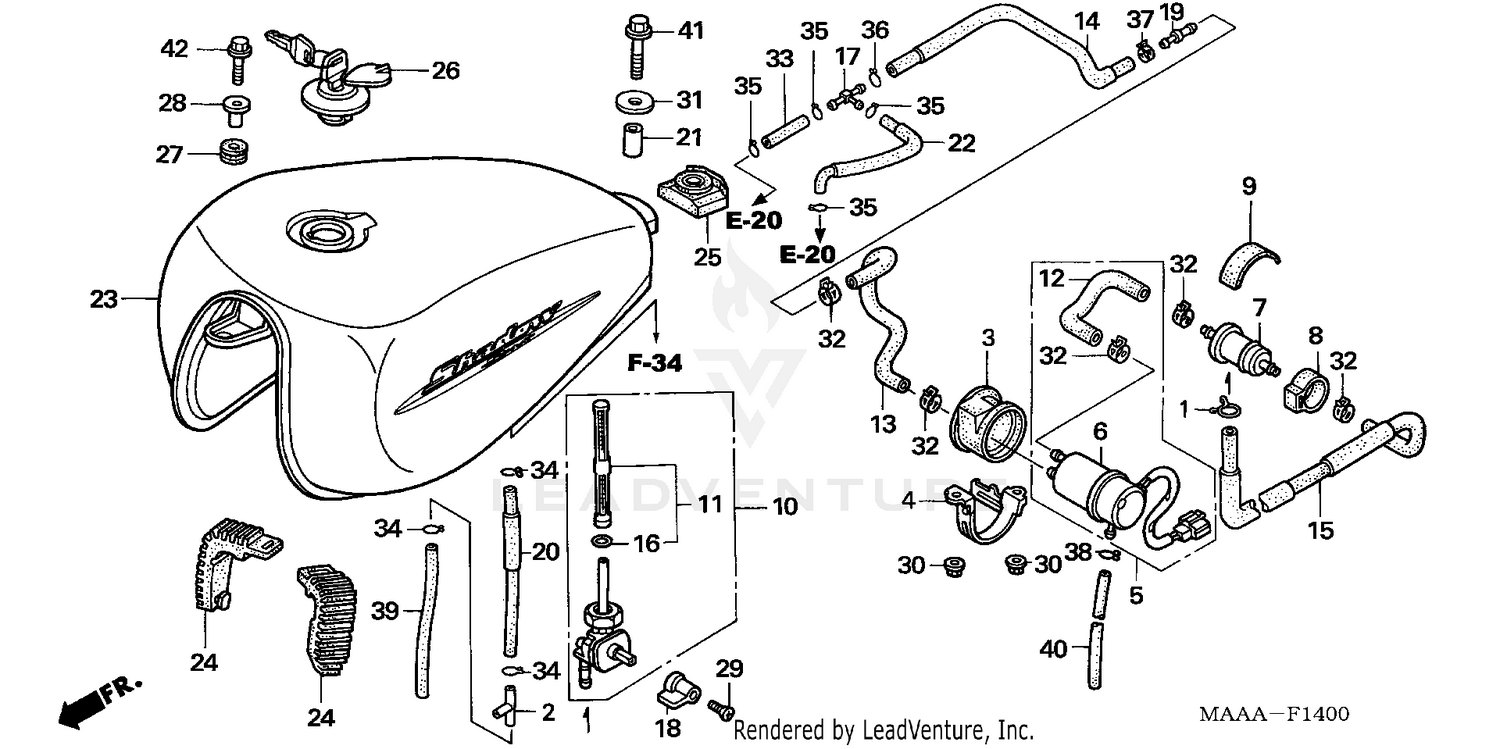

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, OIL DRAIN TUBE
15771-KV6-000
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
T-JOINT
16180-195-731
|
$15.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, FUEL PUMP
16701-MAA-000
|
$24.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAND, FUEL PUMP
16703-MCK-A00
|
$166.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
PUMP, FUEL
16710-MCK-305
Superseded by 16710-MCK-315
|
$178.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
PUMP, FUEL
16710-MCK-315
|
$178.11 | ||
|
Unavailable |
|||
|
#6
PUMP, FUEL (MSDS)
16710-MAH-752
Superseded by 16710-MAH-753
|
$205.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
PUMP, FUEL
16710-MAH-753
|
$205.02 | ||
|
Unavailable |
|||
|
#7
FILTER, FUEL
16900-MG8-003
|
$28.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CUSHION, FUEL STRAINER
16905-MG7-000
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR
16911-MAH-300
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
PETCOCK ASSY.
16950-MAH-023
|
$125.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SCREEN SET, FUEL STRAINER
16952-MAH-003
|
$43.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE B, FUEL
16952-MCK-A01
|
$10.39 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE C, FUEL
16953-MCK-A00
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE D, FUEL
16954-MAH-000
|
$20.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE A, FUEL
16955-MCK-A00
|
$32.44 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
16958-KM9-005
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#17
JOINT, FUEL TUBE
16961-MK7-000
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER, PETCOCK
16963-MY5-610
|
$17.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
JOINT, FUEL TUBE
16966-MR1-000
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE, FUEL TANK BREATHER
17467-MAH-000
|
$24.80 | ||
|
Unavailable |
|||
|
#21
COLLAR, FUEL TANK SETTING
17515-MAH-000
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#22
TUBE, L. CARBURETOR FUEL
17515-MG8-000
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#23
TANK SET, FUEL *PB356M* (WL) (NOVA BLUE METALLIC)
17520-MAA-B00ZD
|
$1,859.43 | ||
|
Available to order. Add to View Price |
|||
|
#23
TANK SET, FUEL *NH1* (WL) (BLACK)
17520-MAA-B00ZA
|
$2,116.38 | ||
|
Unavailable |
|||
|
#24
RUBBER, FR. FUEL TANK
17611-MM8-000
|
$34.85 | ||
|
Available to order. Add to View Price |
|||
|
#25
RUBBER, RR. FUEL TANK
17613-MM8-000
|
$45.89 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAP, FUEL FILLER
17620-KR3-751
Superseded by 17620-KR3-753
|
$85.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
RUBBER, RADIATOR MOUNTING
19051-GE2-000
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR, SETTING
61104-422-000
|
$8.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
SCREW, OVAL (5X12)
90111-MZ5-000
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, U (6MM)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
WASHER, TANK MOUNTING
90455-896-700
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLAMP, CANISTER HOSE
90682-SA0-671
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#33
BULK HOSE, FUEL (5.5X3000) (5.5X65)
95001-55003-60M
|
$57.33 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP, TUBE (B8)
95002-02080
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
CLIP, TUBE (B10)
95002-02100
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
CLIP, TUBE (B12)
95002-02120
|
$2.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
CLAMP, TUBE (D12)
95002-41200-08
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLIP, TUBE (C9)
95002-50000
|
$1.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
BULK HOSE, VACUUM (4.5X1000) (4.5X370)
95005-45001-10M
|
$28.42 | ||
|
Available to order. Add to View Price |
|||
|
#40
BULK HOSE, VACUUM (5X3000) (5X300)
95005-50003-30M
|
$25.27 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, FLANGE (8X35)
95701-08035-07
|
$1.60 | ||
|
Unavailable |
|||
|
#42
BOLT, FLANGE (6X25)
96001-06025-07
|
$1.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
