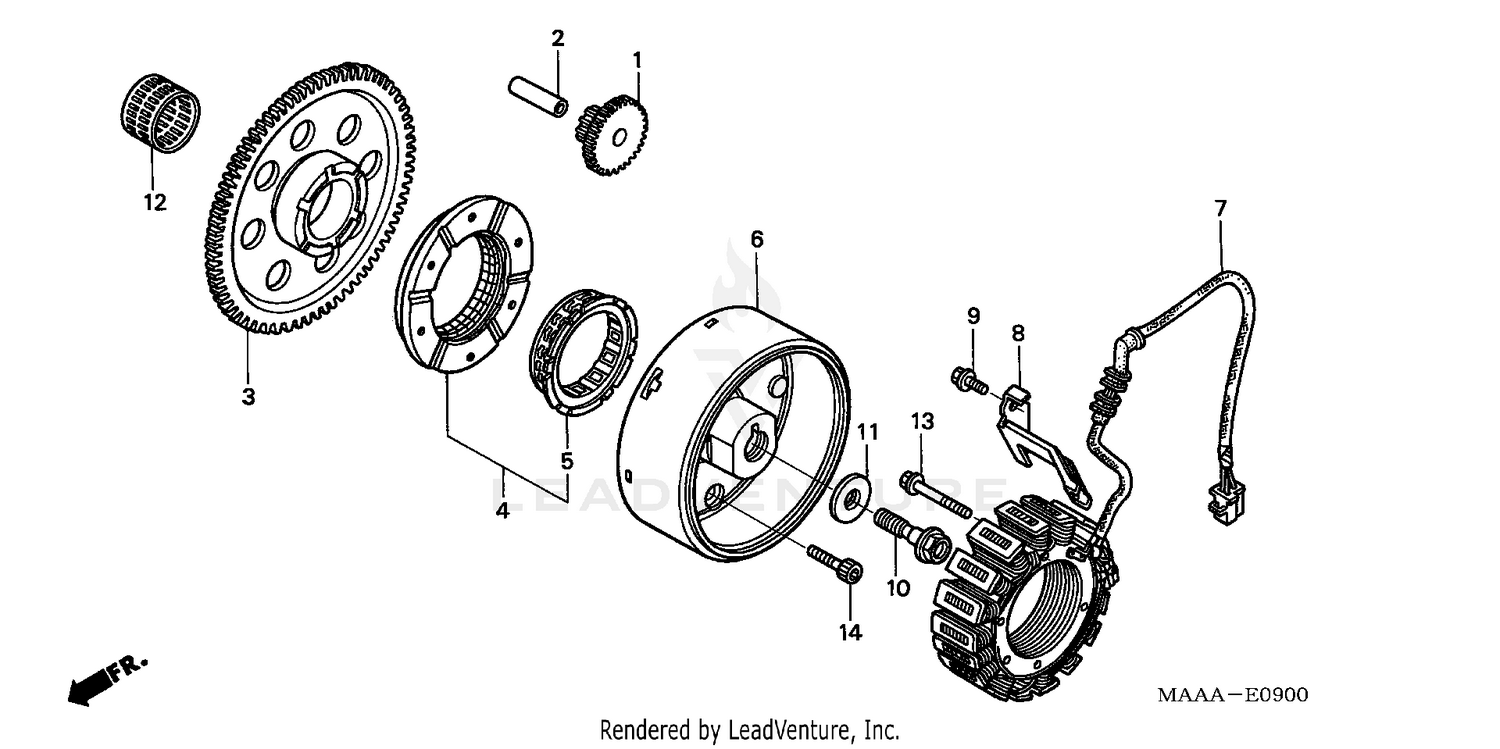

Alternator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, STARTER REDUCTION (50T)
28101-MG8-000
|
$95.17 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN (12X44)
28102-MG8-000
|
$7.55 | ||
|
Unavailable |
|||
|
#3
GEAR, STARTER DRIVEN
28110-MM8-010
|
$243.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLUTCH ASSY., STARTER (OUTER)
28125-MAA-A01
|
$217.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLUTCH, ONE-WAY
28126-MAA-A01
|
$95.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLYWHEEL
31110-MCK-A01
|
$499.26 | ||
|
Available to order. Add to View Price |
|||
|
#7
STATOR
31120-MAH-005
|
$717.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, ALTERNATOR WIRE
32961-MAH-000
|
$17.66 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE (6X12) (NSHF)
90004-GHB-610
|
$3.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, UBS (12X45)
90025-MM8-000
|
$11.81 | ||
|
Unavailable |
|||
|
#11
WASHER (12.5X34X5)
90402-MCL-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, NEEDLE (34X39X23.7) (TOYO)
91061-MK5-013
|
$36.34 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE (6X40)
96001-06040-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SOCKET (8X16)
96700-08016-10
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
