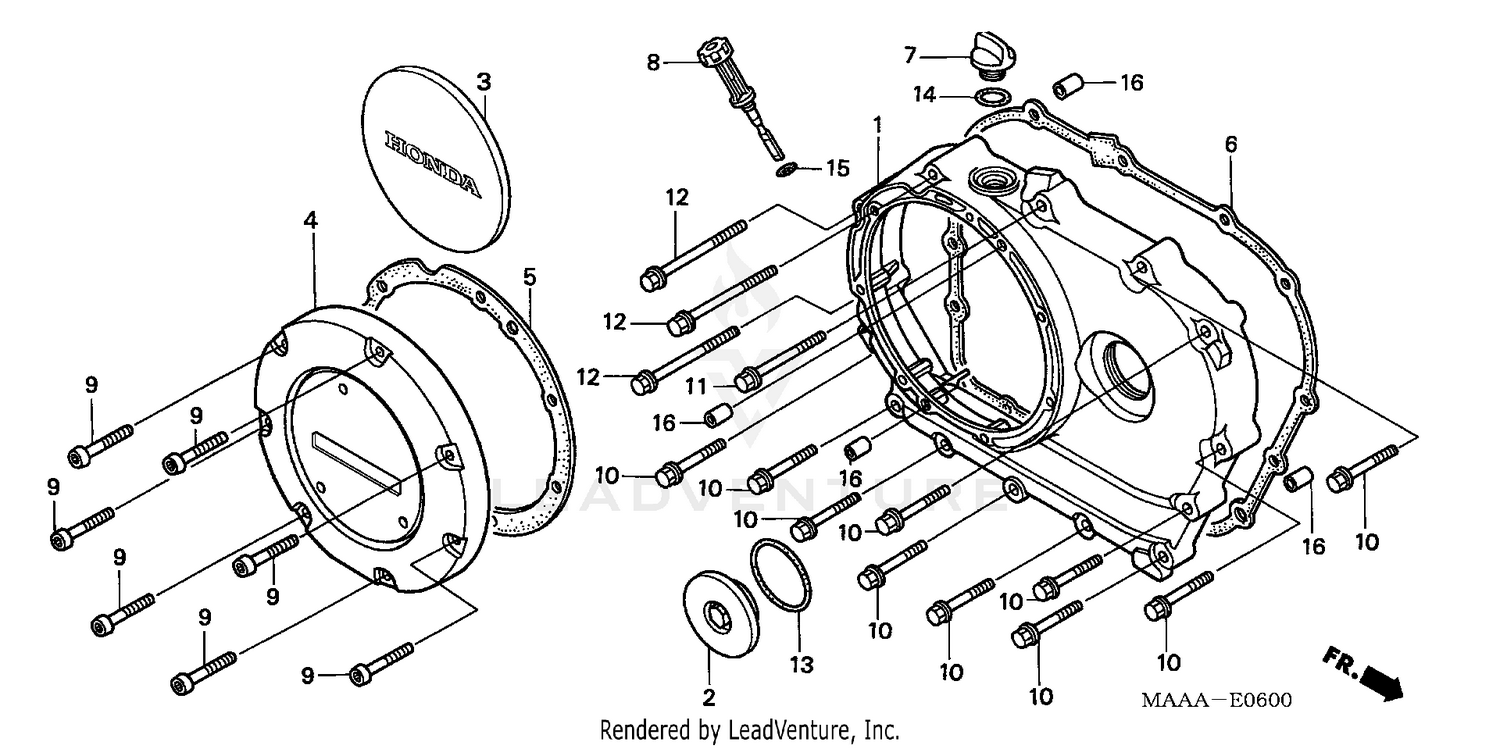

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE
11330-MAA-A00
|
$323.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP (45MM)
11332-MZ5-000
|
$36.06 | ||
|
Unavailable |
|||
|
#3
PLATE, EMBLEM
11335-MCK-A50
|
$22.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, CLUTCH
11371-MCK-U50
|
$210.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CLUTCH COVER
11372-MAH-000
|
$16.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, R. CRANKCASE COVER
11394-MM8-881
|
$27.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, OIL FILLER
15611-KA4-710
|
$17.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
DIPSTICK, OIL
15650-MAA-A00
|
$21.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, SPECIAL SOCKET (6X30)
90002-MAH-000
|
$4.32 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE (6X35) (NSHF)
90006-GHB-700
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X50) (NSHF)
90006-GHB-730
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X60) (NSHF)
90006-GHB-750
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (48.1X3.6) (ARAI)
91301-ML7-003
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (18X3) (ARAI)
91307-KF0-003
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (8.4X2.4)
91316-MJ8-003
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
