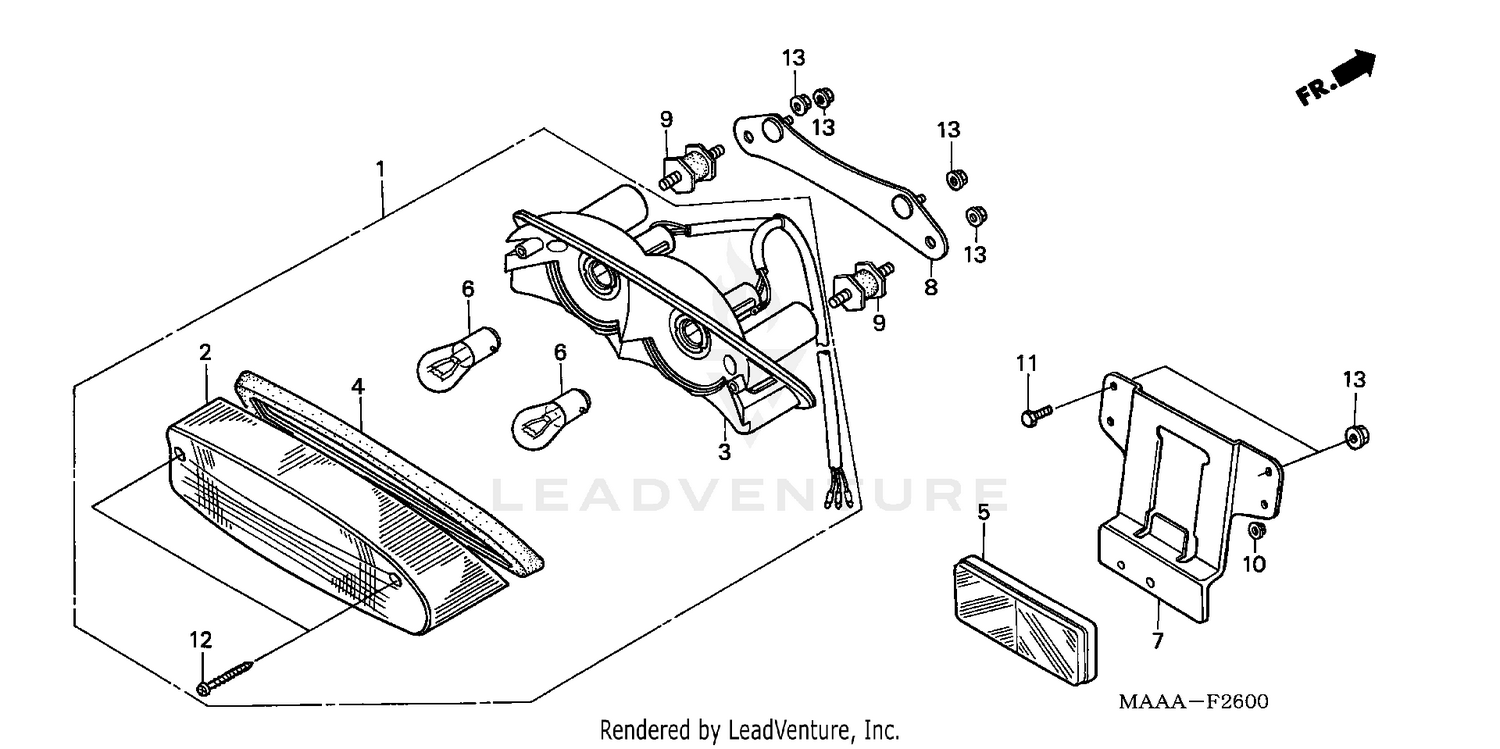

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT
33701-MAA-A30
|
$168.45 | ||
|
Unavailable |
|||
|
#2
LENS, TAILLIGHT
33702-MM8-671
|
$56.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
BASE, TAILLIGHT
33704-MAA-A30
|
$100.52 | ||
|
Unavailable |
|||
|
#4
GASKET, TAILLIGHT
33709-MM8-671
|
$14.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
REFLECTOR, REFLEX (STANLEY)
33741-MS6-921
|
$18.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB, TAILLIGHT (12V 32/3CP) (STANLEY)
34906-425-771
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, RR. REFLECTOR
80102-MM8-010
|
$25.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, TAILLIGHT
80103-MM8-000
|
$17.50 | ||
|
Unavailable |
|||
|
#9
RUBBER, OIL COOLER MOUNTING
85201-438-000
|
$16.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, FLANGE (5MM)
90301-MG8-000
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. (6X10)
92101-06010-0G
|
$3.78 | ||
|
Unavailable |
|||
|
#12
SCREW, TAPPING (4X30)
93901-34780
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
