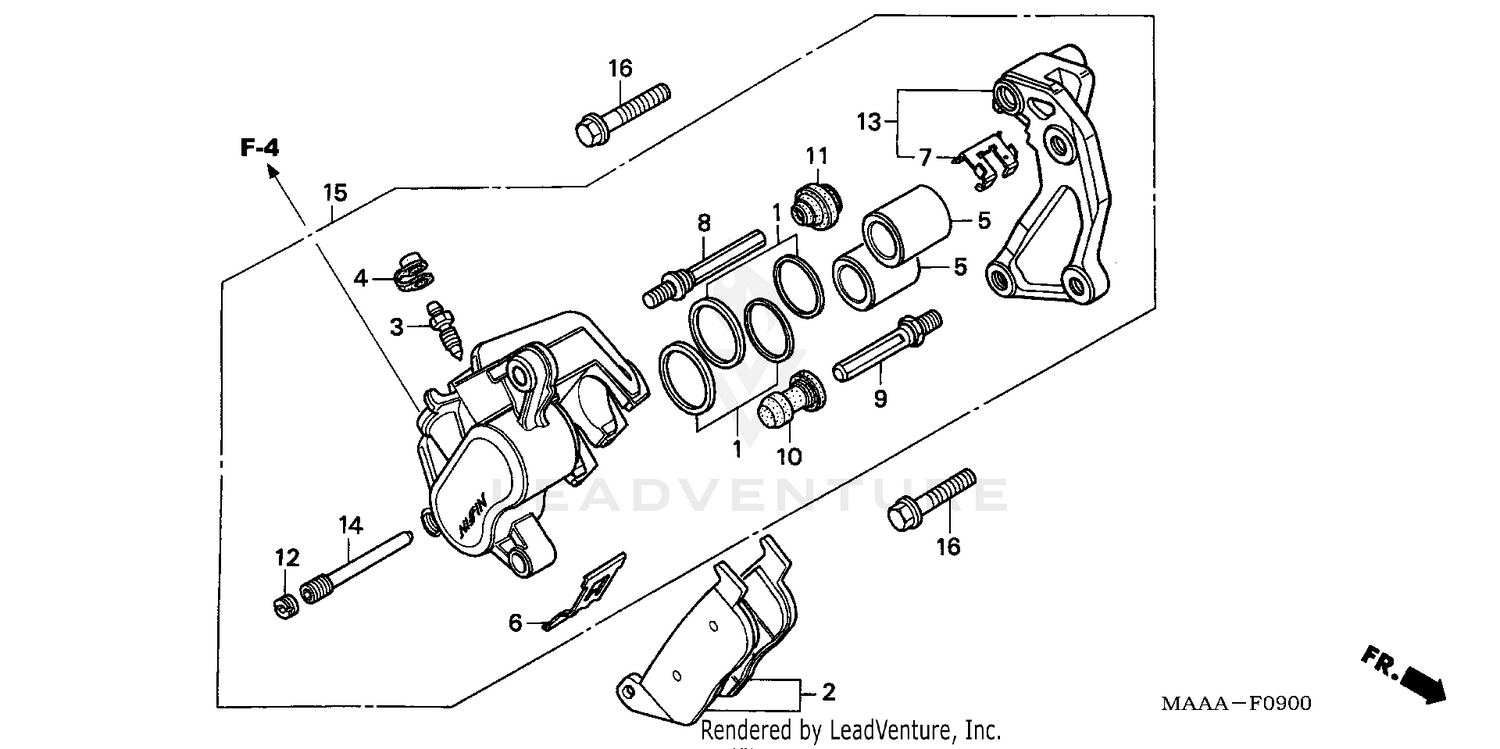

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON
06431-MA3-405
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
PAD SET, FR.
06455-MAA-405
Superseded by 06455-MAA-415
|
$65.41 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, BLEEDER (NISSIN)
43352-HC5-971
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
PISTON
45107-ML4-006
|
$45.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, PAD (NISSIN)
45108-ML7-922
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER
45112-MAA-006
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT A, PIN
45131-ML7-921
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, PIN
45131-166-016
|
$9.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT, PIN BUSH (NISSIN)
45132-166-016
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOOT B
45133-MA3-006
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PLUG, PIN
45203-MG3-016
|
$6.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BRACKET, R. FR.
45210-MAA-006
|
$159.81 | ||
|
Unavailable |
|||
|
#14
PIN, HANGER
45215-ML7-922
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
CALIPER SUB-ASSY., R. FR. BRAKE (NISSIN)
45250-MAA-305
|
$417.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SPECIAL FLANGE (10X40)
90101-MAA-000
|
$13.82 | ||
|
Available to order. Add to View Price |
|||
