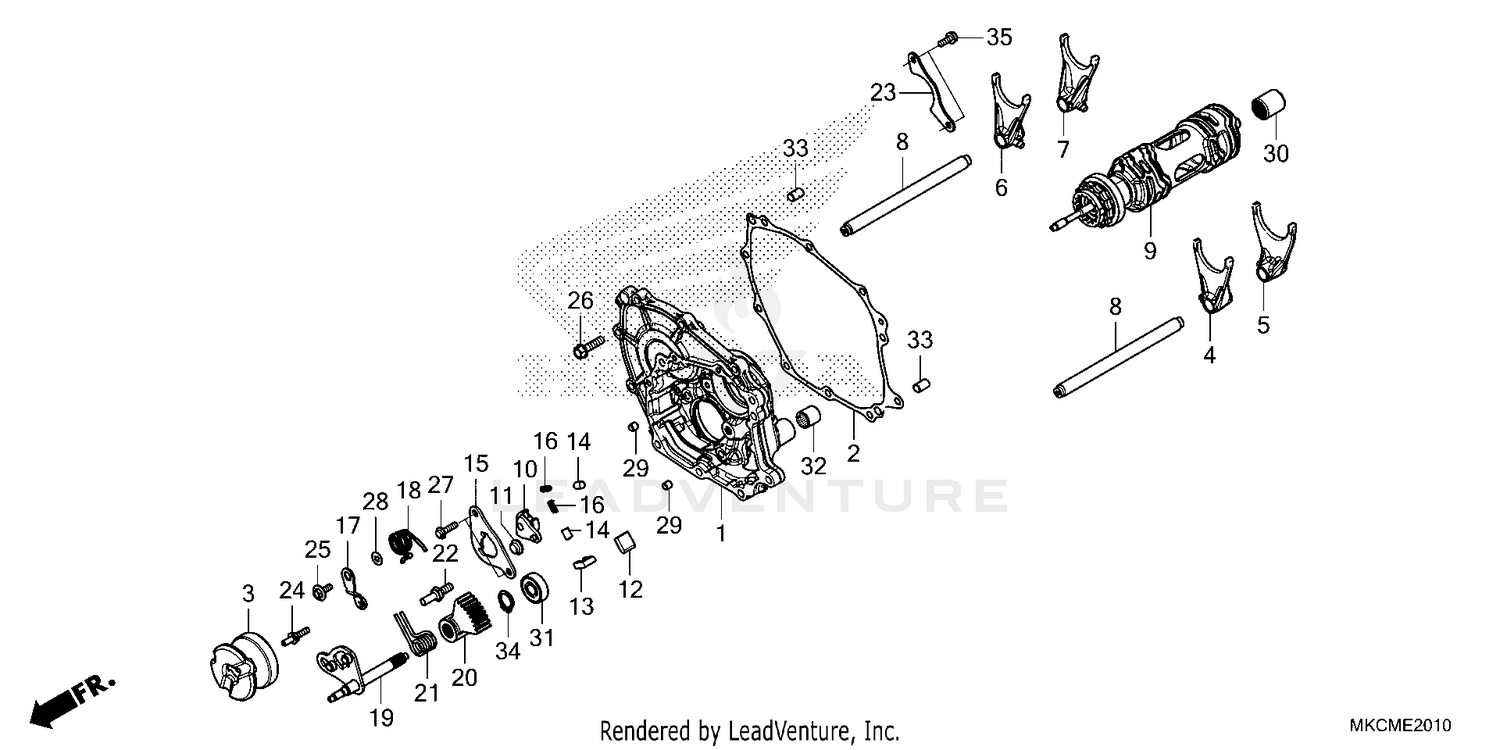

Shift Drum@shift Fork (dct) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, TRANSMISSION
11130-MKC-A00
|
$203.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, TRANSMISSION HOLDER
11135-MKC-A01
|
$20.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER A, BEARING
11370-MKC-A00
|
$71.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
FORK, FR. MAINSHAFT GEARSHIFT
24211-MKC-A00
|
$71.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWINGARM, MAINSHAFT GEARSHIFT
24212-MKC-A00
|
$71.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
FORK, FR. COUNTERSHAFT GEARSHIFT
24213-MKC-A00
|
$74.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWINGARM, COUNTERSHAFT GEARSHIFT
24214-MKC-A00
|
$74.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT ASSY., SHIFT FORK
24250-MKC-A00
|
$39.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
DRUM ASSY., GEARSHIFT
24300-MKC-A00
|
$397.24 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIFTER, DRUM
24321-MEB-670
|
$41.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
COLLAR, SHIFTER
24322-MM4-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
PAWL A, RATCHET
24324-MKC-A00
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#13
PAWL B, RATCHET
24325-MKC-A00
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUNGER, PAWL
24326-KBH-901
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, CHANGE GUIDE
24328-MKC-A00
|
$16.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, PAWL PLUNGER
24329-KA3-740
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOPPER, GEARSHIFT DRUM
24430-MKC-A00
|
$17.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, SHIFT DRUM STOPPER
24436-MKC-A20
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPINDLE, GEARSHIFT
24610-MKC-A00
|
$101.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, SHIFT REDUCTION (51T)
24617-MKC-A01
|
$67.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, SHIFT RETURN
24651-MKC-A00
|
$11.64 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, RETURN SPRING
24652-MKC-A00
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE, SHIFT DRUM BEARING SETTING
24656-MKC-A00
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, OIL PASSAGE
90010-MKC-A00
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIVOT, SHIFT DRUM STOPPER ARM
90022-MKC-A00
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (8X30)
90078-MKC-A00
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, SPECIAL FLANGE (6X22)
90088-HP1-670
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, DRUM STOPPER
90417-360-000
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, DOWEL (8X8)
90702-MB0-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING, NEEDLE (12X18X12)
91024-MGS-D21
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, RADIAL BALL (607ZZ)
91026-MGS-D21
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING, SHELL NEEDLE (10X13) (4X15)
91105-KZR-601
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, DOWEL (10X16)
94303-10160
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#34
CIRCLIP (OUTER) (11MM)
94510-11000
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
