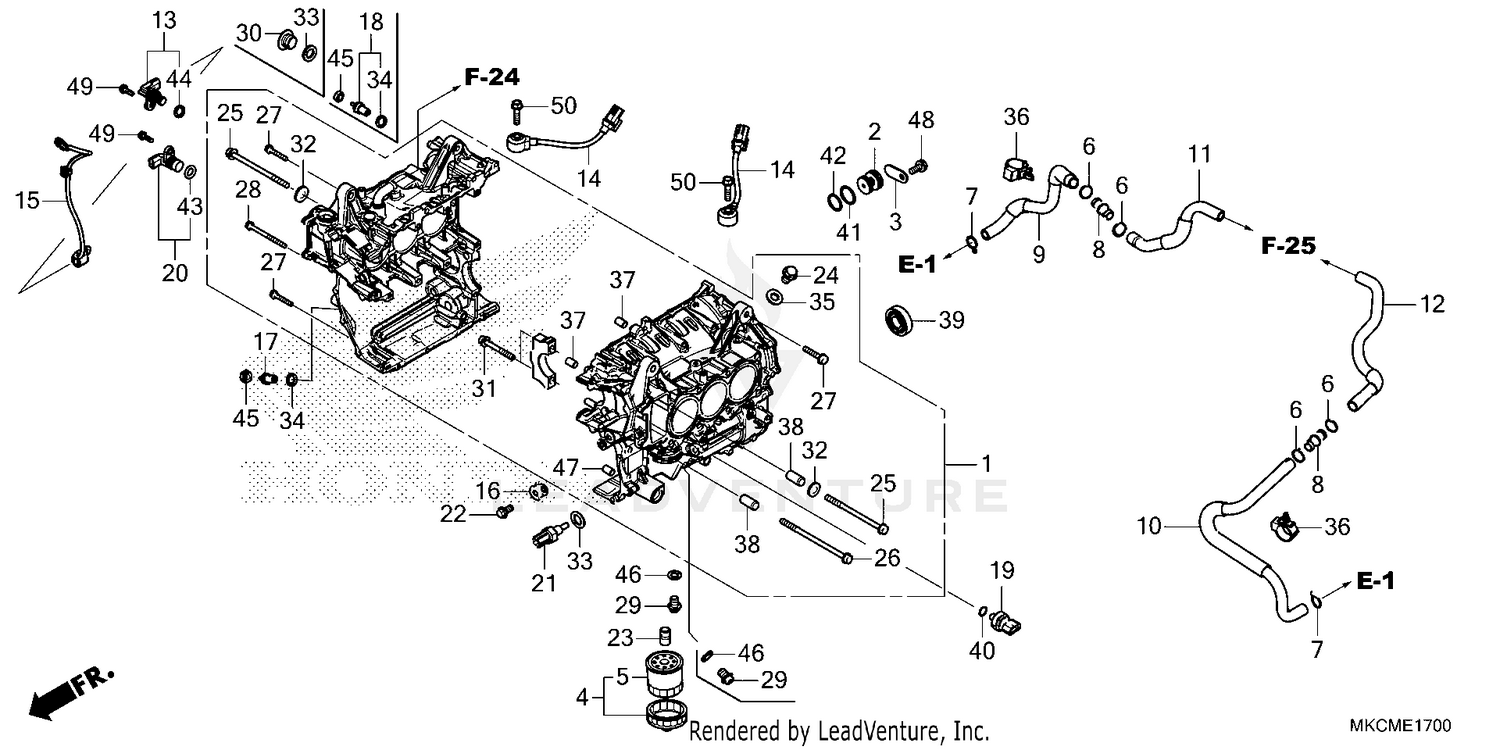

Cylinder Block Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BLOCK ASSY., CYLINDER
11000-MKC-A00
|
$3,931.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG, SEALING
11216-MKC-A00
|
$17.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, MAIN GALLERY
11217-MKC-A00
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
FILTER SET, OIL
15010-MKR-305
|
$23.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
FILTER, OIL (WAKO FILTER)
15410-MFJ-D02
|
$18.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CLIP B, TUBE CLIP, SUB-TANK HOSE
17366-MJ0-000
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP, SUB-TANK HOSE
17724-102-700
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT (TWO-WAY)
18651-MKC-A00
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE, R. AIR INDUCTION A
18652-MKC-A00
|
$25.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE, L. AIR INDUCTION A
18653-MKC-A00
|
$34.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
TUBE, R. AIR INDUCTION B
18662-MKC-A00
|
$18.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE, L. AIR INDUCTION B
18663-MKC-A00
|
$24.18 | ||
|
Available to order. Add to View Price |
|||
|
#13
PICK-UP ASSY.
28810-R9L-003
|
$126.23 | ||
|
Available to order. Add to View Price |
|||
|
#14
SENSOR, KNOCK
30530-MKC-A01
|
$65.16 | ||
|
Available to order. Add to View Price |
|||
|
#15
SUB-HARNESS, SPEED SENSOR
32109-MKC-A00
|
$30.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, HARNESS CLIP
32157-MJM-D00
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH ASSY., NEUTRAL
35600-MKF-D41
|
$24.71 | ||
|
Available to order. Add to View Price |
|||
|
#19
SENSOR, OIL PRESSURE
37260-MGE-641
|
$195.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
SENSOR ASSY., SPEED
37700-K48-A01
|
$68.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
SENSOR ASSY., THERMOSTAT OIL (Honda Code 8192445)
37750-KPH-701
|
$61.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X12)
90005-GHB-610
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOSS, OIL FILTER (Honda Code 1243435)
90019-MB0-000
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, SEALING (8MM)
90019-MKC-A00
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (8X120)
90025-MKC-A00
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (8X140)
90026-MKC-A00
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X35)
90031-MKC-A00
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X75)
90032-MKC-A00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, DRAIN PLUG (12X15)
90043-MKC-A00
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT-WASHER (10X80)
90049-MKC-A00
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SEALING (8MM)
90441-ME9-000
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, SEALING (10.2MM)
90443-MB0-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, NEUTRAL
90443-MJ6-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, SEALING (8MM)
90474-333-000
|
$4.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
CLAMP, TUBE (D18)
90651-HL3-G01
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIN, DOWEL (10X16) (Honda Code 3906971)
90701-MV9-670
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIN, DOWEL (12X37)
90715-RZ0-G00
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#39
BEARING, RADIAL BALL (6203U SPL.)
91006-HN2-003
|
$15.40 | ||
|
Available to order. Add to View Price |
|||
|
#40
O-RING (13X1.5)
91301-MEH-003
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
O-RING (19.20X1.90) (NOK)
91301-P7X-003
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#42
O-RING (16.7X1.9) (NOK)
91301-PWR-003
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#43
O-RING B
91303-MKH-D21
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#44
O-RING
91304-RE5-003
|
$12.43 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT, HEX. (4MM)
94001-04000-0S
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
PIN C, DOWEL (8X14)
94303-08140
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
BOLT, FLANGE (6X18) BOLT, HEX. (6X18)
95701-06018-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT, FLANGE (8X30)
95701-08030-00
|
$1.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
