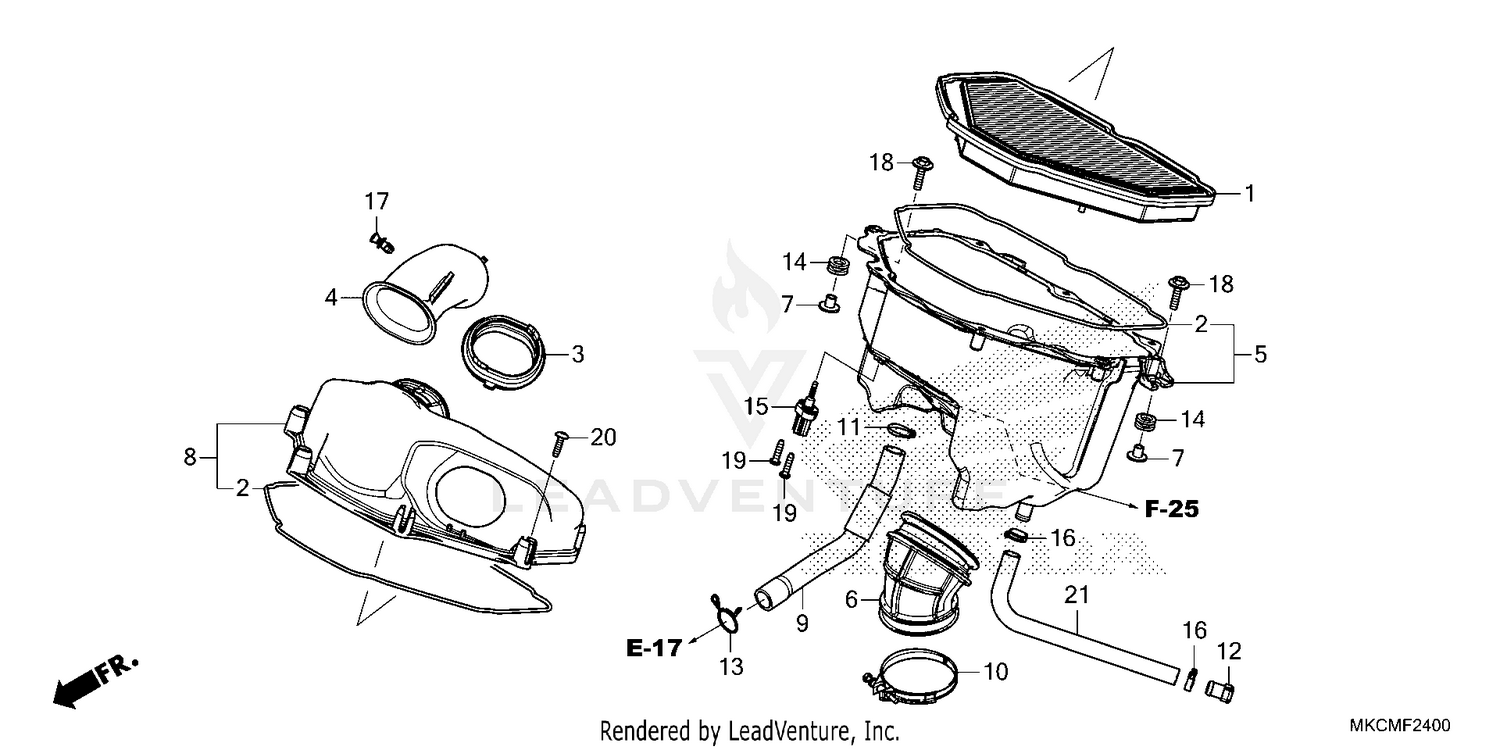

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ELEMENT, AIR CLEANER
17210-MKC-A00
|
$64.23 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL, AIR CLEANER
17221-MKC-A00
|
$11.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
DUCT A, L.
17223-MKC-A00
|
$18.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
DUCT B, L.
17225-MKC-A00
|
$43.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOUSING, AIR CLEANER
17230-MKC-A00
|
$111.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
TUBE, AIR CLEANER CONNECTING
17232-MKC-A00
|
$30.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, AIR CLEANER MOUNTING
17239-MGS-D30
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER SUB-ASSY., AIR CLEANER
17240-MKC-A00
|
$86.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE, ENGINE BREATHER
17245-MKC-A00
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, AIR CLEANER CONNECTING TUBE (66)
17255-MKC-A00
|
$15.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP B, TUBE CLIP, SUB-TANK HOSE
17366-MJ0-000
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG, BREATHER TUBE
17370-382-870
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP, AIR HOSE (21.5)
18532-634-670
|
$9.97 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, TAILLIGHT
33712-KT1-670
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR ASSY., AIR TEMPERATURE
37880-KWW-C01
|
$54.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP, TUBE (14.0)
90651-HM3-A71
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP, PANEL FIXING
91549-MCA-000
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT-WASHER (6X25)
93404-06025-07
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, TAPPING (5X20)
93901-25420
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, TAPPING (5X20)
93903-25480
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE, VINYL (11X15X250) (95003-37001-60M) (NA USE ALT:95003-37001-60M)
95003-37025-31
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
