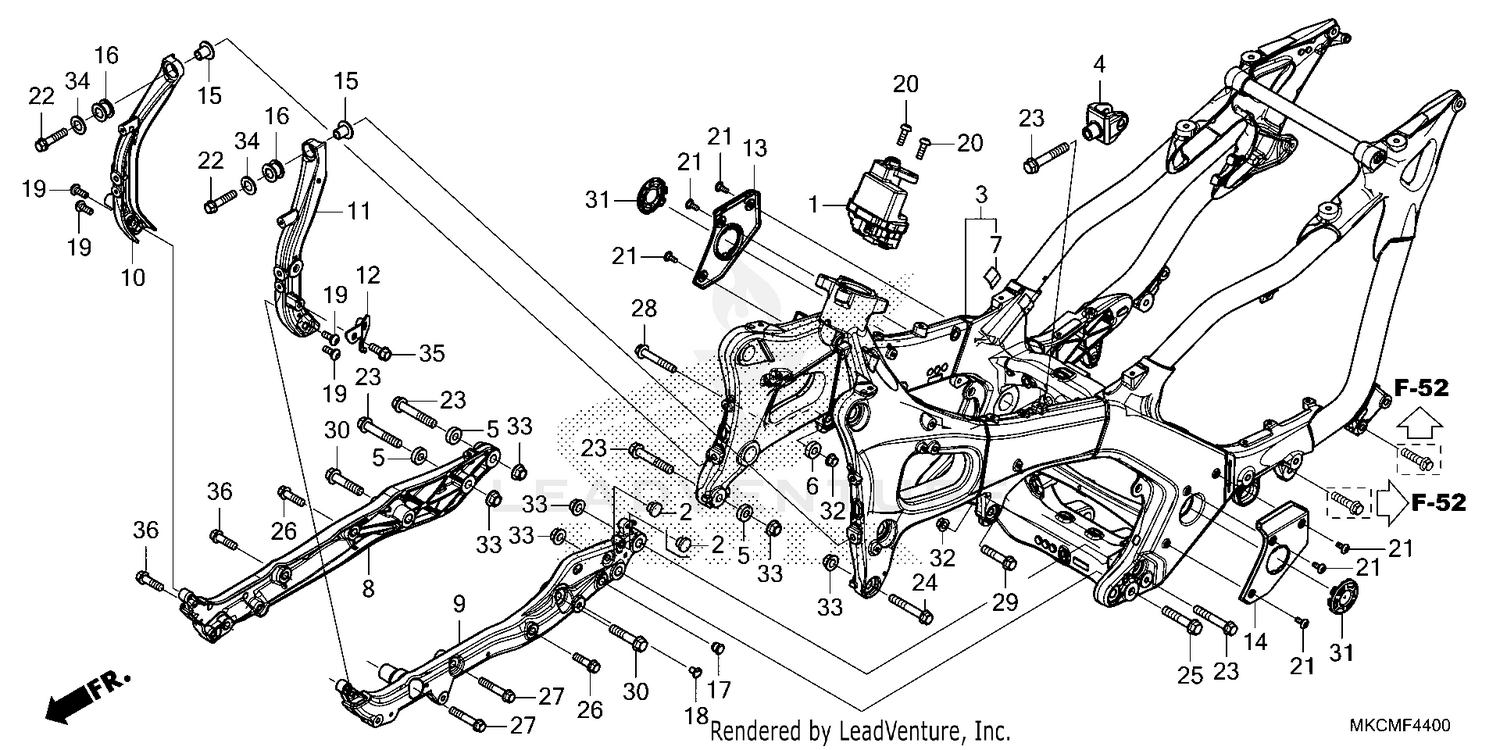

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LOCK ASSY., STEERING (ELECTRIC)
06351-MKC-A01
|
$259.32 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, RIM HOLE
42717-329-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
FRAME SET *NH460M* (OMEGA SILVER METALLIC)
50010-MKC-A01ZA
|
$6,293.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, RR. CUSHION
50121-MKC-A00
|
$90.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR A, ENGINE HANGER
50193-MKC-A00
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR B, ENGINE HANGER
50194-MKC-A00
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, CUSHION
50199-MKC-A00
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
FRAME, R. (LOWER) *NHA86M* (MAT BALLISTIC BLACK)
50351-MKC-A00ZA
|
$475.07 | ||
|
Available to order. Add to View Price |
|||
|
#9
FRAME, L. (LOWER) *NHA86M* (MAT BALLISTIC BLACK)
50352-MKC-A00ZA
|
$475.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
SUB-FRAME, R. (LOWER) *NHA86M* (MAT BALLISTIC BLACK)
50353-MKC-A00ZA
|
$119.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
SUB-FRAME, L. (LOWER) *NHA86M* (MAT BALLISTIC BLACK)
50354-MKC-A00ZA
|
$119.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, L. HORN
50356-MKC-A00
|
$9.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, R. PIVOT PLATE *NH168M* (VERNIER GRAY METALLIC)
50410-MKC-A00ZA
|
$9.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, L. PIVOT PLATE *NH168M* (VERNIER GRAY METALLIC)
50415-MKC-A00ZA
|
$9.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, FRAME (LOWER)
62502-MKC-A00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER, FRAME (LOWER)
62503-MKC-A00
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP, RR. CARRIER
81212-GF4-000
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, BRUSH
83614-MKC-A01
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SOCKET (8X22)
90100-GCT-J50
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, ONE-WAY (8MM)
90107-MBG-000
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (5X13)
90112-MBS-000
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (10X45)
90162-MKC-A00
|
$11.56 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (12X70)
90163-MKC-A00
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (12X60)
90164-MKC-A00
|
$13.98 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (12X60)
90165-MKC-A00
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (10X35)
90166-GHB-700
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (10X55)
90166-GHB-740
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (10X65)
90166-MKC-A00
|
$13.11 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (10X55)
90167-MKC-A00
|
$12.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (12X55)
90168-MKC-A00
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#31
CAP, PIVOT *NHB73M* (MAT ALPHA SILVER METALLIC)
90312-MKC-A00ZA
|
$9.40 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
NUT, FLANGE (12MM)
94050-12000
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLAIN (10MM)
94103-10400
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (8X20)
95701-08020-08
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (10X35)
96400-10035-00
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
