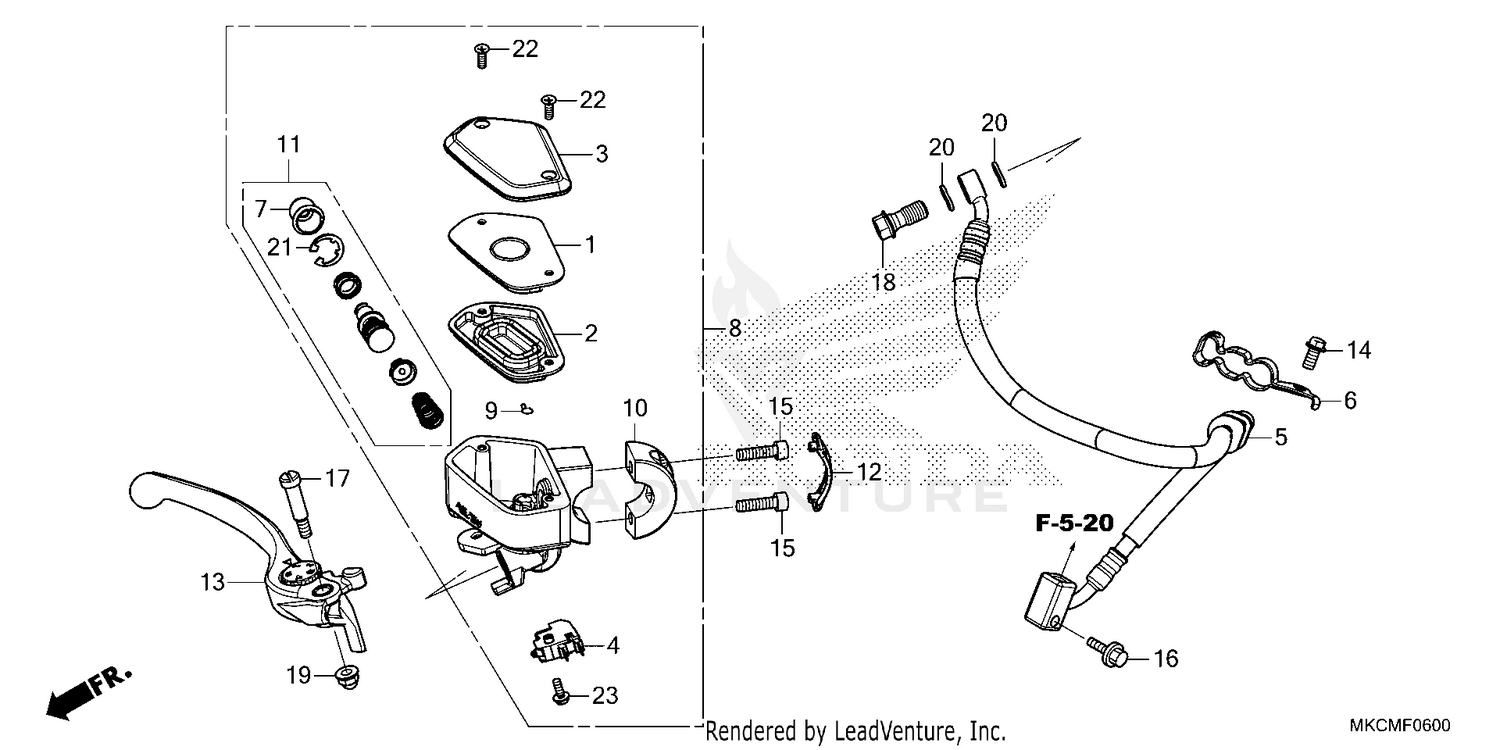

Front Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLATE, DIAPHRAGM
22887-MGE-006
|
$9.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
DIAPHRAGM
22888-MGE-006
|
$15.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, MASTER CYLINDER
22889-MGE-006
|
$39.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH ASSY., FR. STOP
35340-MGS-D31
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE A, FR. BRAKE
45123-MKC-A01
|
$71.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP A, FR. BRAKE
45155-MKC-A00
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT
45504-410-003
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
MASTER CYLINDER SUB-ASSY., FR. BRAKE
45510-MKC-A01
|
$296.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR
45512-MA6-006
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER, MASTER CYLINDER
45517-MAM-A62
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
MASTER CYLINDER SET
45530-MA5-671
|
$86.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, BRAKE MASTER CYLINDER HOLDER
45553-MAM-A60
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER ASSY., R. HANDLE
53170-MKC-A01
|
$68.56 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X12) (L. SIDE ONLY)
90013-GHB-610
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SOCKET (6X22)
90101-MCL-000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6MM)
90111-187-000
|
$7.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, HANDLE LEVER
90114-MG9-951
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, CAP (6MM)
90202-ZV0-000
|
$3.66 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#23
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
