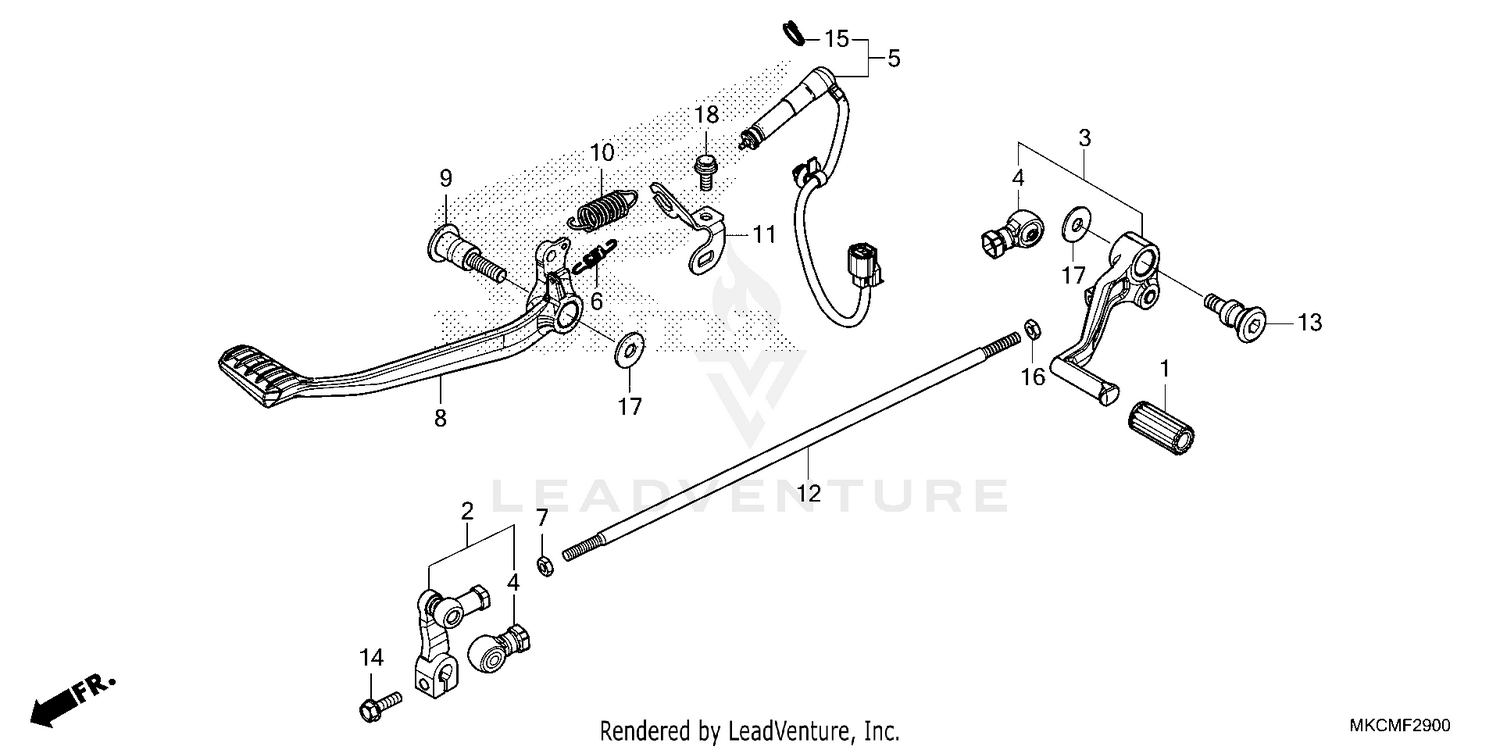

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#5
SWITCH ASSY., RR. STOP
35350-MKC-A01
|
$40.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, STOP SWITCH
35357-HP0-A00
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
PEDAL, RR. BRAKE
46500-MKC-A00
|
$150.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT, BRAKE PIVOT
46512-MKC-A00
|
$24.56 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, BRAKE PEDAL
46514-MKC-A00
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, RR. STOP SWITCH
50358-MKC-A00
|
$6.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP, SWITCH COVER
90601-KAF-003
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN (8MM)
94103-08700
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X14)
95701-06014-07
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
