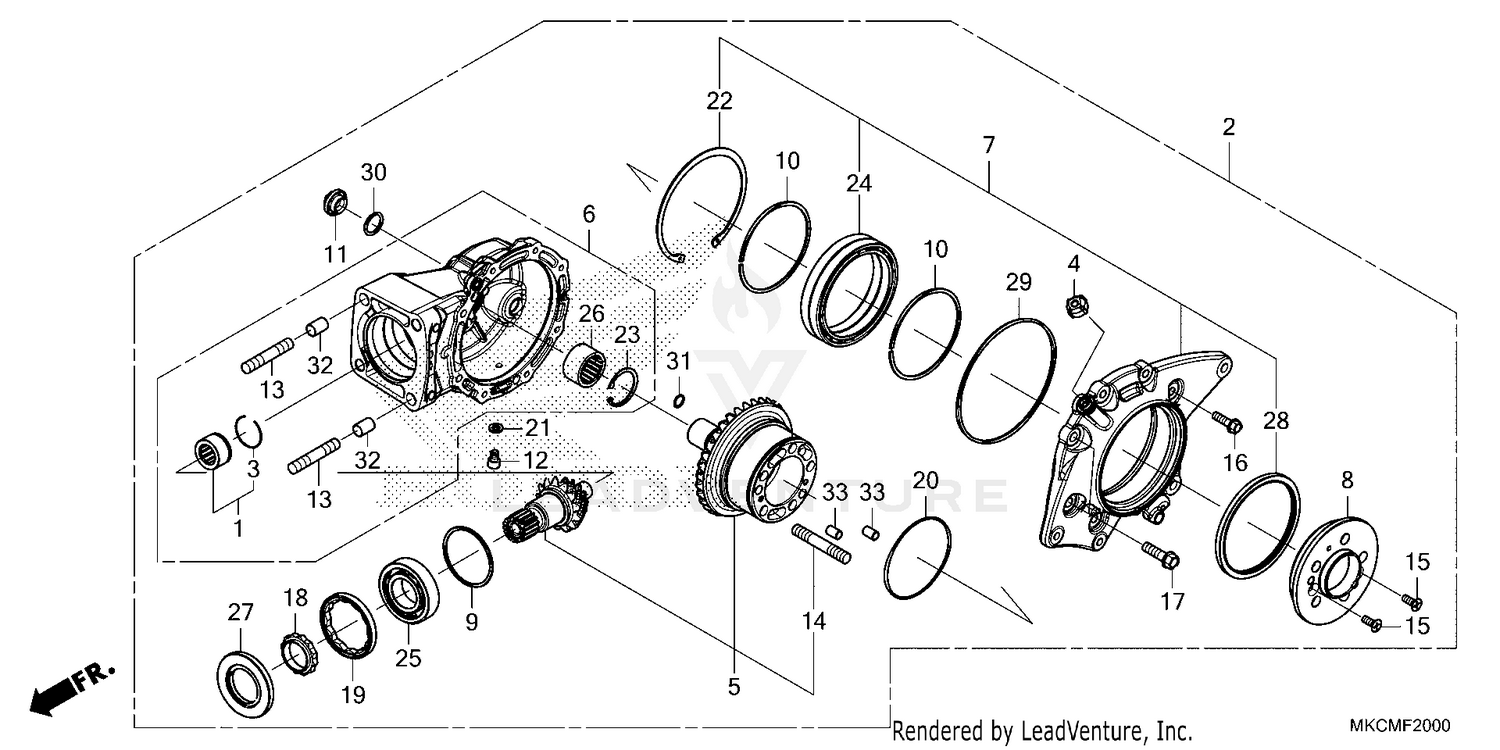

Final Driven Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING SET, NEEDLE
06910-MCA-000
|
$18.52 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR ASSY., FINAL
41300-MKC-A00
|
$2,109.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING, STOPPER
41305-MB4-770
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, BREATHER
41306-MKC-A00
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR SET, FINAL
41310-MKC-A00
|
$529.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
CASE SUB-ASSY., FINAL GEAR
41311-MKC-A00
|
$1,234.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER SUB-ASSY., FINAL GEAR
41320-MKC-A00
|
$337.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLANGE, FINAL GEAR SIDE
41441-MKC-A00
|
$130.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM A, PINION GEAR (1.32)
41450-MGE-000
|
$12.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM B, PINION GEAR (1.38)
41451-MGE-000
|
$12.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM C, PINION GEAR (1.44)
41452-MGE-000
|
$12.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM D, PINION GEAR (1.50)
41453-MGE-000
|
$12.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM E, PINION GEAR (1.56)
41454-MGE-000
|
$12.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM F, PINION GEAR (1.62)
41455-MGE-000
|
$12.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM G, PINION GEAR (1.68)
41456-MGE-000
|
$12.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM A, RING GEAR (1.82)
41530-MCA-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM B, RING GEAR (1.88)
41531-MCA-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM C, RING GEAR (1.94)
41532-MCA-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM D, RING GEAR (2.00)
41533-MCA-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM E, RING GEAR (2.06)
41534-MCA-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM F, RING GEAR (2.12)
41535-MCA-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM G, RING GEAR (2.18)
41536-MCA-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM H, RING GEAR (2.24)
41537-MCA-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM I, RING GEAR (2.30)
41538-MCA-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM J, RING GEAR (2.36)
41539-MCA-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM K, RING GEAR (2.42)
41540-MCA-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM L, RING GEAR (2.48)
41541-MCA-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM S, RING GEAR (1.76)
41547-MCA-000
|
$9.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, FINAL GEAR CASE HOLE
41530-MGE-000
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SOCKET (8X11)
90109-ME5-770
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, STUD (12X48)
90124-MGE-300
|
$11.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, STUD (12X51)
90125-MKC-A00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, FLAT (6X16)
90132-MCA-000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (8X28)
90132-MKC-A00
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (10X35)
90134-MGE-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, LOCK (35MM)
90241-MCH-000
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, LOCK (75MM)
90242-MCH-000
|
$27.71 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
90351-MCA-003
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER (8MM)
90471-580-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CIRCLIP (INNER) (125MM)
90653-MCA-000
|
$22.44 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP (INNER) (42)
90654-MKC-A01
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, RADIAL BALL (100X125X26)
91051-MCA-003
|
$135.36 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, BALL SPECIAL (35X72X17)
91054-MKC-A01
|
$35.24 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, NEEDLE (30X42X23)
91057-MKC-A01
|
$22.89 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL (42X76X8)
91254-MKC-A01
|
$16.36 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL (110X125X7)
91265-MCA-003
|
$26.31 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING, FINAL GEAR CASE
91351-MKC-A00
|
$11.96 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING (21.5X2.9)
91352-MGE-003
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING (12X1.5)
91355-MGE-700
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN A, DOWEL (14X20)
94301-14200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, DOWEL (10X16)
94303-10160
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
