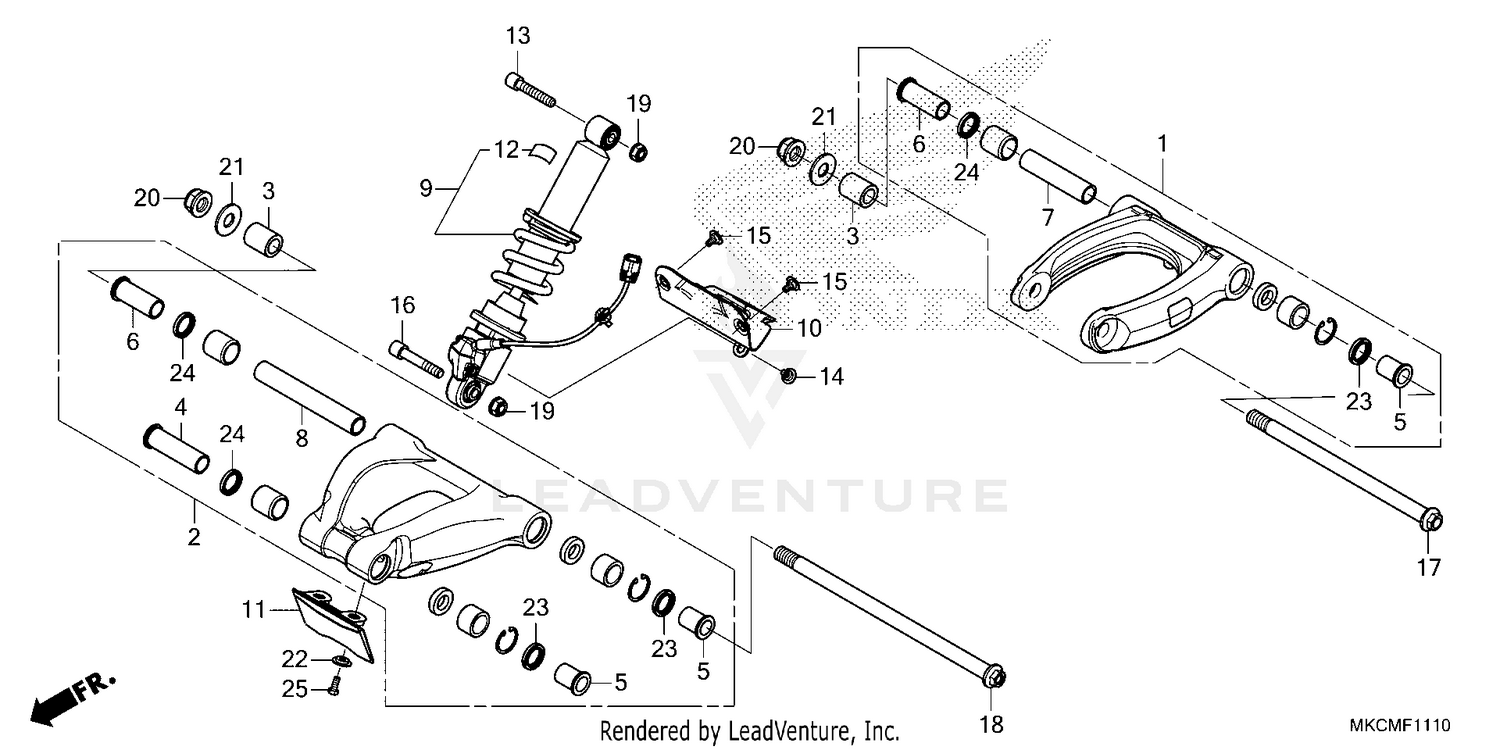

Cushion Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM ASSY., FR. (UPPER) (TYPE1)
51350-MKC-A00ZB
|
$531.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
ARM ASSY., FR. (LOWER) (TYPE1)
51360-MKC-A00ZB
|
$717.71 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FR. PIVOT ADJUSTING
51363-MKC-A00
|
$26.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR A, R. PIVOT DISTANCE
51364-MKC-A00
|
$23.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, L. PIVOT DISTANCE
51365-MKC-A00
|
$15.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR B, R. PIVOT DISTANCE
51366-MKC-A00
|
$21.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, FR. ARM DISTANCE (UPPER)
51367-MKC-A00
|
$12.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR A, FR. ARM DISTANCE (LOWER)
51368-MKC-A00
|
$19.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION ASSY., FR.
51400-MKC-AE1
|
$2,007.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, ARM (LOWER)
51405-MKC-A00
|
$147.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
FLAP, AIR GUIDE
61115-MKC-A00
|
$20.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
LABEL, RR. DAMPER CAUTION (ENGLISH)
87516-KV6-610
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SOCKET (10X55)
90110-ML7-000
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, SPECIAL (5X11)
90114-MGE-000
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, SPECIAL (5X15)
90114-MKC-A00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SOCKET (10X58)
90171-MKC-A00
|
$9.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FR. ARM PIVOT (UPPER)
90172-MKC-A00
|
$51.91 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FR. ARM PIVOT (LOWER)
90173-MKC-A00
|
$61.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U (10MM) NUT, SELF-LOCK (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT, SPECIAL U (16MM)
90305-MCB-610
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, ARM PIVOT
90501-MKC-A00
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, KNUCKLE
90554-MBT-610
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL (22X30X5)
91253-HL1-A01
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#24
DUST SEAL (22X29X4) (ARAI)
91283-ML7-003
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. (5X12)
92101-05012-0A
Superseded by 92101-05012-0G
|
$1.08 | ||
|
Unavailable |
|||
|
#25
BOLT, HEX. (5X12)
92101-05012-0G
|
$1.08 | ||
|
Unavailable |
|||
