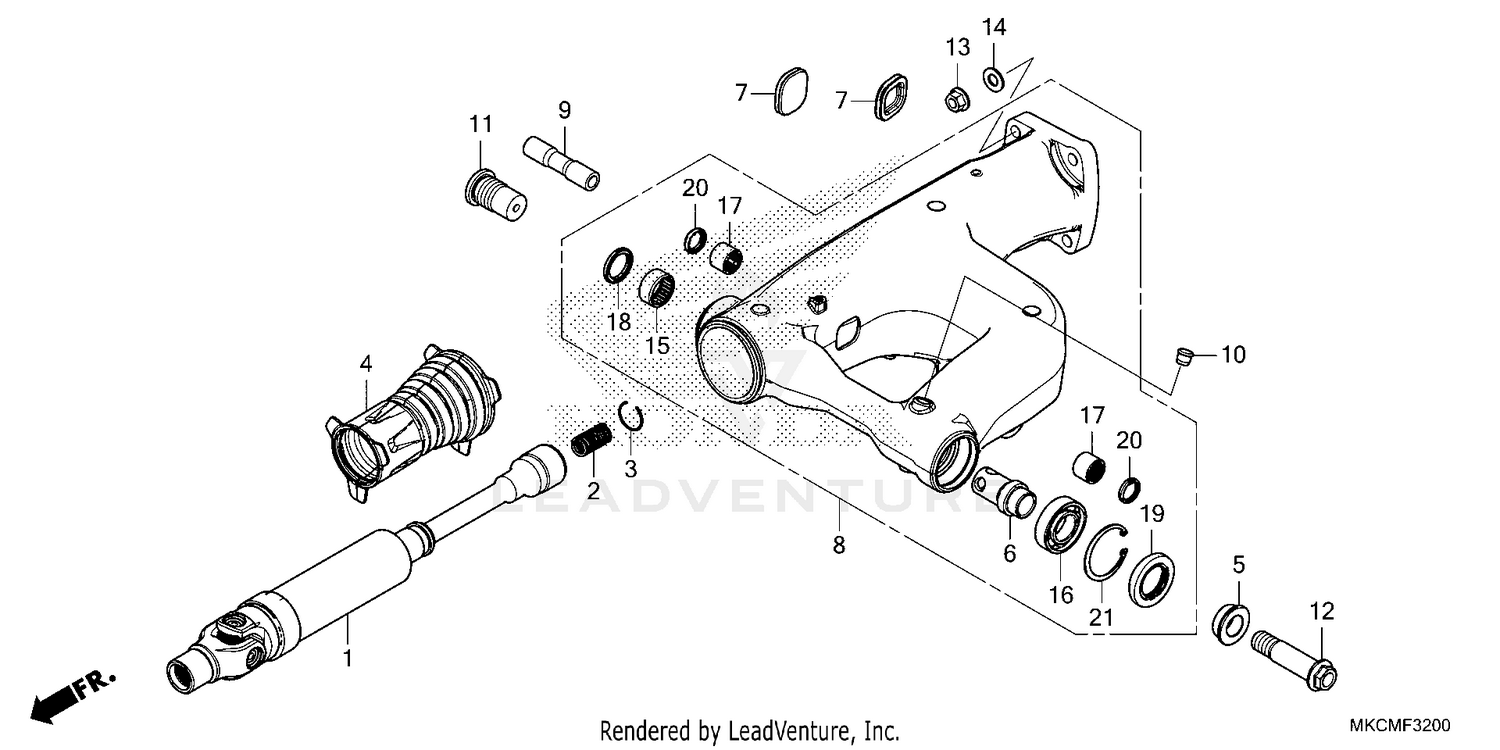

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT ASSY., PROPELLER
40200-MKC-A00
|
$582.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, PROP SHAFT
40216-MKC-A00
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING, STOPPER
40221-MKC-A00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT, JOINT
52104-MKC-A00
|
$31.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, SWINGARM PIVOT
52141-MKC-A00
|
$13.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SWINGARM PIVOT
52142-MKC-A00
|
$66.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET, SWINGARM
52175-MGE-000
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWINGARM SUB-ASSY. (TYPE3)
52200-MKC-A00ZC
|
$1,794.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR B, CUSHION ARM
52462-MKC-A00
|
$18.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, RR. CARRIER
81212-GF4-000
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, R. SWINGARM PIVOT
90141-MKC-A00
|
$53.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, L. SWINGARM PIVOT
90142-MKC-A00
|
$37.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE (12MM)
90309-375-003
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLAIN (12MM)
90440-GT4-970
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, NEEDLE (28X35X16) (NTN)
91021-MGZ-J01
|
$13.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, ANGULAR BALL (28X56X15)
91051-MFL-003
|
$41.31 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING, NEEDLE (20X26X20)
91072-MY1-005
|
$22.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
DUST SEAL (28X37X4)
91202-MR7-003
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
DUST SEAL (35X56X7.5)
91251-MFL-003
|
$8.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
DUST SEAL (20X26X4.5) (ARAI)
91254-KS6-003
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP (INNER) (56MM)
94520-56000
|
$2.75 | ||
|
Unavailable |
|||
