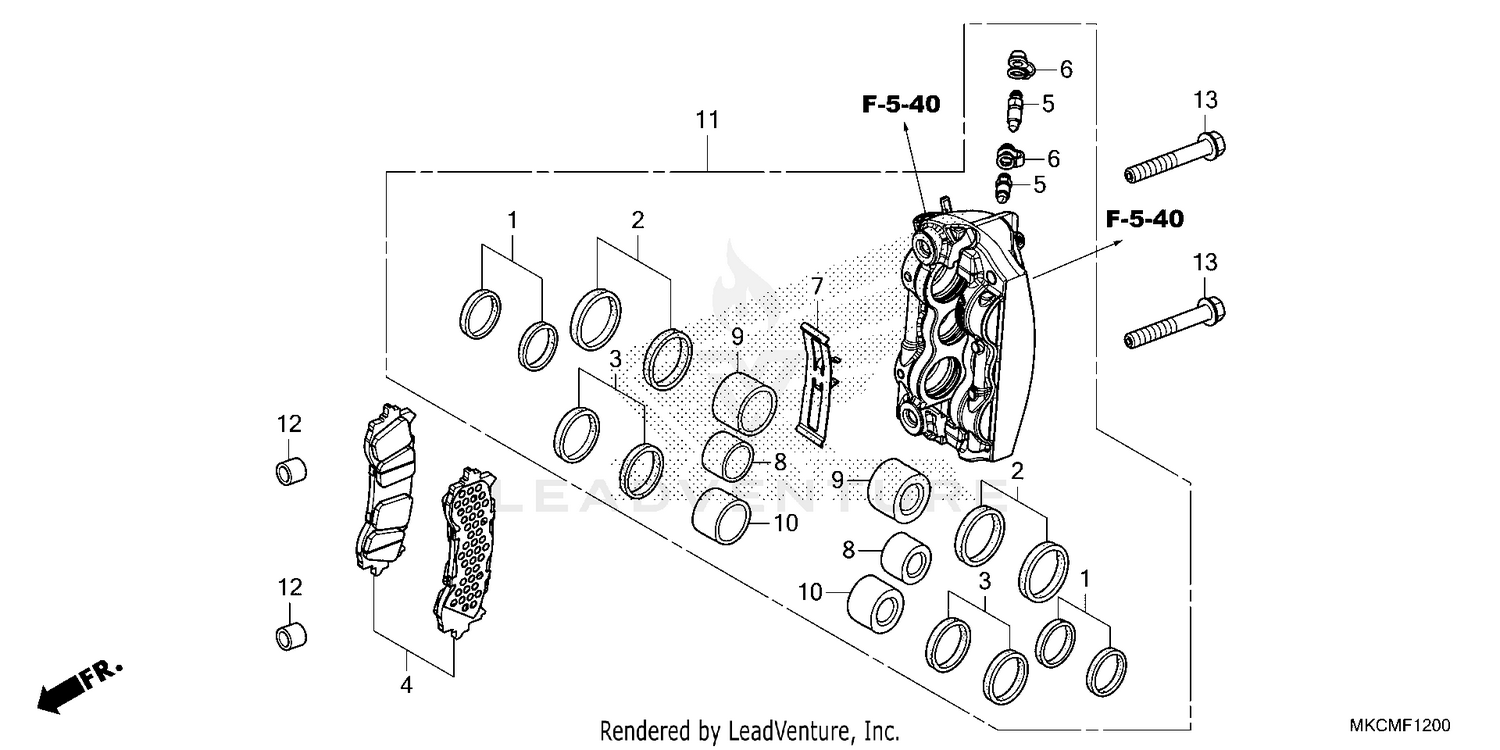

Right Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON (RIGHT SIDE, QTY-1)
06431-MA3-405
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL SET, PISTON
06451-MCJ-751
|
$14.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL SET, PISTON
06451-MCZ-006
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
PAD SET, FR.
06455-MKC-A01
|
$82.92 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, PAD
45108-MKC-A01
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON (27MM)
45116-MGE-006
|
$42.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON (32MM)
45118-MKC-A02
|
$52.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON (30MM)
45119-MGE-016
|
$49.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
CALIPER SUB-ASSY., R. FR.
45250-MKC-A12
|
$795.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER, FR. FORK
51497-MEL-000
|
$6.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE (10X67)
90139-MKC-A00
|
$13.73 | ||
|
Available to order. Add to View Price |
|||
