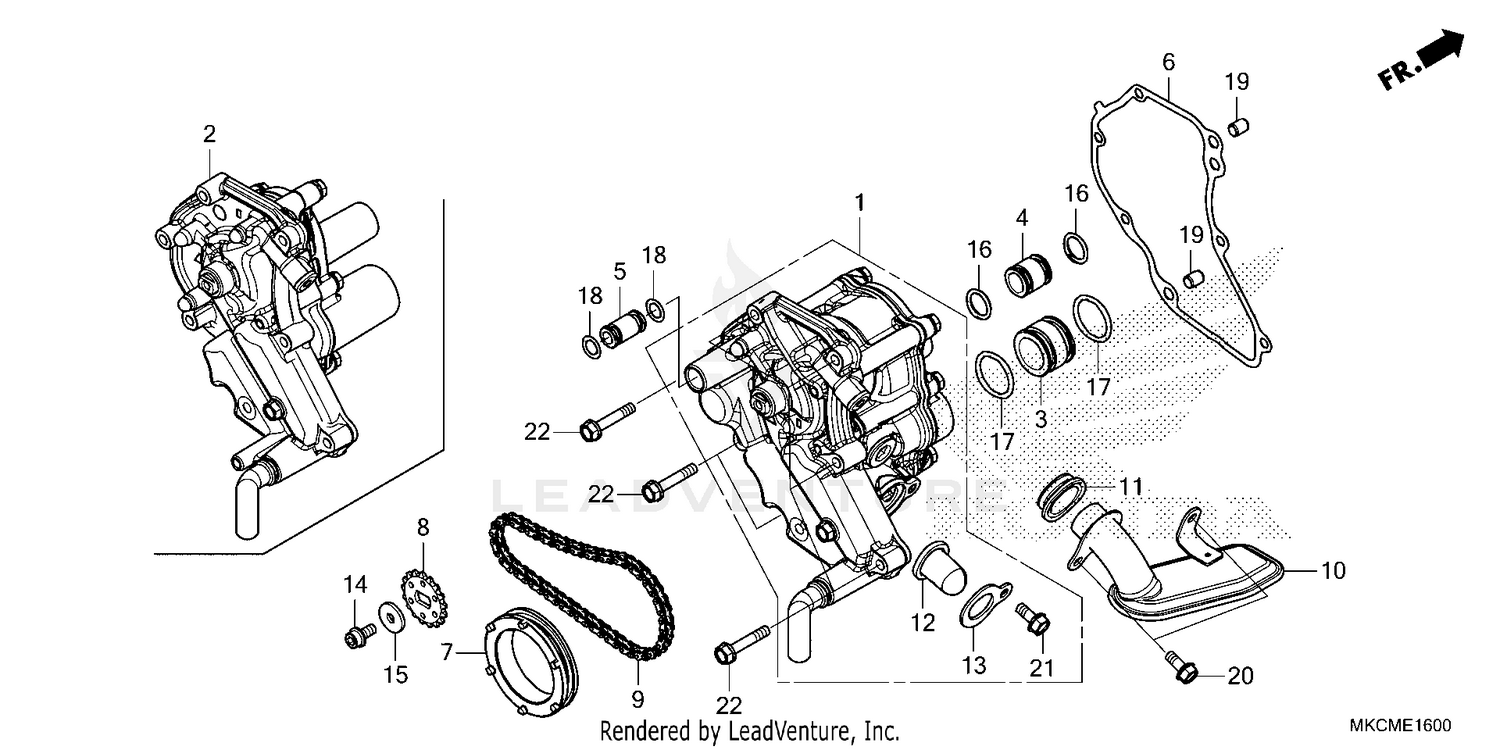

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., OIL
15100-MKC-A00
|
$313.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
JOINT, FEED LINE (IN)
15106-MKC-A00
|
$13.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT, FEED LINE (OUT)
15107-MKC-A00
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT, LINE (DCT)(OUT)
15108-MKC-A00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, OIL PUMP COVER B
15115-MKC-A01
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPROCKET, OIL PUMP DRIVE (31T)
15131-MKC-A01
|
$70.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPROCKET, OIL PUMP DRIVEN (17T)
15134-MKC-A00
|
$47.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
CHAIN, OIL PUMP (DID25H-54L) (54L) (DAIDO)
15135-MCA-003
|
$24.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
STRAINER, OIL
15150-MKC-A00
|
$54.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, OIL STRAINER
15154-MM5-000
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREEN, OIL FILTER
15421-MKC-A00
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, OIL SCREEN SET
15422-MKC-A00
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SOCKET (6X12)
90003-HA0-003
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (6X2.3)
90488-MB0-000
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (14.8X2.4)
91303-MKC-A00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (25X3)
91305-MN1-670
Superseded by 91305-384-750
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (25X3)
91305-384-750
|
$3.55 | ||
|
Unavailable |
|||
|
#18
O-RING (9.8X2.4)
91307-PY3-000
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN A, DOWEL (8X10)
94301-08100
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X14)
95701-06014-08
|
$1.70 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X32) (Honda Code 2105856)
95701-06032-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
