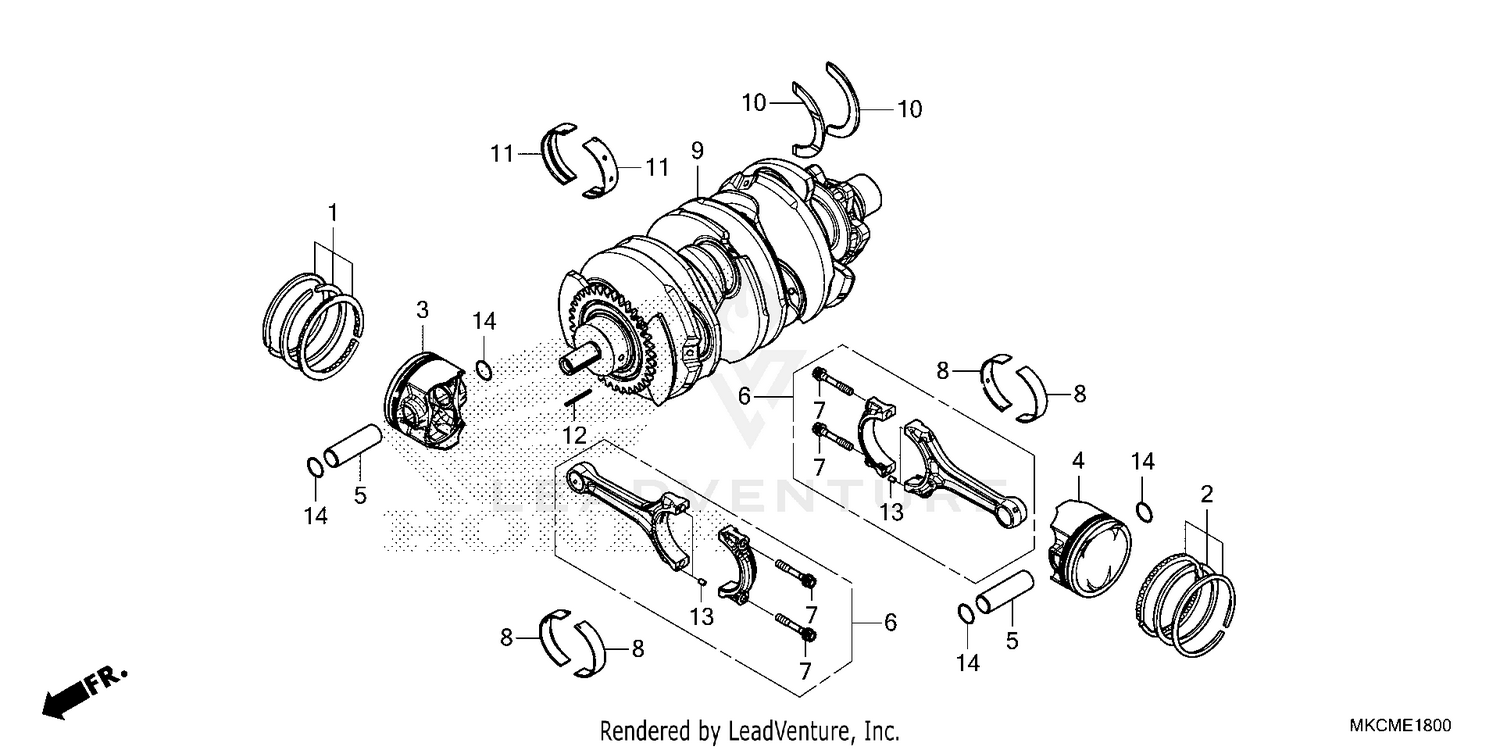

Crankshaft@piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING SET, R. PISTON (STD)
13010-MKC-A00
|
$73.36 | ||
|
Available to order. Add to View Price |
|||
|
#1
RING SET, R. PISTON (0.25)
13011-MKC-A00
|
$70.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, L. PISTON (STD)
13015-MKC-A00
|
$73.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, L. PISTON (0.25)
13016-MKC-A00
|
$70.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON, R. (STD)
13101-MKC-A00
|
$122.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON, R. (0.25)
13103-MKC-305
|
$117.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON, L. (STD)
13102-MKC-A00
|
$122.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON, L. (0.25)
13107-MKC-305
|
$117.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, PISTON
13111-KCZ-000
|
$21.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD ASSY., CONNECTING
13210-MKC-A00
|
$297.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, CONNECTING ROD
13213-MKC-A01
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING A, CONNECTING ROD (BLUE)
13214-MKC-A01
|
$14.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING B, CONNECTING ROD (BLACK)
13215-MKC-A01
|
$14.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING C, CONNECTING ROD (BROWN)
13216-MKC-A01
|
$14.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING D, CONNECTING ROD (GREEN)
13217-MKC-A01
|
$14.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING E, CONNECTING ROD (YELLOW)
13218-MKC-A01
|
$14.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
CRANKSHAFT ASSY.
13300-MKC-A01
|
$2,009.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING, THRUST
13312-MN5-003
|
$20.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING A, CRANKSHAFT (BLUE)
13313-MKC-A01
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING B, CRANKSHAFT (BLACK)
13314-MKC-A01
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING C, CRANKSHAFT (BROWN)
13315-MKC-A01
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING D, CRANKSHAFT (GREEN)
13316-MKC-A01
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING E, CRANKSHAFT (YELLOW)
13317-MKC-A01
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
KEY (2X2X30)
90701-MCA-010
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, DOWEL (3X5)
94303-03050
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP, PISTON PIN (17MM)
94601-17000
|
$1.72 | ||
|
Available to order. Add to View Price |
|||
