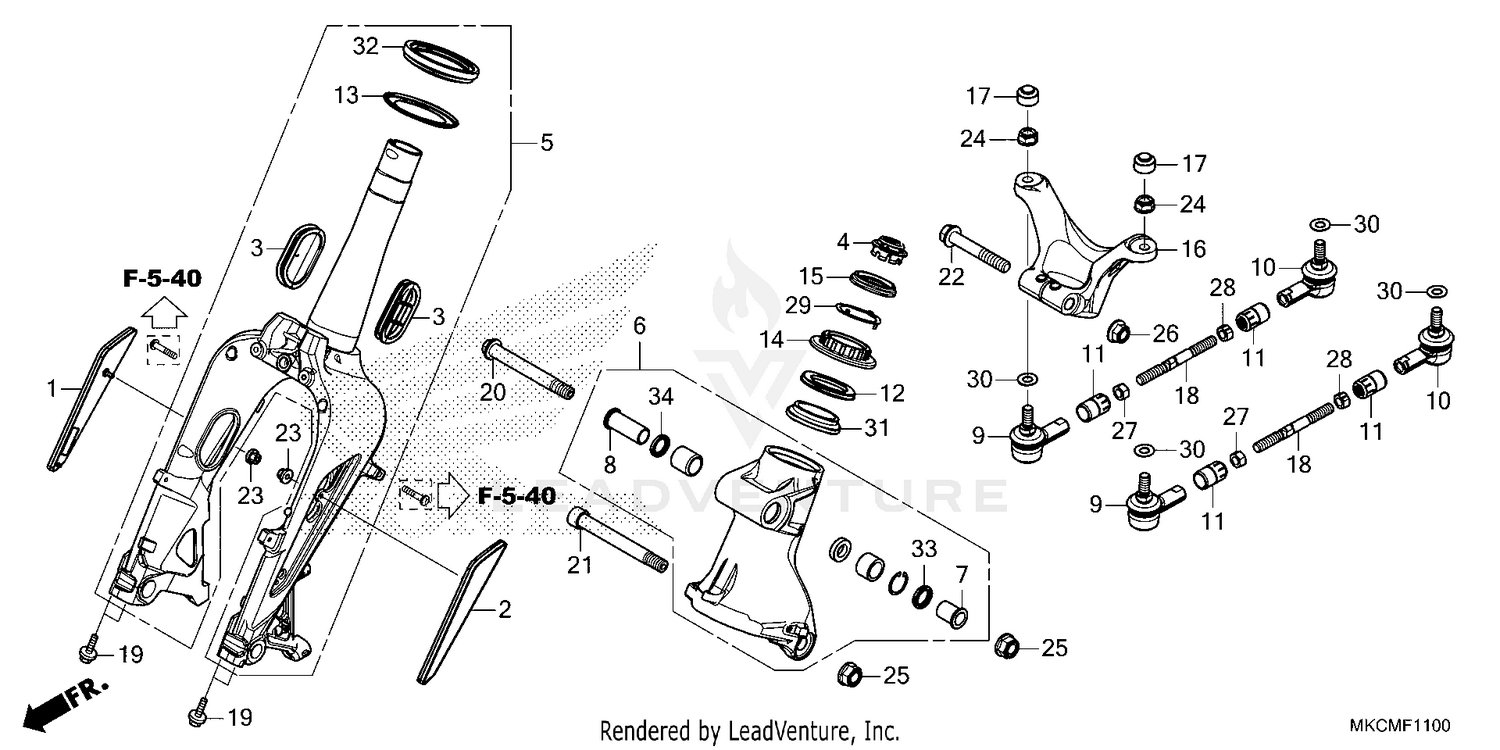

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REFLECTOR, R. FR. REFLEX
33741-MKC-A05
|
$61.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
REFLECTOR, L. FR. REFLEX
33742-MKC-A05
|
$61.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET, FR. FORK
51114-MKC-A00
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, STEM PIPE
51117-MKC-A00
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
FORK SUB-ASSY., FR. (TYPE3)
51119-MKC-A00ZC
|
$1,428.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER ASSY., FR. FORK (TYPE3)
51200-MKC-A00ZC
|
$405.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, L. PIVOT DISTANCE
51365-MKC-A00
|
$15.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR B, R. PIVOT DISTANCE
51366-MKC-A00
|
$21.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
END, R. TIE ROD (RIGHT HAND THREAD)
53157-MKC-A01
|
$57.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
END, L. TIE ROD (LEFT HAND THREAD)
53158-MKC-A01
|
$57.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, TIE ROD
53159-MKC-A00
|
$16.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUST SEAL (UPPER)
53214-MKC-A01
|
$16.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
DUST SEAL (LOWER)
53215-MKC-A01
|
$22.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
THREAD, STEERING HEAD TOP
53220-MKC-A00
|
$44.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL, FR. FORK
53233-MKC-A00
|
$10.51 | ||
|
Available to order. Add to View Price |
|||
|
#16
ARM, STEERING
53240-MKC-A00
|
$158.96 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP, NUT
53242-MKC-A00
|
$11.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
TIE ROD, STEERING
53521-MKC-A00
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (8X45)
90134-MEL-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEAD PIPE PIVOT (UPPER)
90174-MKC-A00
|
$32.87 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEAD PIPE PIVOT (LOWER)
90175-MKC-A00
|
$35.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (12X78)
90176-MKC-A00
|
$9.33 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, FLANGE (5MM) (FUSE RASHI)
90301-MG8-000
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, U (10MM) NUT, SELF-LOCK (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT, SPECIAL U (16MM)
90305-MCB-610
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, U FLANGE (12MM)
90306-KV6-911
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT A, HEX. (10MM)
90311-MKC-A00
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT B, HEX. (10MM) (LH)
90315-MKC-A00
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, LOCK
90502-MKC-A00
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER (10X20X1.0)
90504-MKC-A00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, HEAD PIPE (UPPER)
91061-MKC-A01
|
$44.62 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING, HEAD PIPE (LOWER)
91062-MKC-A01
|
$103.58 | ||
|
Available to order. Add to View Price |
|||
|
#33
OIL SEAL (22X30X5)
91253-HL1-A01
|
$7.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
DUST SEAL (22X29X4) (ARAI)
91283-ML7-003
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
