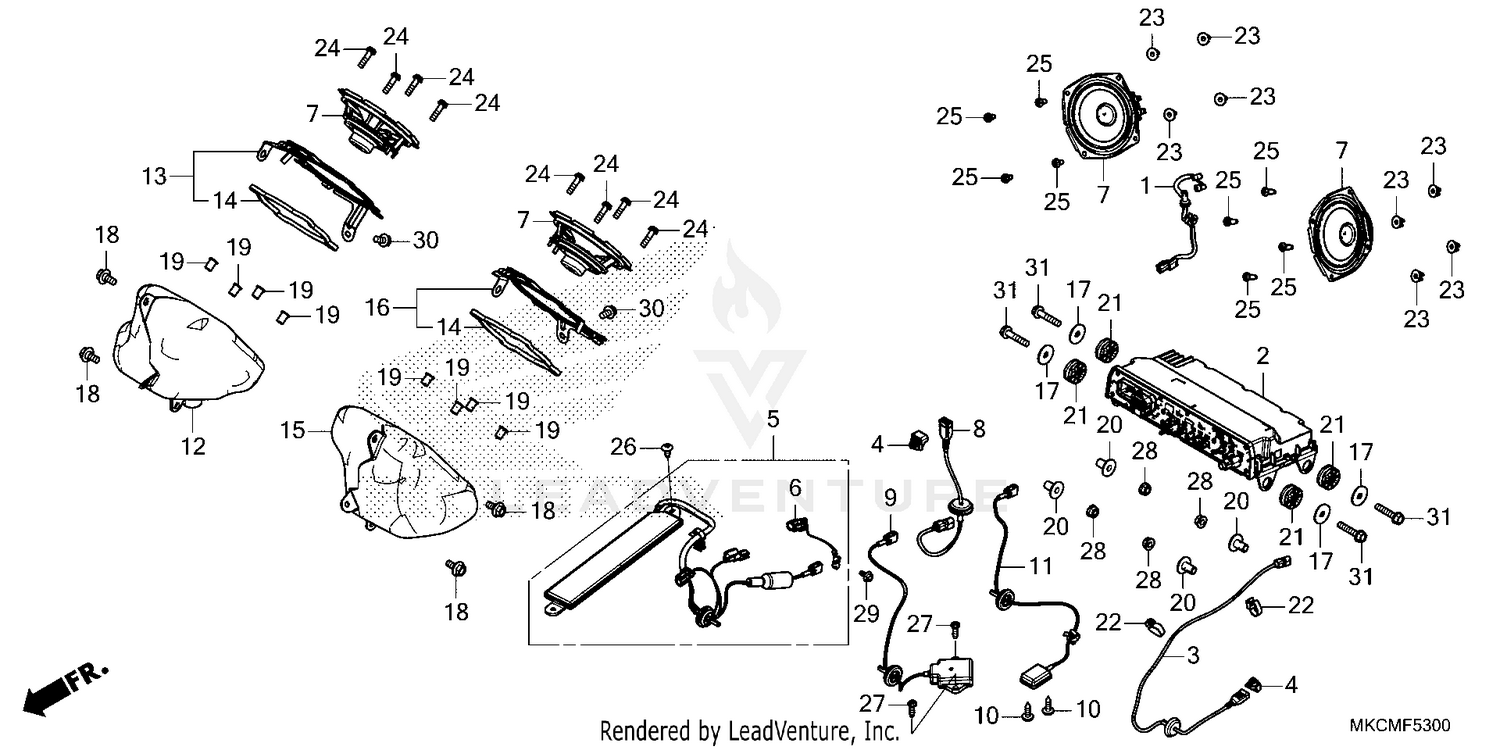

Audio Unit Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SUB-HARNESS, SPEAKER
32145-MKC-L80
|
$35.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
AUDIO SET (NOT AVAILABLE)
39011-MKC-L80
Superseded by 39011-MLJ-A00
|
$5,226.93 | ||
|
Unavailable |
|||
|
#3
CORD ASSY., USB
39115-MKC-A01
|
$58.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP, USB CONNECTOR HOLDER (A) (L. SIDE ONLY)
39115-TK6-003
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
ANTENNA ASSY., RADIO
39150-MKC-A01
|
$226.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUB-HARNESS, RADIO ANTENNA GROUND
39151-MKC-A01
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPEAKER UNIT (NOT AVAILABLE)
39160-MKC-A01
|
$235.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
ANTENNA ASSY., BLUETOOTH (RR)
39213-MKC-A01
|
$99.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN (3X6)
39221-MCA-S51
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
ANTENNA ASSY., GPS
39230-MKC-A01
|
$246.64 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOX, R. SPEAKER
64181-MKC-A00
|
$79.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, R. SPEAKER BOX
64183-MKC-A00
|
$33.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION, SPEAKER
64184-MKC-A00
|
$20.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOX, L. SPEAKER
64191-MKC-A00
|
$75.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, L. SPEAKER BOX
64193-MKC-A00
|
$33.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SEAT MOUNTING
77302-124-000
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6MM)
90111-162-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, COWL SETTING (5MM)
90111-KW3-003
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR (6.3X14)
90503-MKC-A00
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#21
RUBBER, AUDIO MOUNT
90505-MKC-A00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND, WIRE (Honda Code 2687788)
90650-KV6-003
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#23
GROMMET, SCREW (5MM)
90661-SJ8-003
|
$3.35 | ||
|
Unavailable |
|||
|
#24
SCREW-WASHER (5X20)
93892-05020-07
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, TAPPING (5X12)
93901-25280
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, TAPPING (5X12)
93903-25210
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SCREW, TAPPING (5X16)
93903-25310
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)
95701-06010-00
|
$1.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X30)
95801-06030-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
