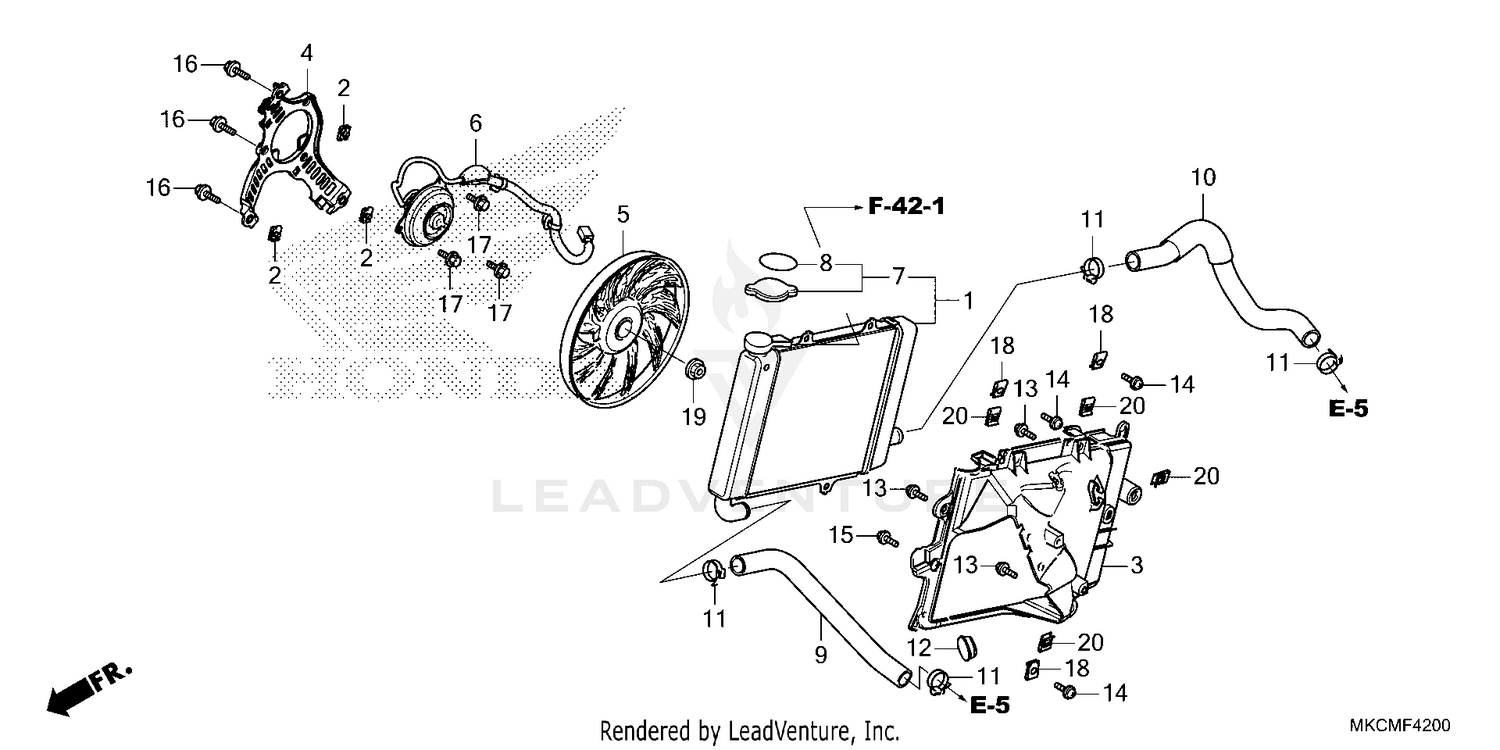

Radiator (r.) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR, R.
19010-MKC-A01
|
$689.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT, SETTING (6MM)
19014-KEA-003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
AIR GUIDE, R. RADIATOR
19015-MKC-A00
|
$82.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHROUD
19016-MKC-A01
|
$60.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
FAN, COOLING
19020-MJN-A01
|
$57.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
MOTOR ASSY., R. FAN
19030-MKC-A01
|
$322.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, RADIATOR
19037-GEE-710
|
$36.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
LABEL, RADIATOR CAP
19046-PAA-A00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, R. FR. RADIATOR
19501-MKC-A00
|
$20.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, R. RR. RADIATOR
19503-MKC-A00
|
$23.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP B, WATER HOSE
19506-KS6-700
|
$9.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, MAIN STAND PIPE
50750-MB0-000
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SOCKET (6X18)
90001-KWR-000
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SPECIAL (6X15)
90114-MGE-D00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, SPECIAL (5X15)
90114-MKC-A00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT-WASHER (6X16)
90120-KCR-003
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (5X10)
90196-MBB-003
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, CLIP (6MM)
90201-KPR-901
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SERRATE (5MM)
90315-MK3-003
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, CLIP (5MM)
90677-KAN-961
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
