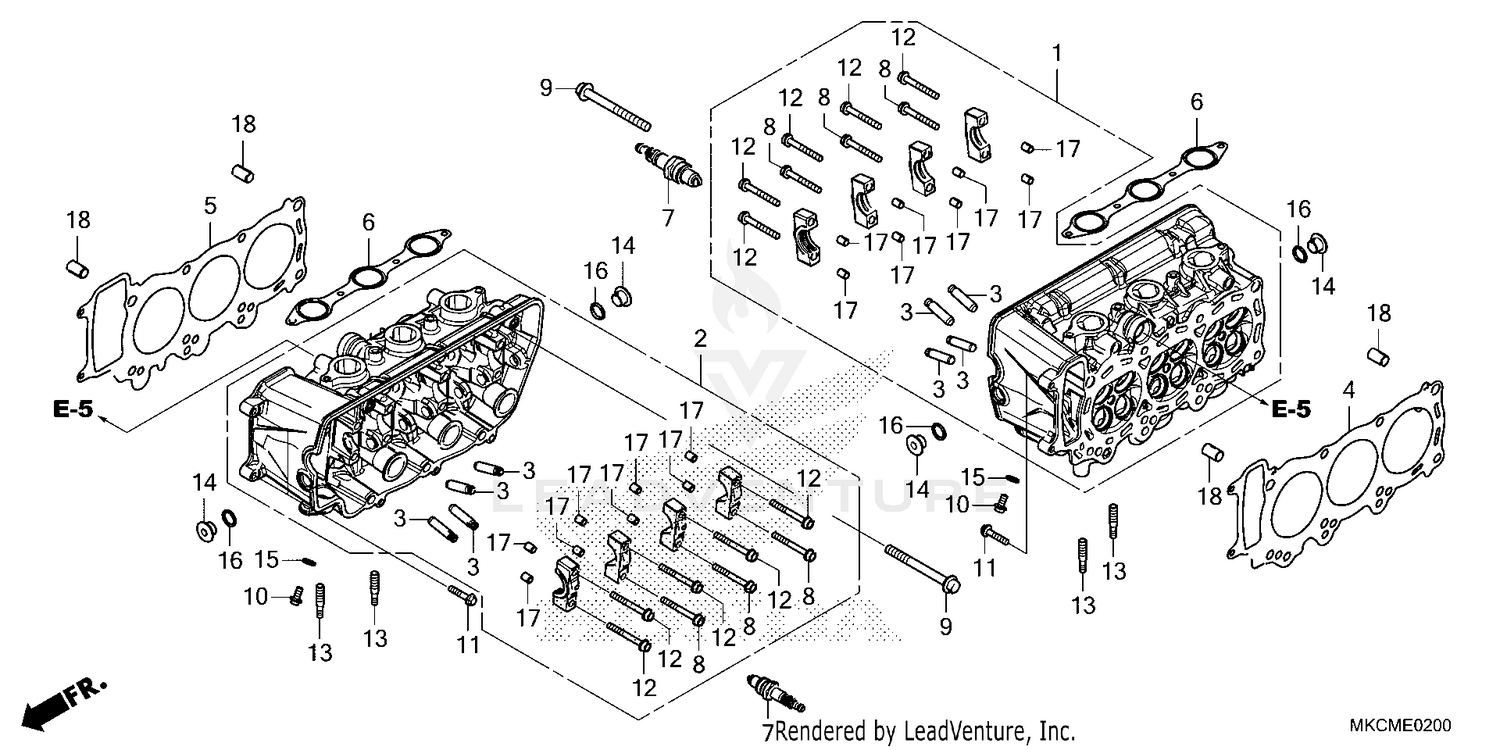

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD, R
12010-MKC-W40
Superseded by 12010-MKC-W41
|
$1,246.38 | ||
|
Unavailable |
|||
|
#2
CYLINDER HEAD ASSY., L.
12020-MKC-W40
|
$1,246.38 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE (OVER SIZE)
12204-MKC-305
|
$22.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, R. CYLINDER HEAD
12251-MKC-A01
|
$91.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, L. CYLINDER HEAD
12261-MKC-A01
|
$91.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, IN. MANIFOLD
17134-MKC-A01
|
$24.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPARK PLUG (CR6HSB-9) (NGK)
31917-MKC-A01
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X52)
90003-MKC-A00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (9X89)
90012-MCA-000
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X12) (NSHF)
90017-GHB-610
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X28) (NSHF)
90017-GHB-680
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X48) (Honda Code 0717256)
90018-425-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, STUD (8-6X40)
90035-MKC-A00
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP (14MM)
90084-MN8-010
|
$15.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SEALING (6MM)
90441-706-000
|
$1.46 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (13.8X2.5)
91303-377-000
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN A, DOWEL (8X10)
94301-08100
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN A, DOWEL (12X20)
94301-12200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
