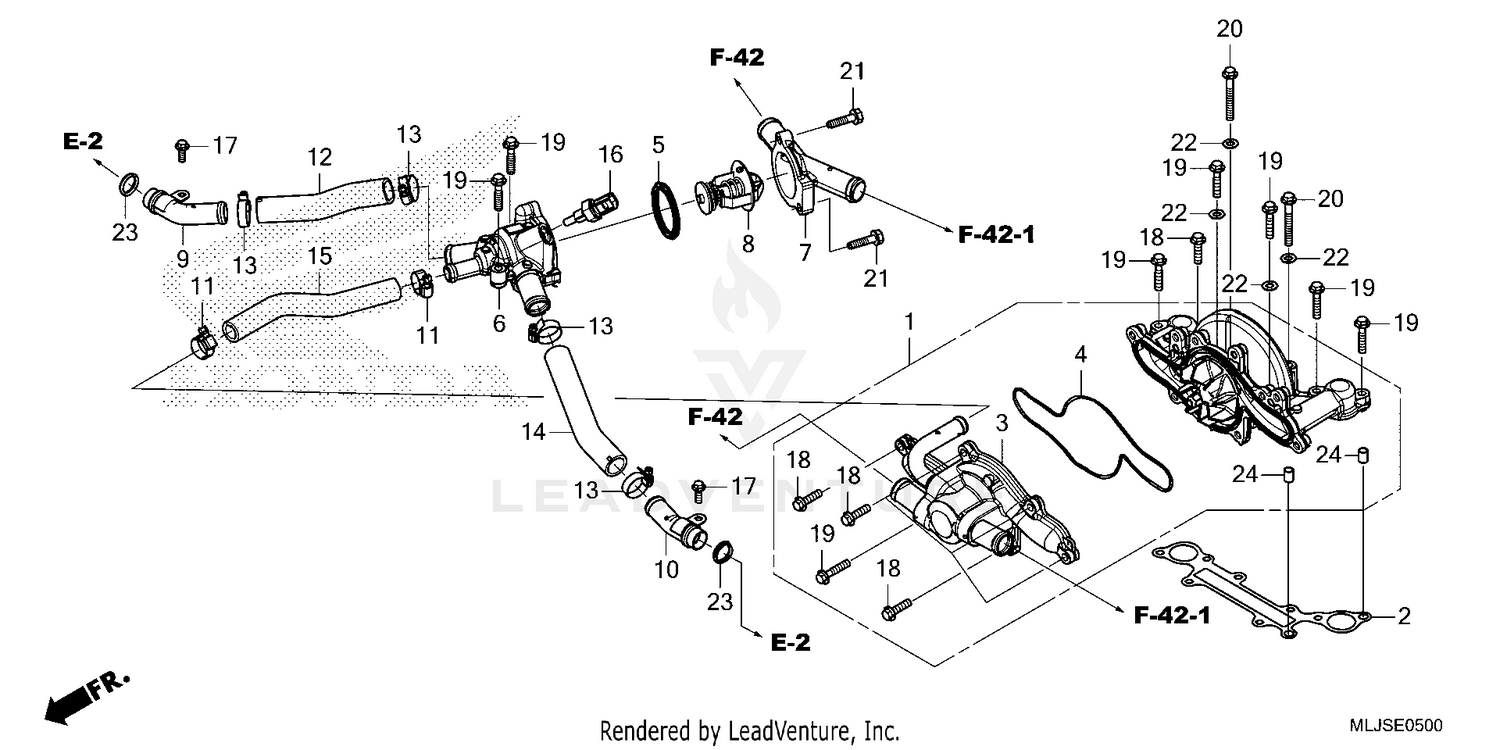

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WATER PUMP ASSY.
19200-MKC-305
|
$562.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, WATER PUMP BODY
19216-MKC-A01
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, WATER PUMP
19220-MKC-A00
|
$173.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, WATER PUMP COVER
19226-MKC-A00
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, THERMOSTAT
19305-KV3-010
|
$7.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CASE, THERMOSTAT
19310-MKC-305
|
$149.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, THERMOSTAT
19315-MKC-A00
|
$74.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
THERMOSTAT
19320-MKF-D41
|
$80.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE, R. WATER
19411-MKC-A00
|
$38.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE, L. WATER
19421-MKC-A00
|
$38.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, WATER HOSE (A)
19505-KS6-700
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE, R. HEAD
19505-MKC-A00
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP B, WATER HOSE
19506-KS6-700
|
$9.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE, L. HEAD
19506-MKC-A00
|
$10.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE, BYPASS (BOTTOM)
19507-MKC-A00
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#16
SENSOR ASSY., WATER TEMPERATURE
37870-MGS-D31
|
$60.36 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X16) (NSHF)
90017-GHB-630
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X22) (NSHF)
90017-GHB-660
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X28) (NSHF)
90017-GHB-680
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X45) (NSHF)
90017-GHB-720
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X23) (CT200)
90018-MKC-A00
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SEALING (6MM)
90488-425-000
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAL, WATER PIPE (22.5MM)
91316-MKC-A01
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN A, DOWEL (8X10)
94301-08100
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
